Retractable Hard Top System
>>
System Diagram
System Diagram
SYSTEM

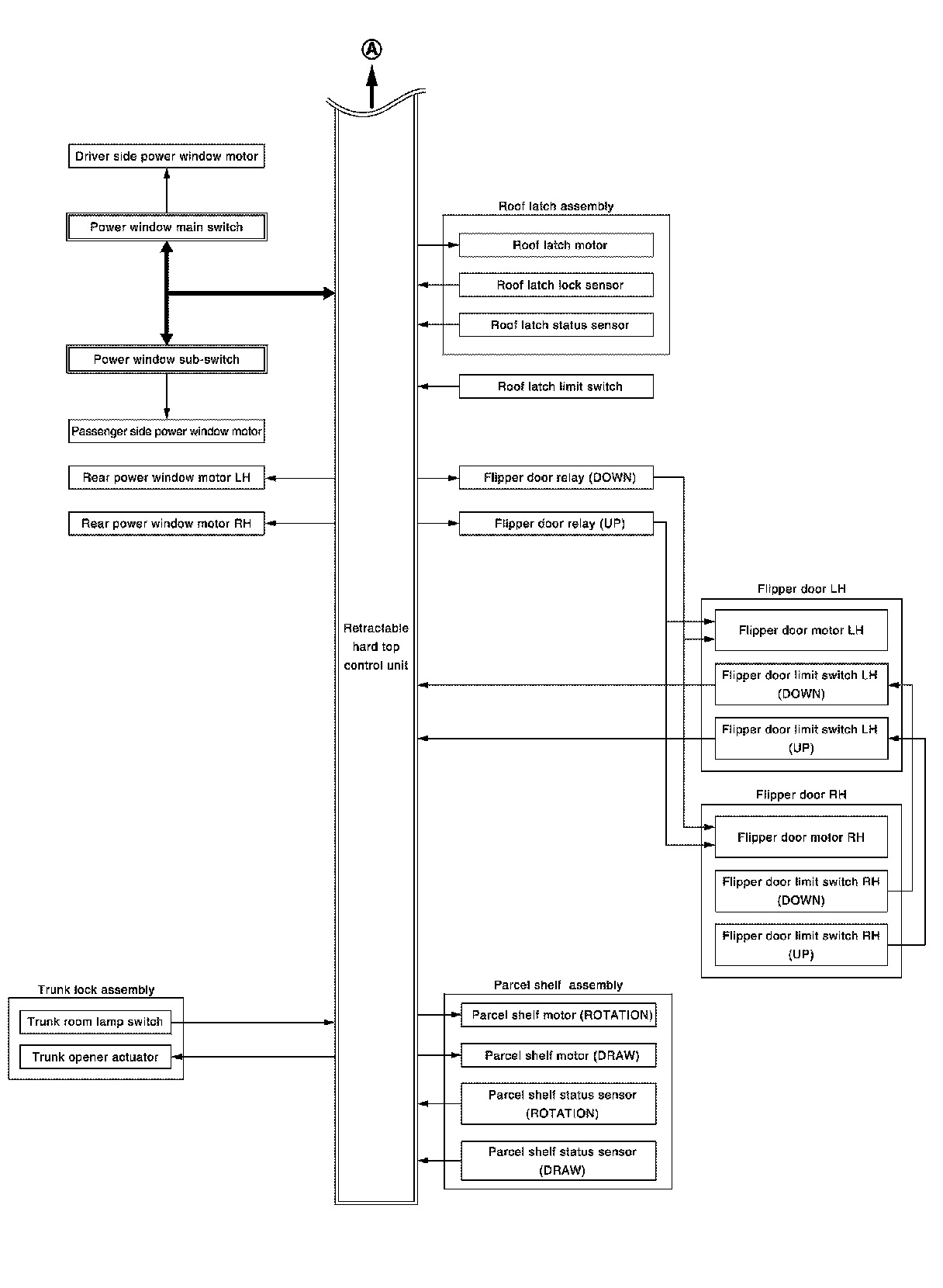

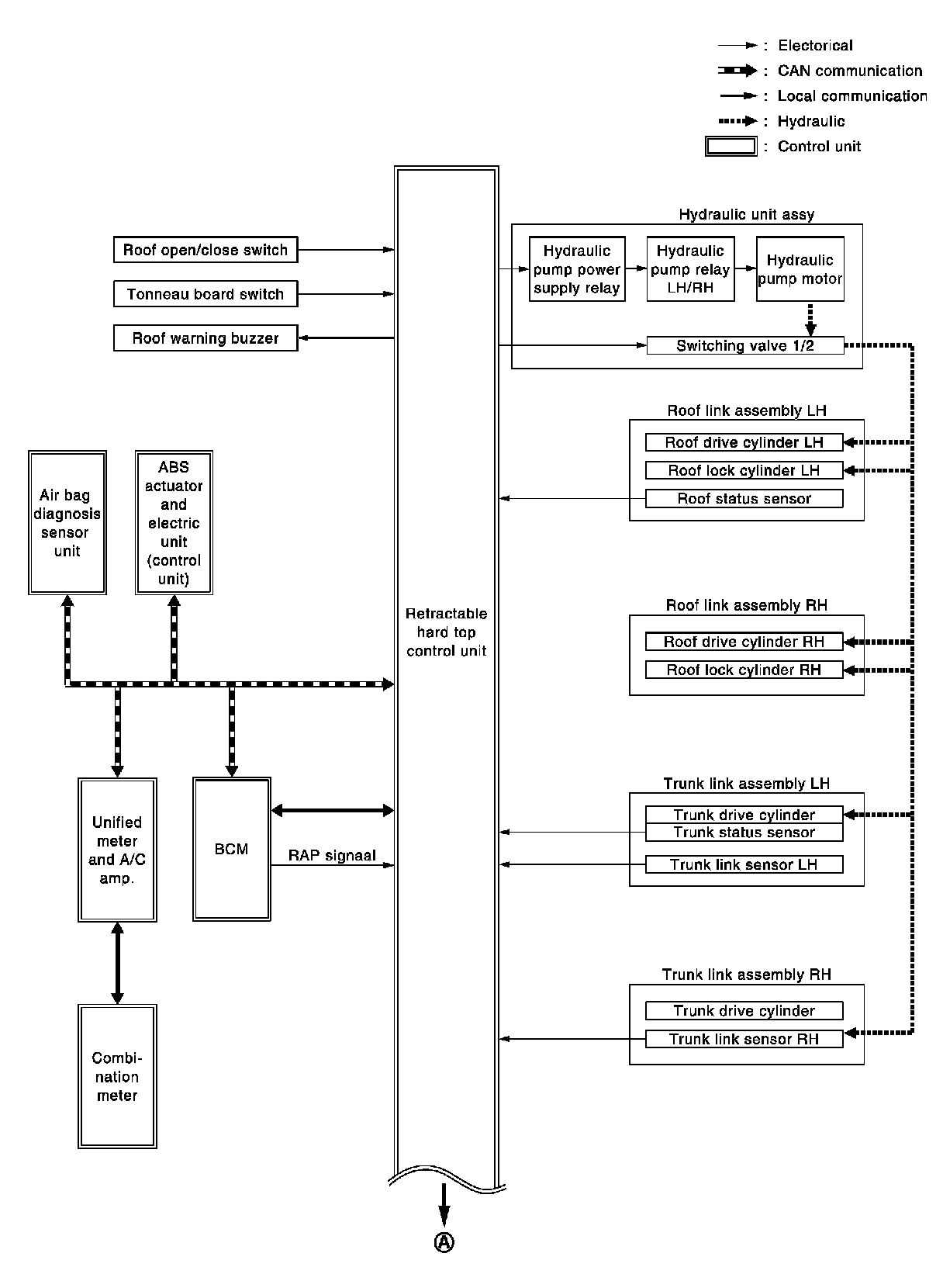

RETRACTABLE HARD TOP SYSTEM : System Diagram
