System Description

SYSTEM

PARCEL SHELF FUNCTION : System Description


SYSTEM DESCRIPTION

Parcel shelf is installed in trunk room and integrates parcel shelf motor (rotation) and parcel shelf motor (draw). During sequential operations of retractable hard top system, parcel shelf motor (rotation) rotates parcel shelf board, parcel shelf motor (draw) draws parcel shelf board, and open and close operations of retractable hard top system are performed interlocking with other retractable hard top system components than parcel self.
Retractable hard top control unit recognizes the rotation position of parcel shelf by parcel shelf status sensor (rotation) in parcel shelf motor (rotation), up and down positions of parcel shelf by parcel shelf status sensor (draw) in parcel shelf motor (draw).

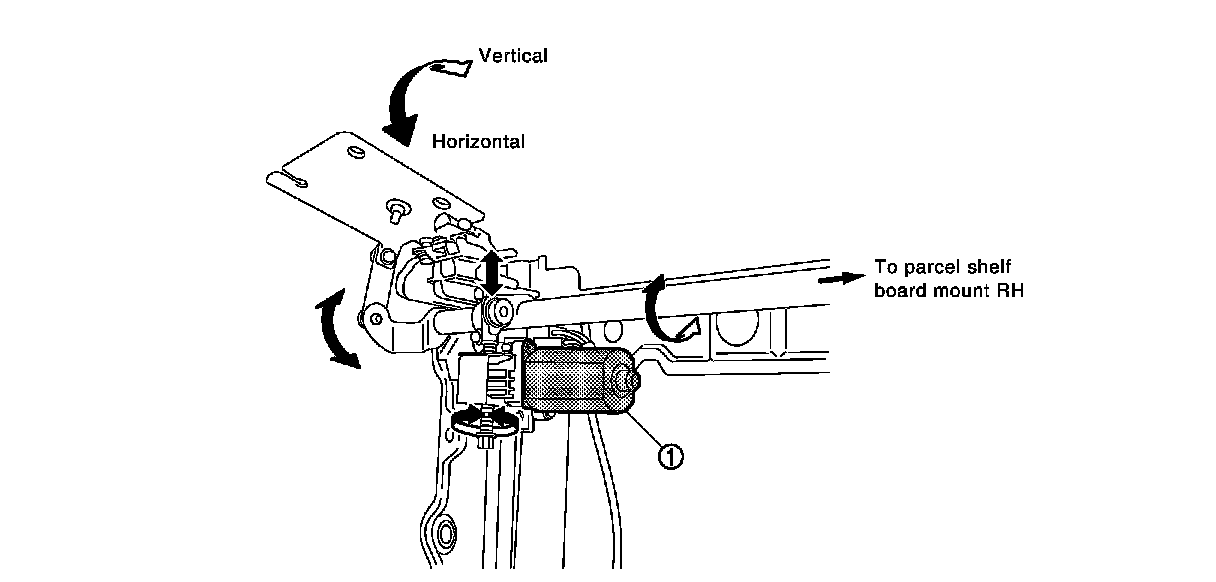

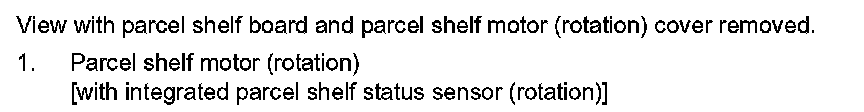

Parcel Shelf Structure/Rotation

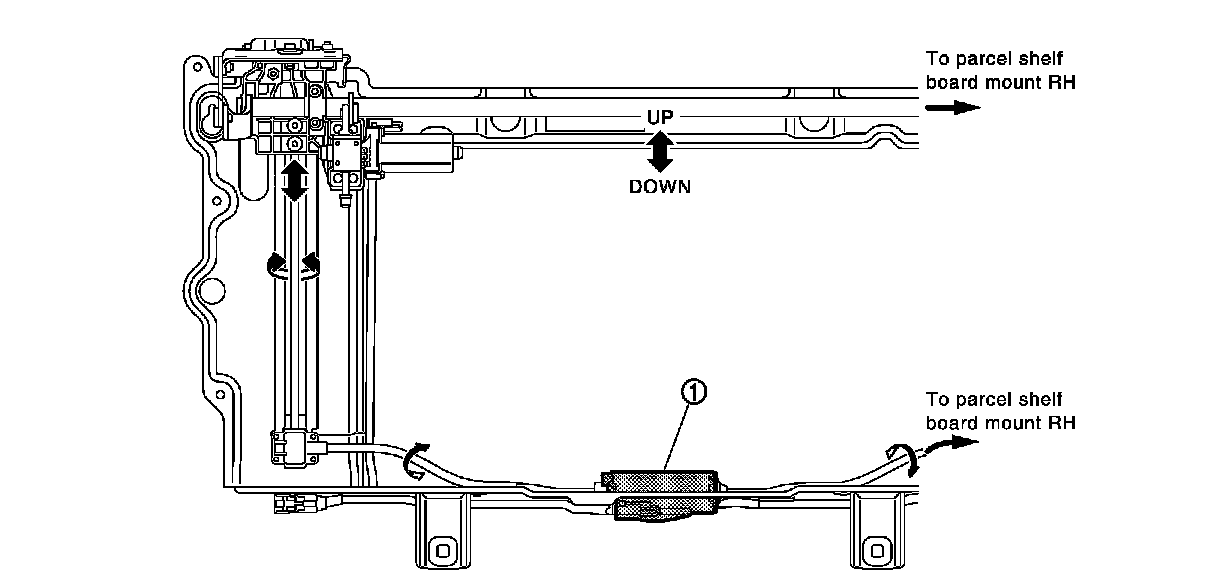

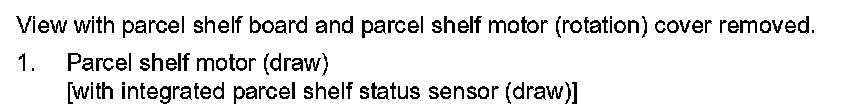

Parcel Shelf Structure/Draw











SEQUENCE OF PARCEL SHELF

There are 4 rotation operation states and 6 draw operation states in parcel shelf. Open and close operations of retractable hard tops are performed interlocking with other retractable hard top system components. (For interlocking with other components, System Description.)
Parts state (CONSULT-III display) according to sequential parcel shelf operations is as shown in the following table.

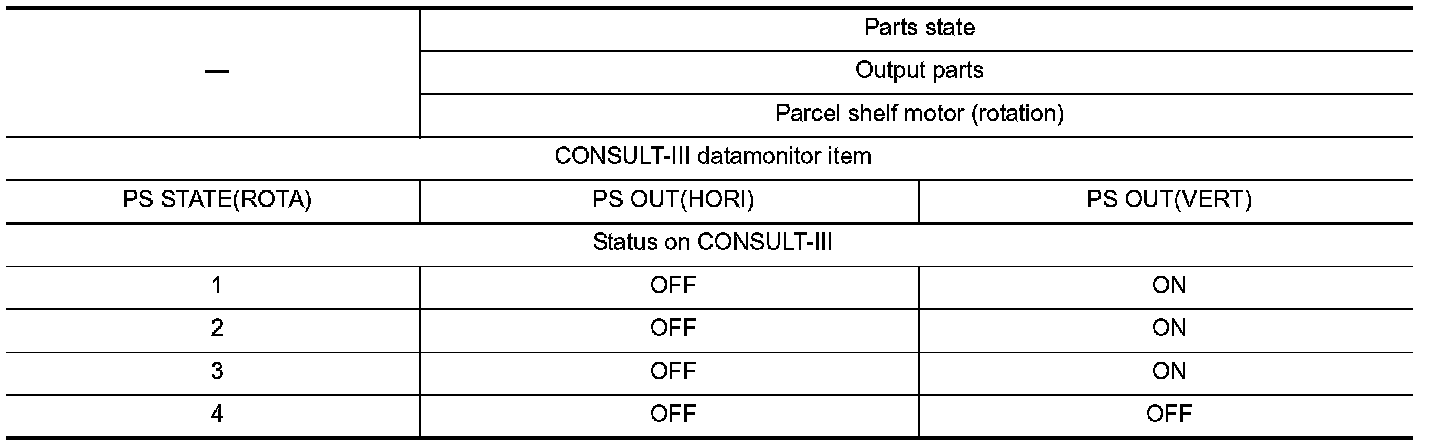

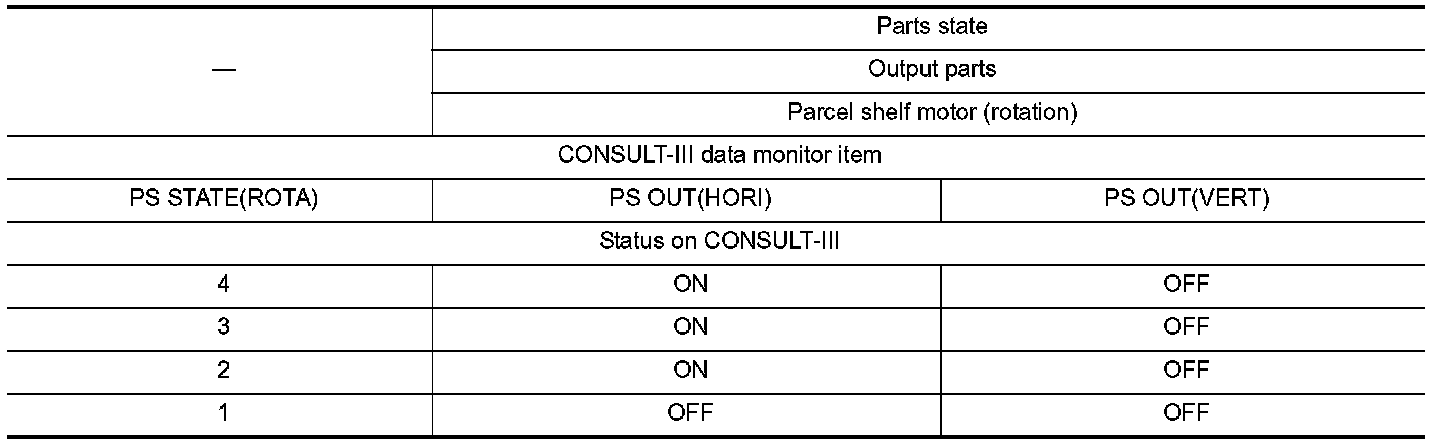

Rotation Operation/Vertical

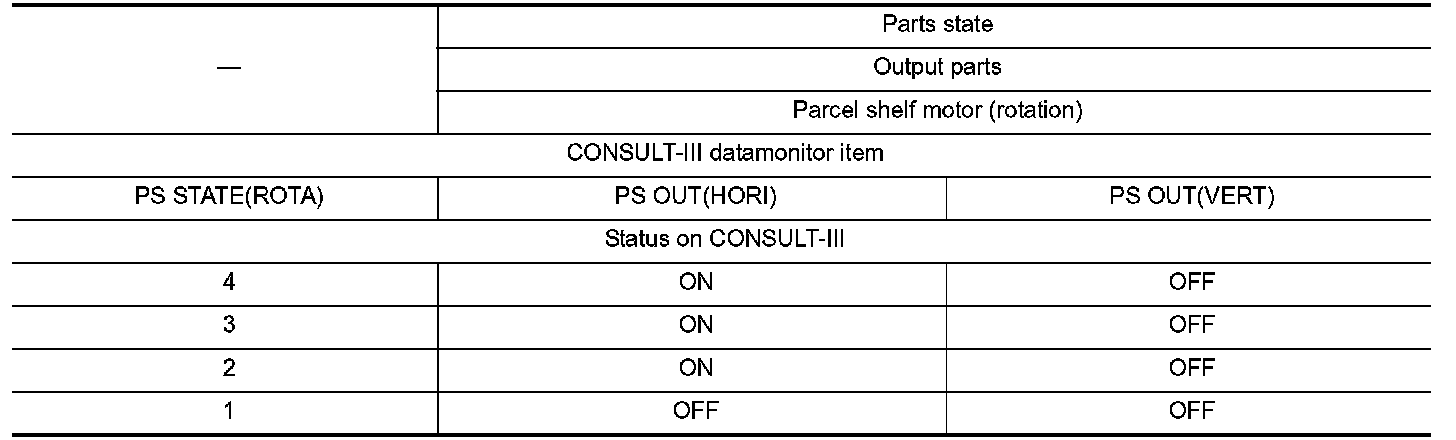

Rotation Operation/Horizontal

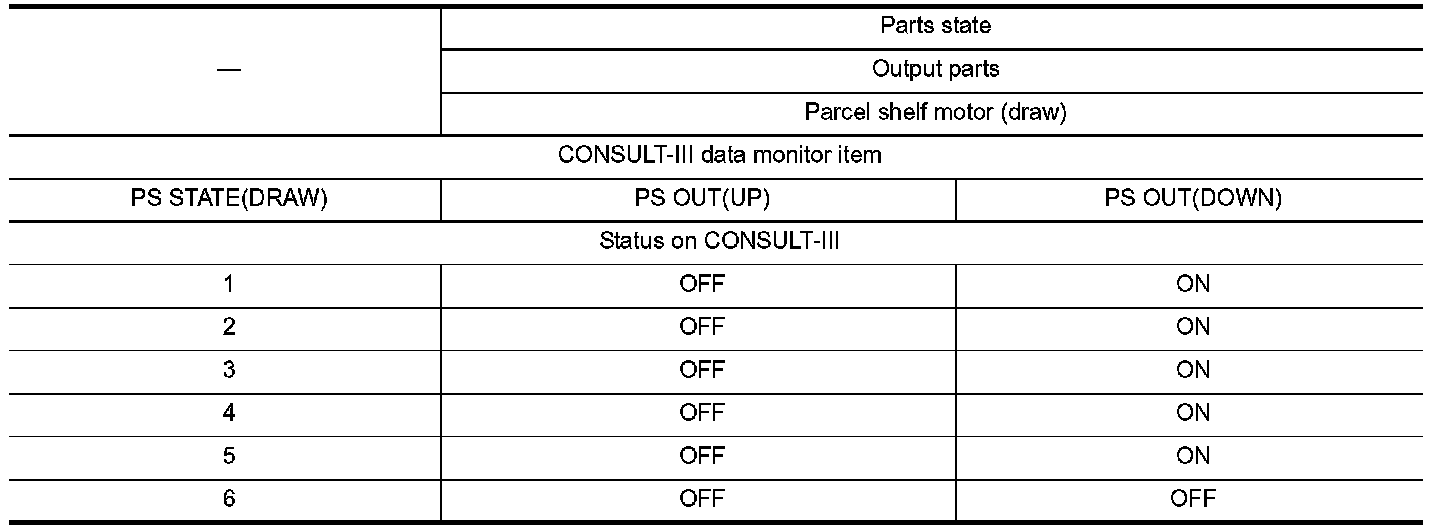

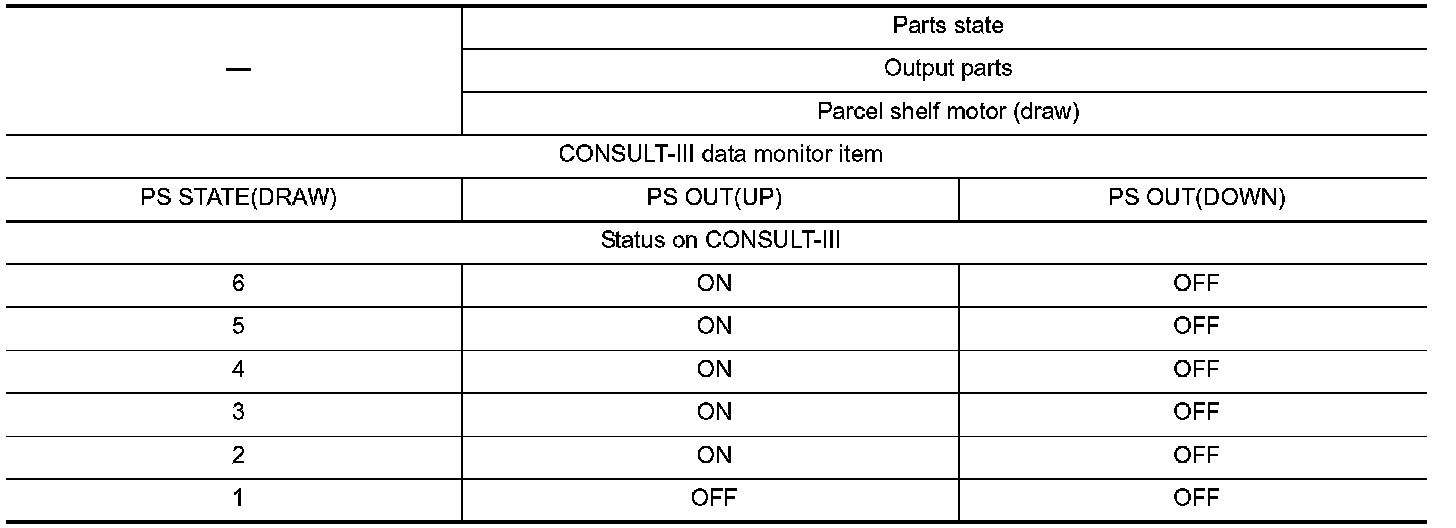

Draw Operation/Down

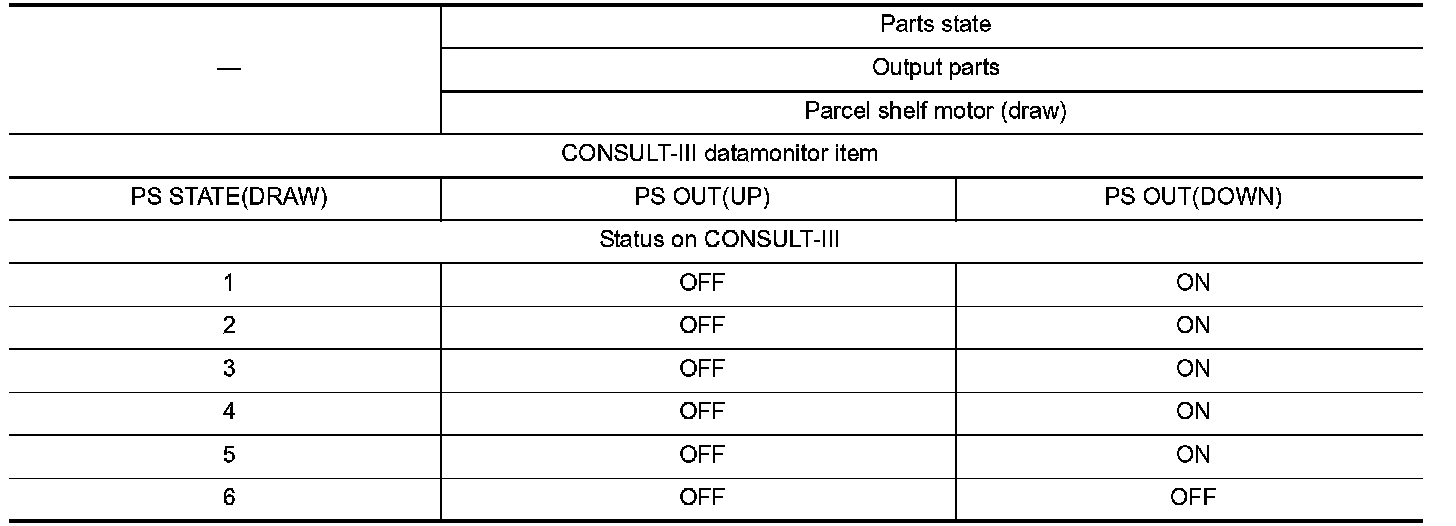

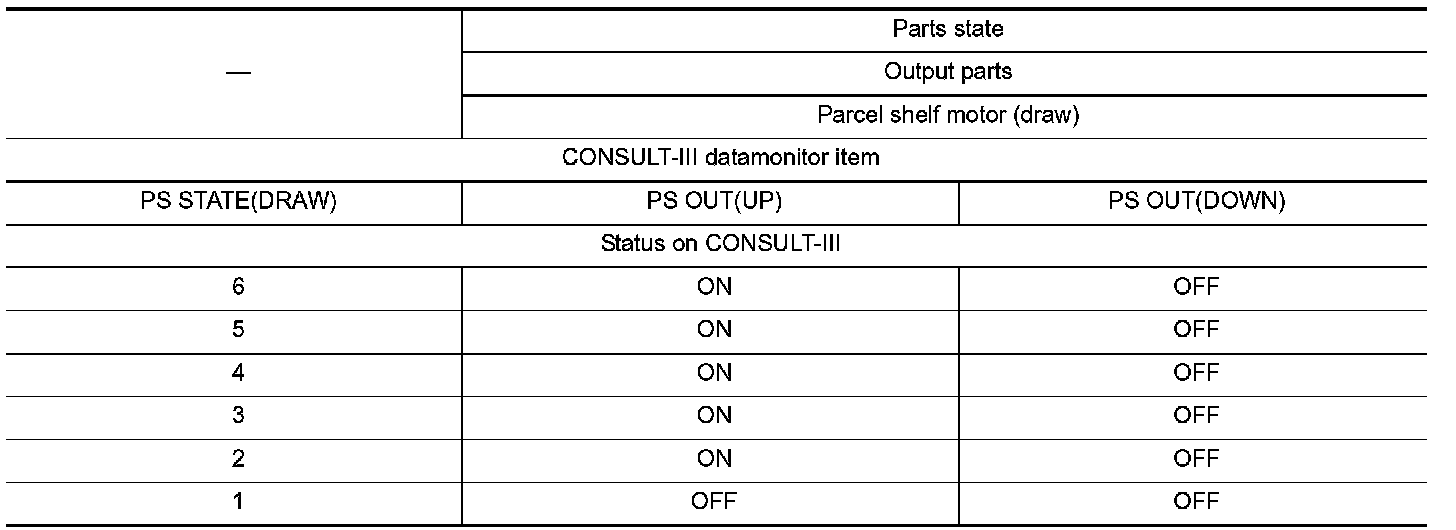

Draw Operation/Up
