Door Mirror System

DOOR MIRROR SYSTEM

Component Inspection


1. CHECK DOOR MIRROR REMOTE CONTROL SWITCH

1.Turn ignition switch OFF.
2.Disconnect door mirror remote control switch connector.
3.Check door mirror remote control switch.

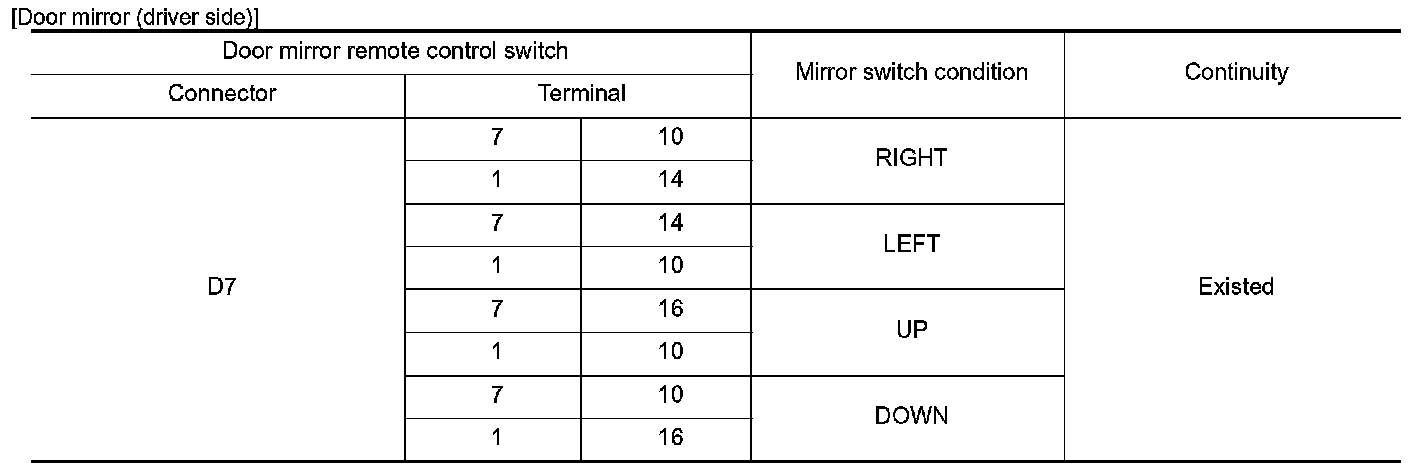

[Door mirror (driver side)]

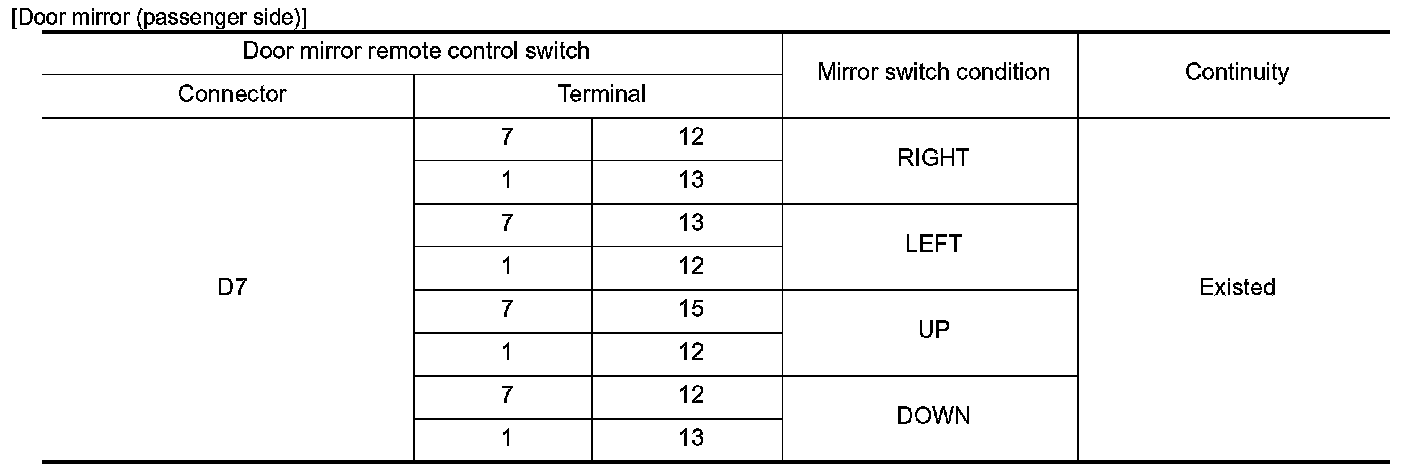

[Door mirror (passenger side)]





Is the inspection result normal?
YES- INSPECTION END.
NO- Replace door mirror remote control switch.Removal and Installation.
