G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Service and Repair
>>
Glass Mirror
>>

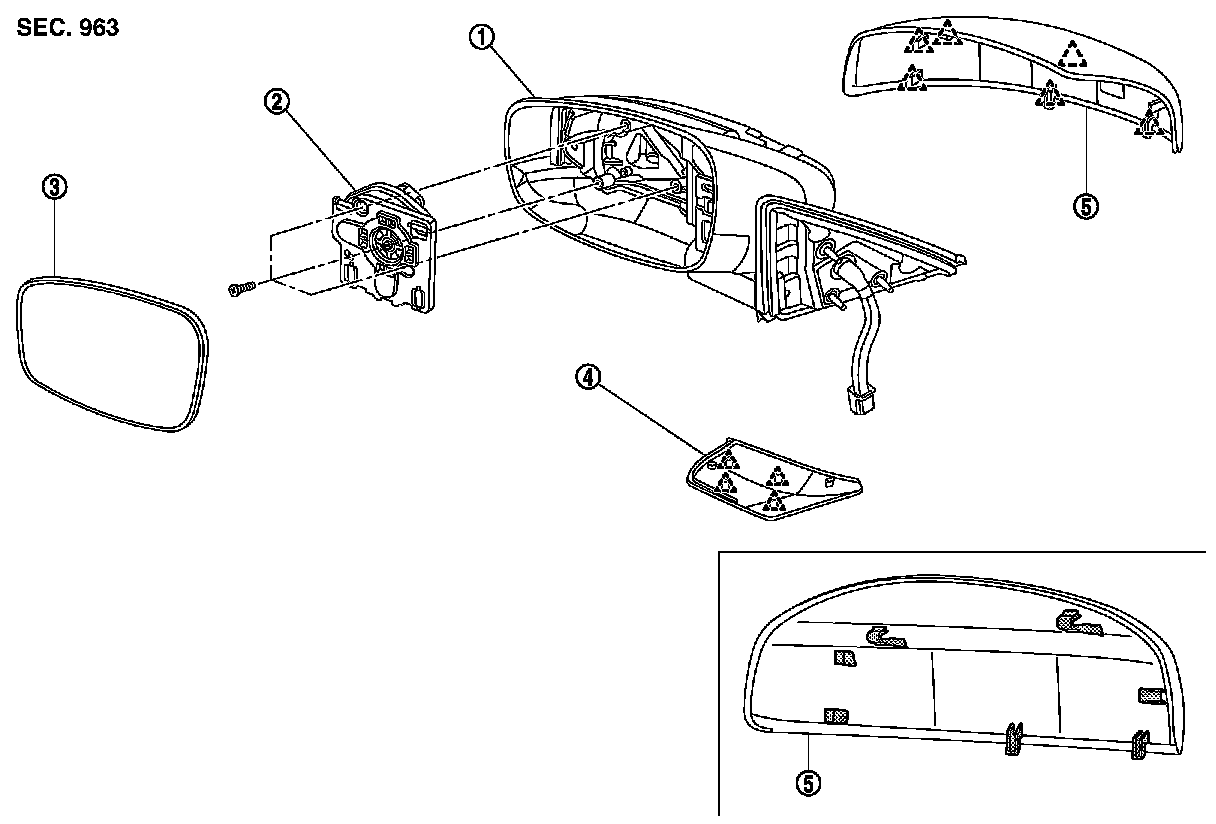

Exploded View
Exploded View
DOOR MIRROR

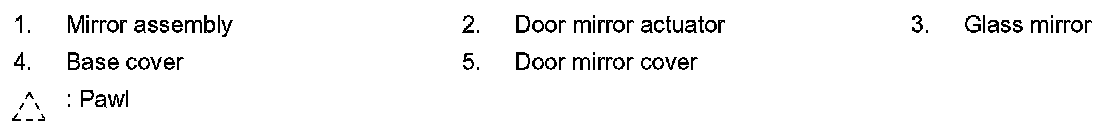

GLASS MIRROR : Exploded View
DISASSEMBLY
