ADP Control Unit




AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Reference Value

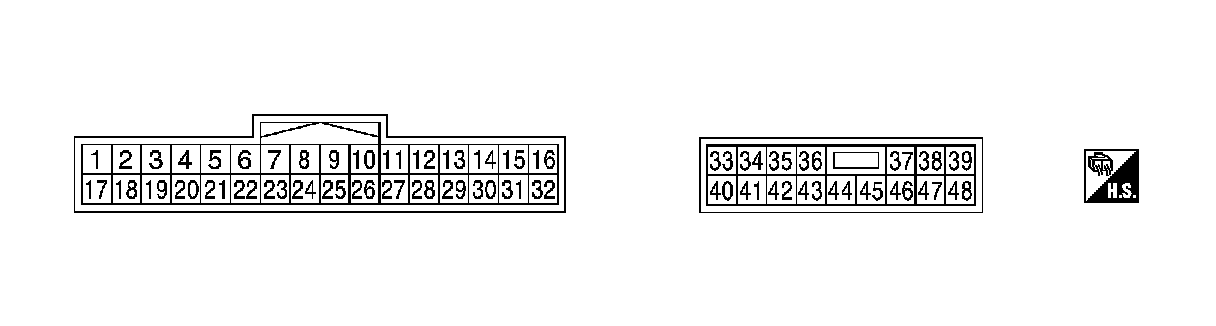

TERMINAL LAYOUT

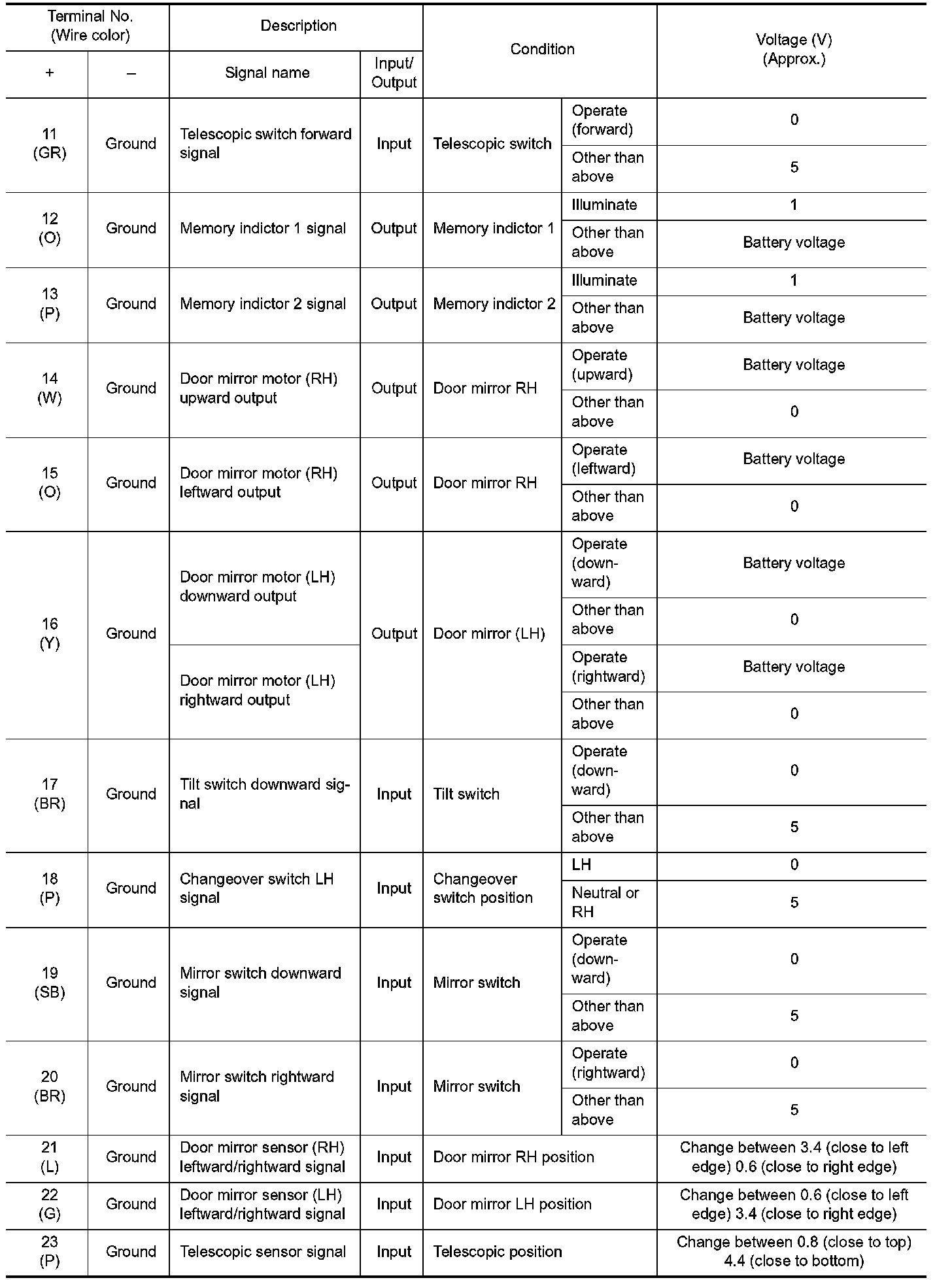

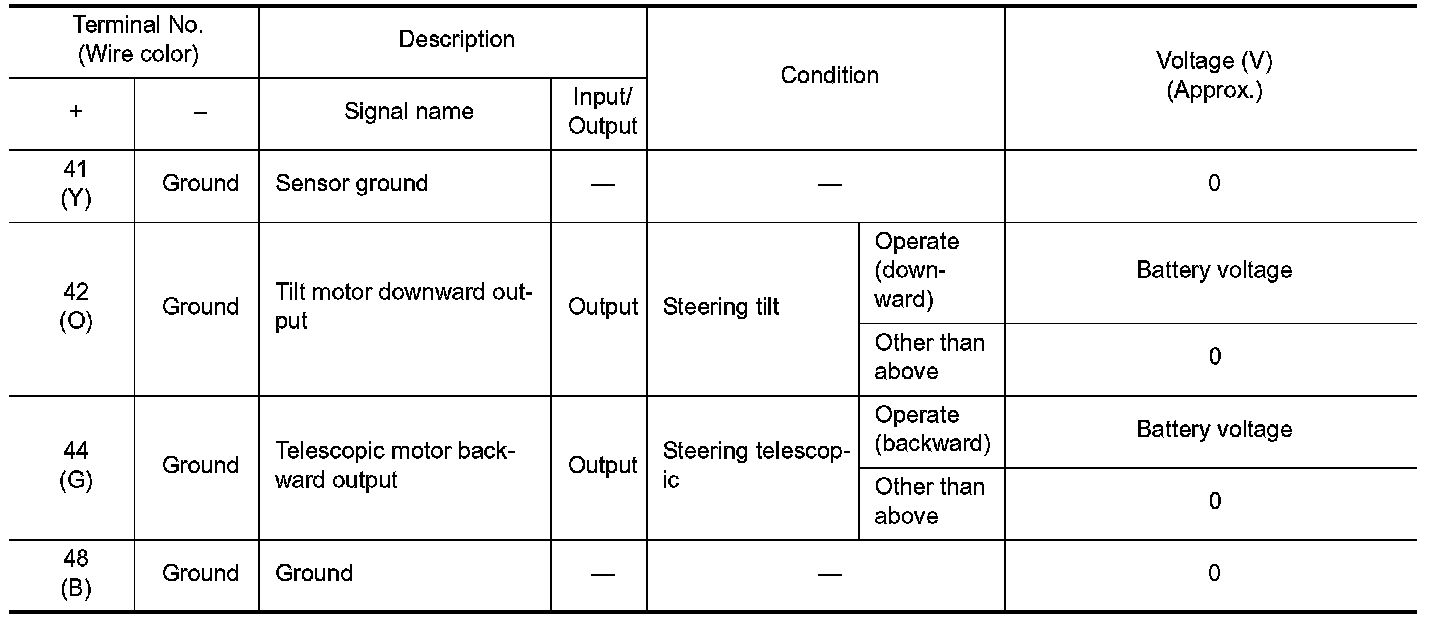

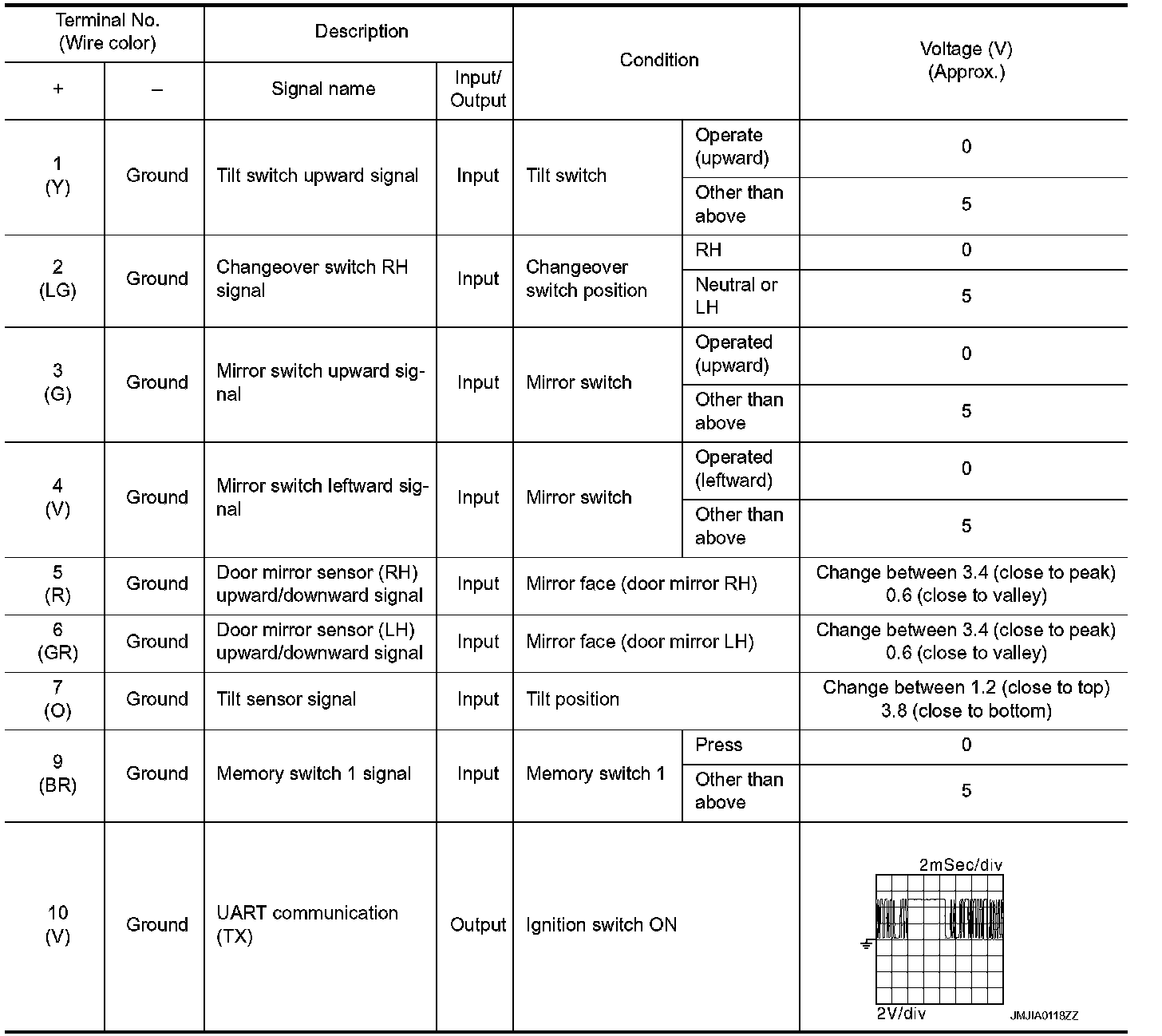

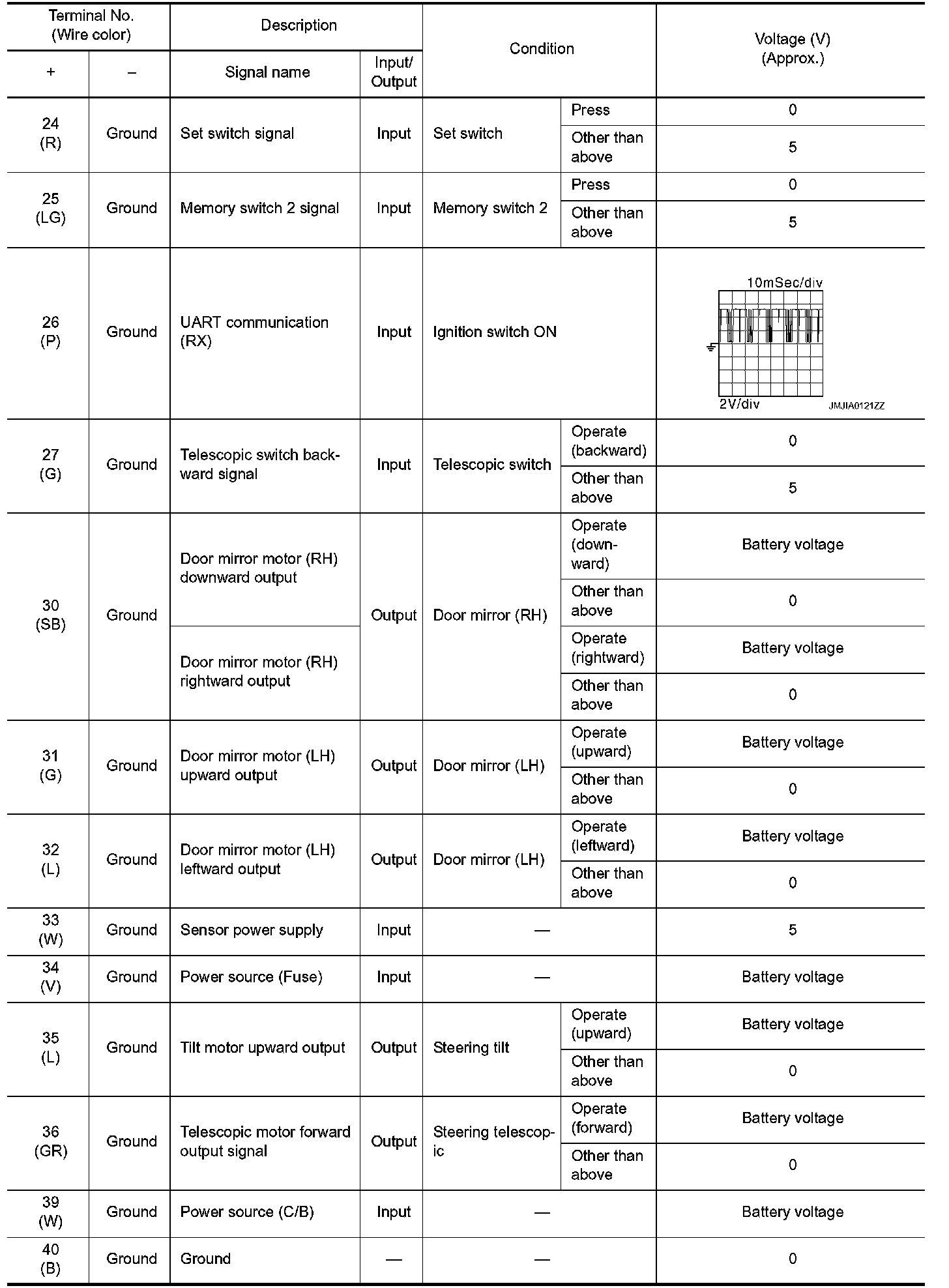

PHYSICAL VALUES
