Component Description

AUTOMATIC DRIVE POSITIONER SYSTEM

MANUAL FUNCTION : Component Description

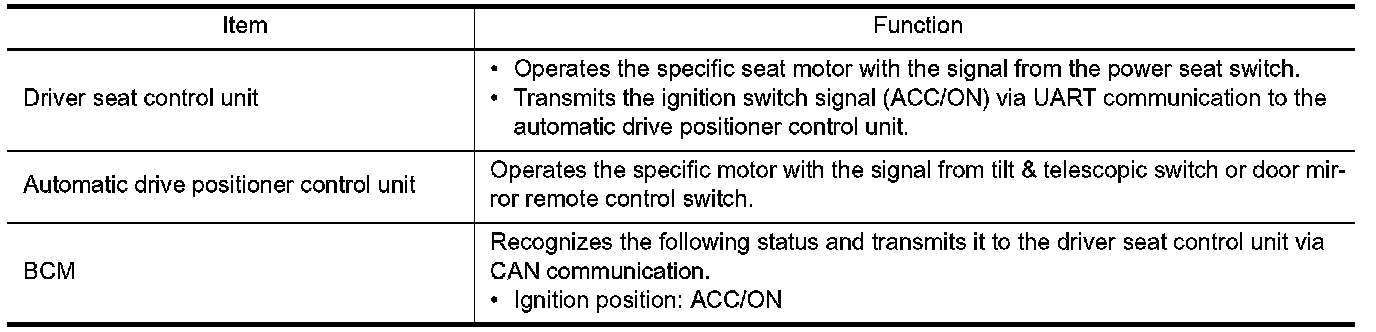

CONTROL UNITS

INPUT PARTS

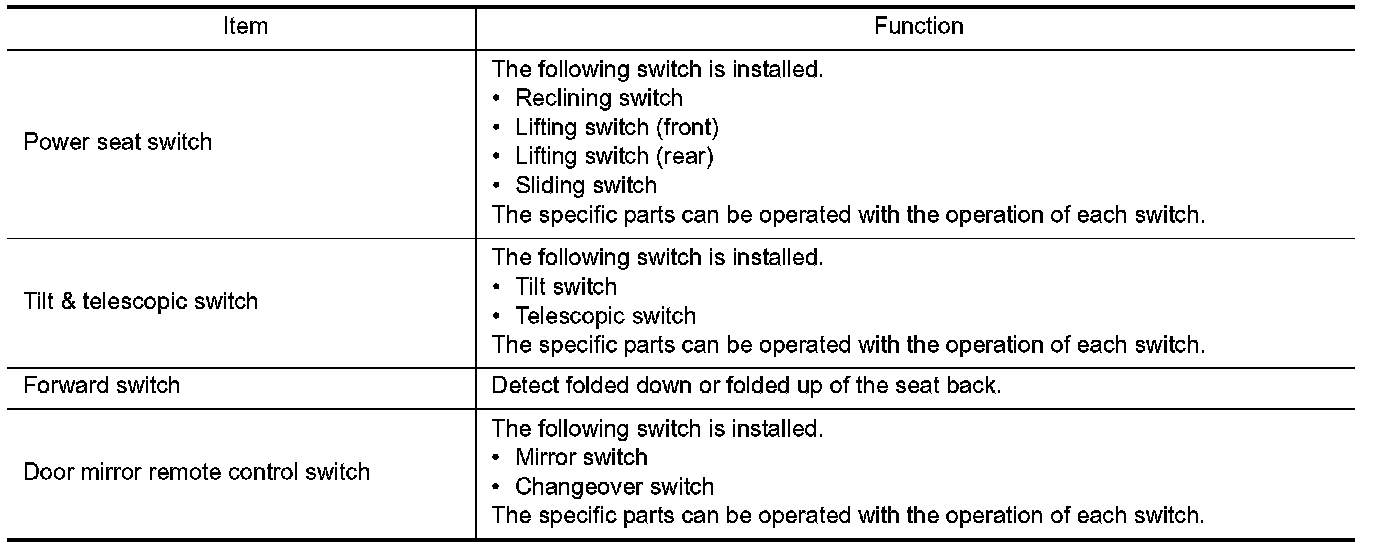

Switches

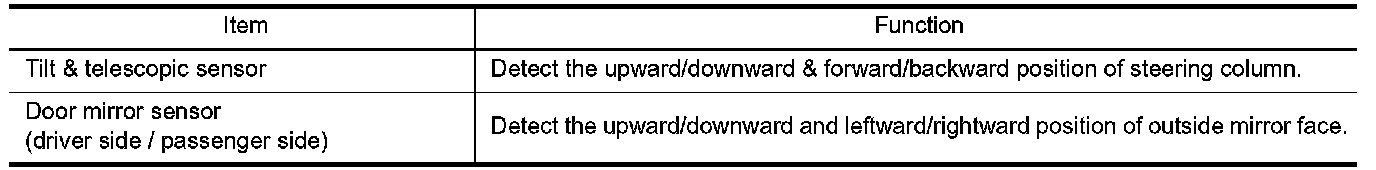

Sensors

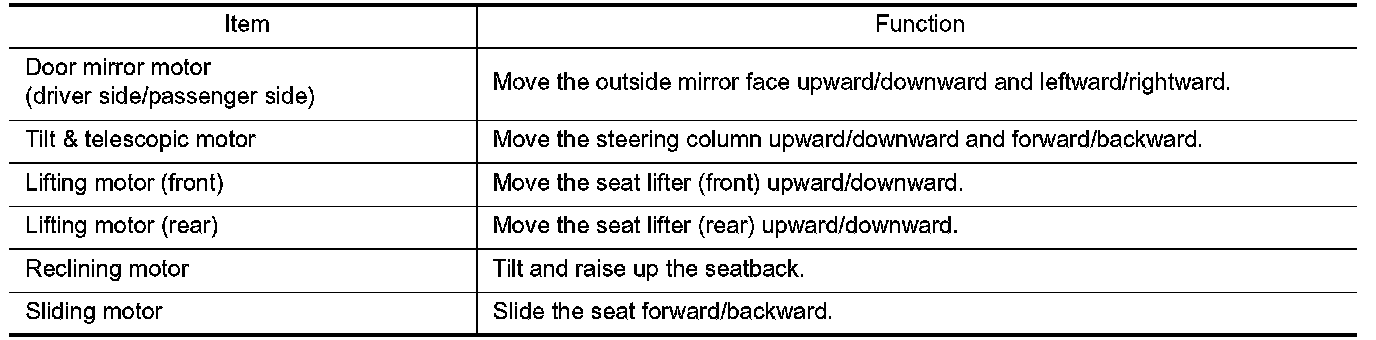

OUTPUT PARTS
