Door & Lock
DIAGNOSIS SYSTEM (BCM)
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)
BCM CONSULT-III FUNCTION

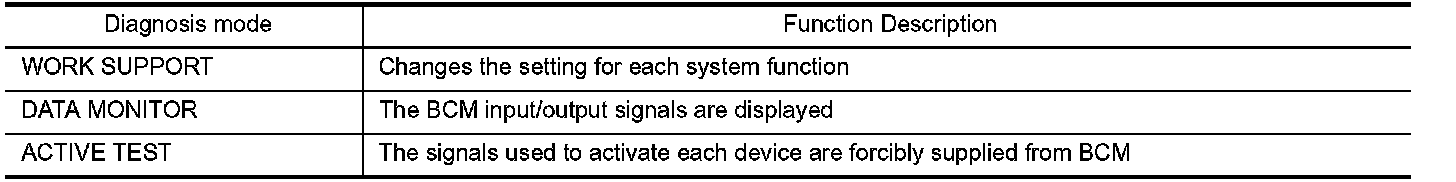

CONSULT-III performs the following functions via CAN communication with BCM.

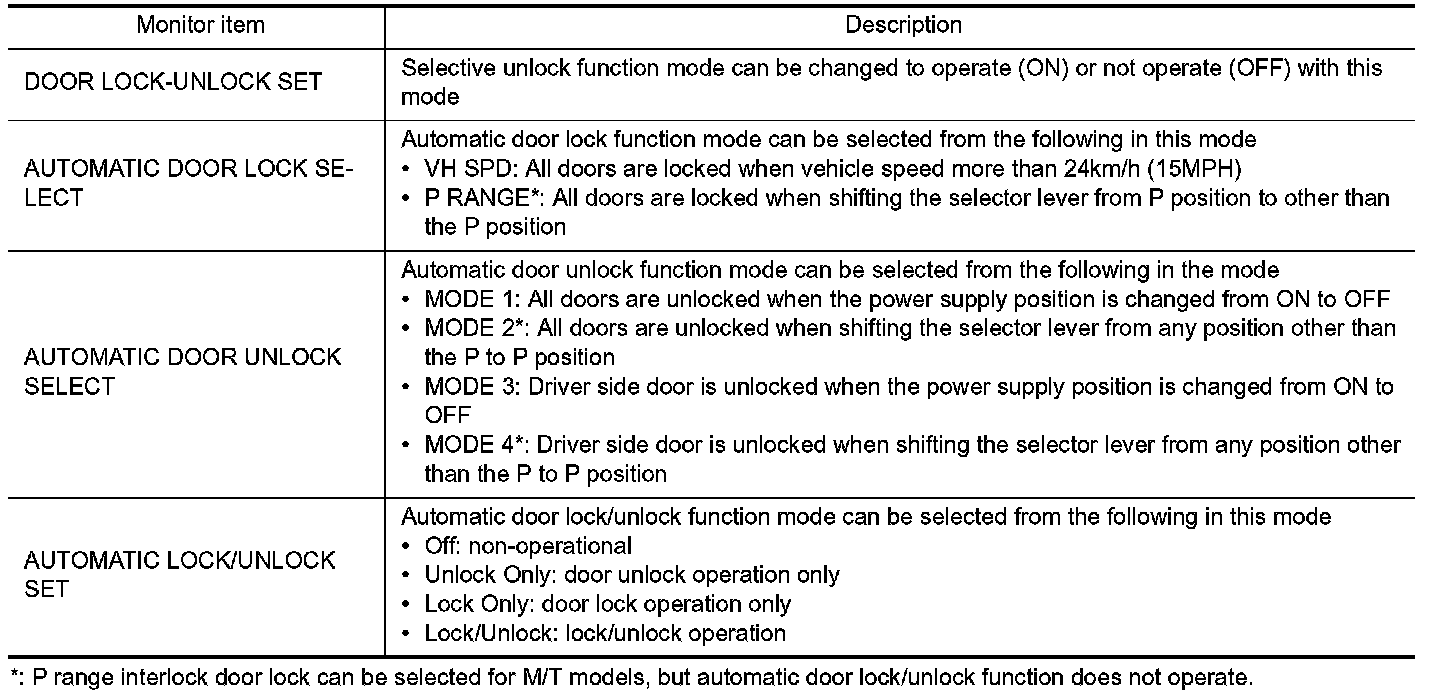

WORK SUPPORT

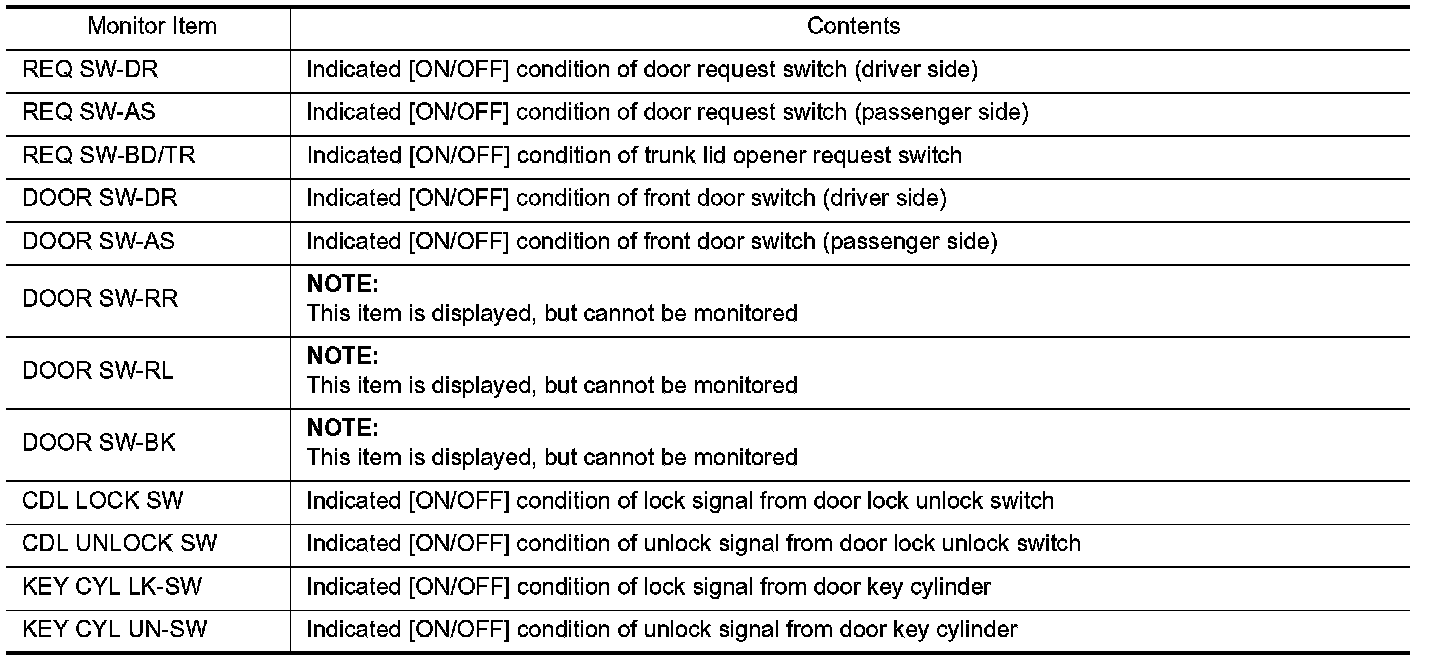

DATA MONITOR

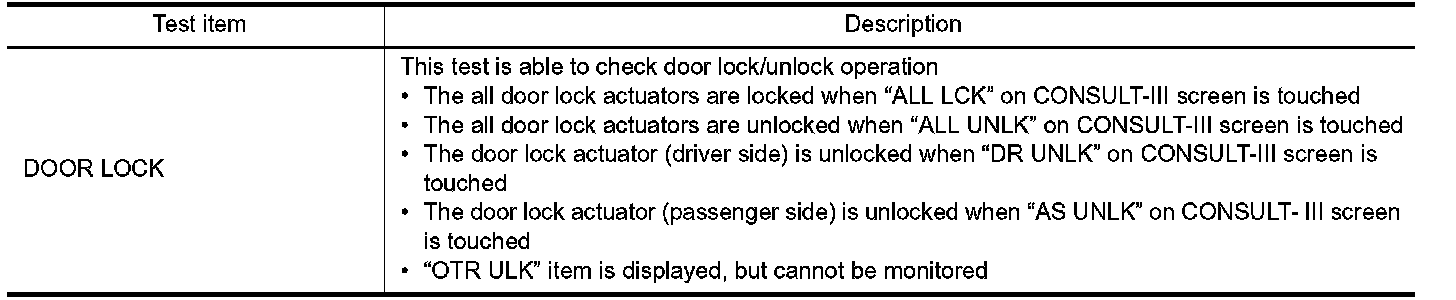

ACTIVE TEST
DIAGNOSIS SYSTEM (BCM)
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)
BCM CONSULT-III FUNCTION
CONSULT-III performs the following functions via CAN communication with BCM.
WORK SUPPORT
DATA MONITOR
ACTIVE TEST
