Component Function Check

DOOR LOCK AND UNLOCK SWITCH

PASSENGER SIDE : Component Function Check


1. CHECK FUNCTION

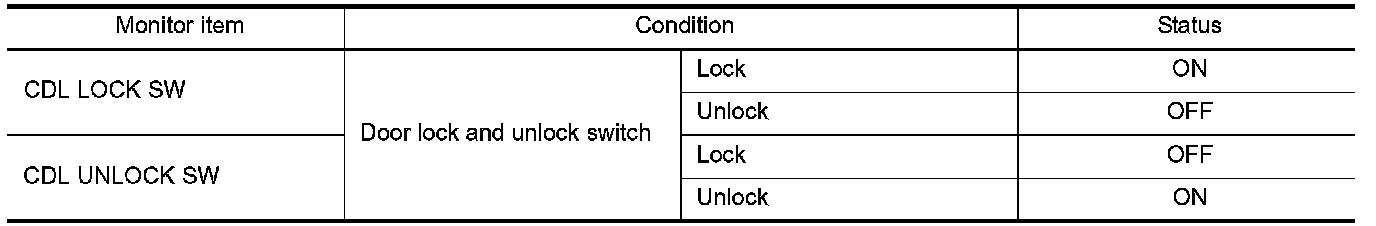

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES- Door lock and unlock switch is OK.
NO- Diagnosis Procedure.
