Removal and Installation

FLOOR TRIM

Removal and Installation


REMOVAL

1.Remove front seat assembly (LH/RH). Removal and Installation.
2.Remove rear seat cushion. Removal and Installation.
3.Remove accelerator pedal pad. Removal and Installation.

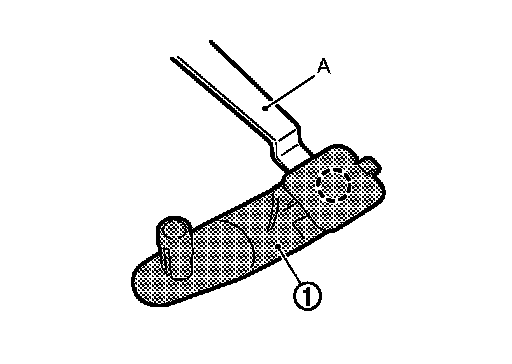

4.Disengage clip of floor hook (1) with remover tool (A).





5.Remove foot grille. Foot Grille.
6.Remove front seat belt floor anchor bolt (LH/RH). Exploded View.
7.Remove center console assembly.
Removal and Installation (A/T models).
Removal and Installation (M/T models).
8.Remove front kicking plate inner (LH/RH), dash side finisher (LH/RH), and body side welt (LH/RH).
Removal and Installation.
9.Remove instrument passenger lower cover and instrument side panel (LH/RH).
Removal and Installation A/T Models (A/T models).
Removal and Installation M/T Models (M/T models).
10.Remove YAW RATE/G-SENSOR.
Removal and Installation.
11.Remove diagnosis sensor unit.
Removal and Installation.
12.Remove console rear bracket.
Removal and Installation (A/T models).
Removal and Installation (M/T models).
13.Remove floor harness mounting clamps.
14.Remove floor trim mounting clips and fixing nuts.
15.Remove floor trim from floor trim fixing clips.
16.Remove partially the bottom side of rear side finisher, and the pull out floor carpet to remove

INSTALLATION

Install in the reverse order of removal.
