Removal and Installation

FENDER PROTECTOR

REAR WHEEL HOUSE PROTECTOR : Removal and Installation


REMOVAL

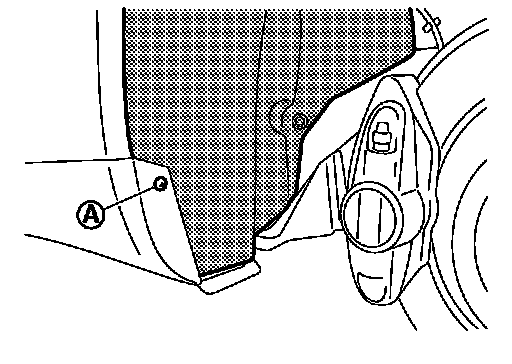

1.Remove bolt (A) of rear wheel house protector rear end.

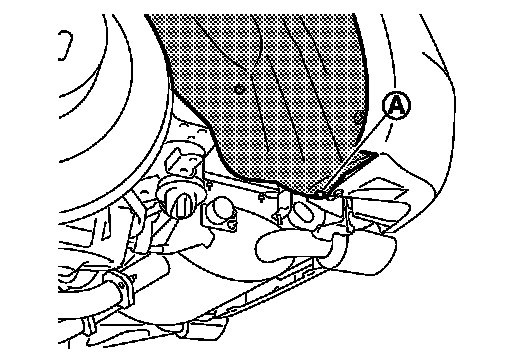

2.Remove screw (A) of rear wheel house protector located center mud guard.
3.Remove rear wheel house protector mounting nuts and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.
