Symptom Related Diagnostic Procedures

COMBINATION SWITCH SYSTEM SYMPTOMS

Symptom Table

1.Perform "Data Monitor" of CONSULT-III to check for any malfunctioning item.

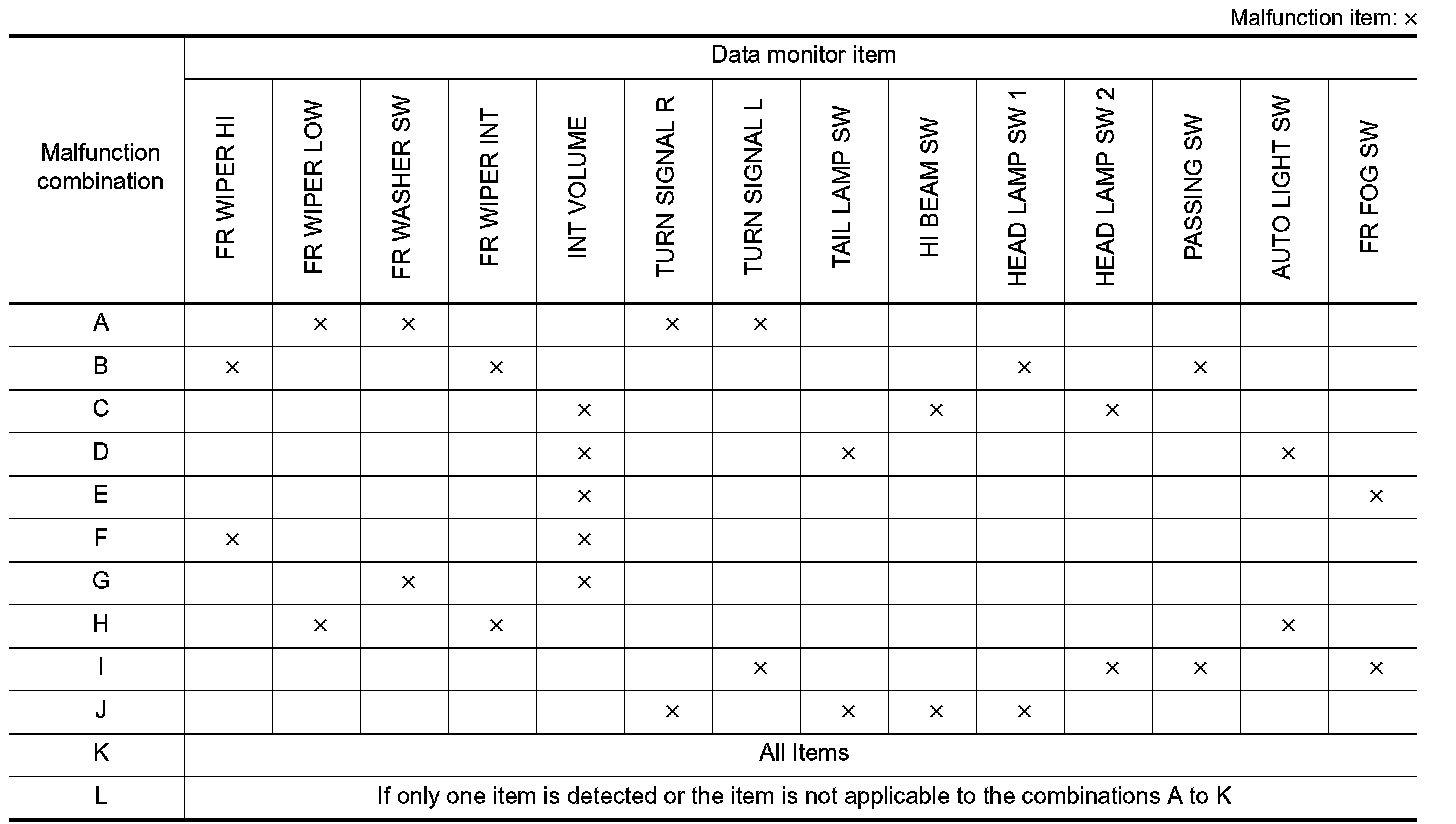

2.Check the malfunction combinations.
Malfunction item: �

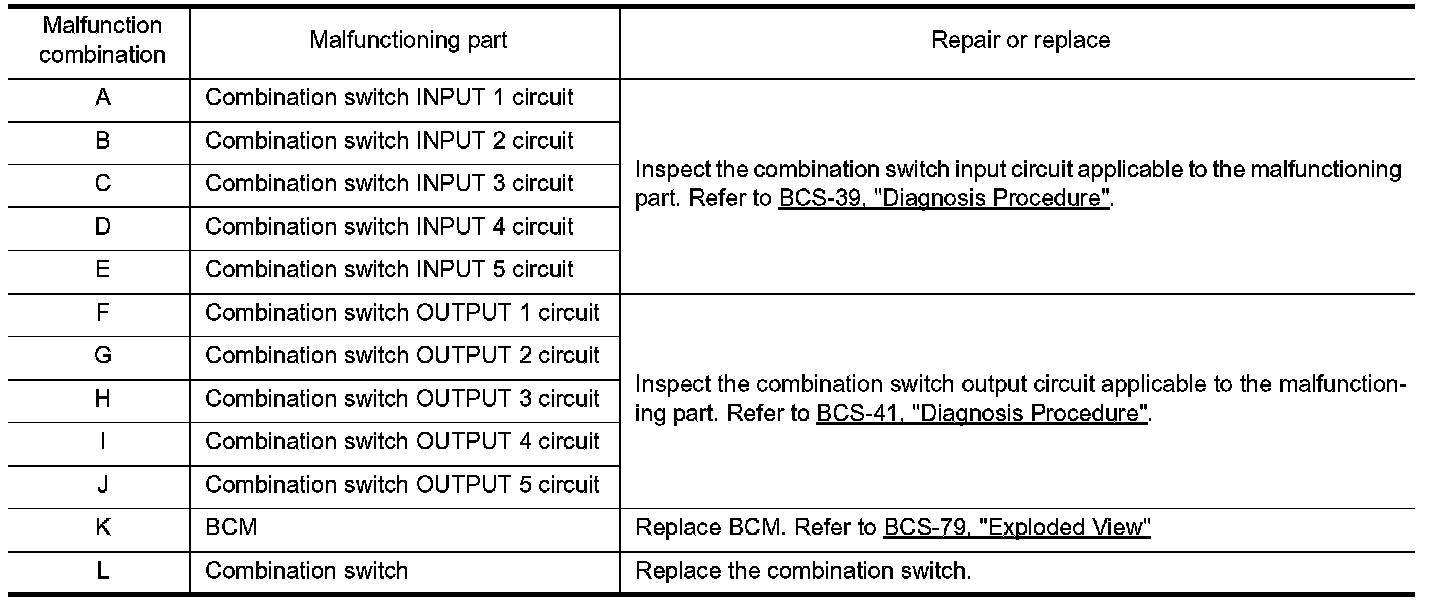

3.Identify the malfunctioning part from the agreed combination and repair or replace the part.
