Headlamp
Headlamp
DIAGNOSIS SYSTEM (
BCM
)
HEADLAMP : CONSULT-III Function (
BCM
- HEAD LAMP)

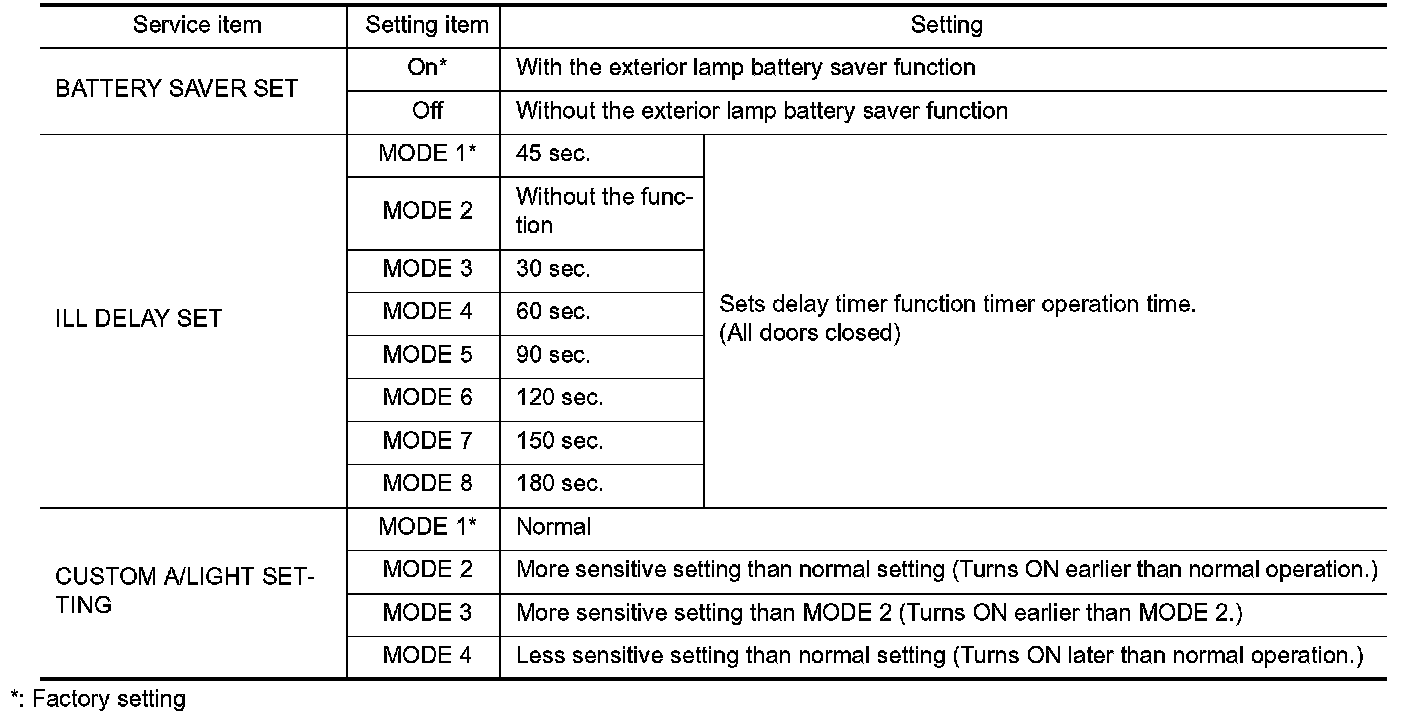

WORK SUPPORT

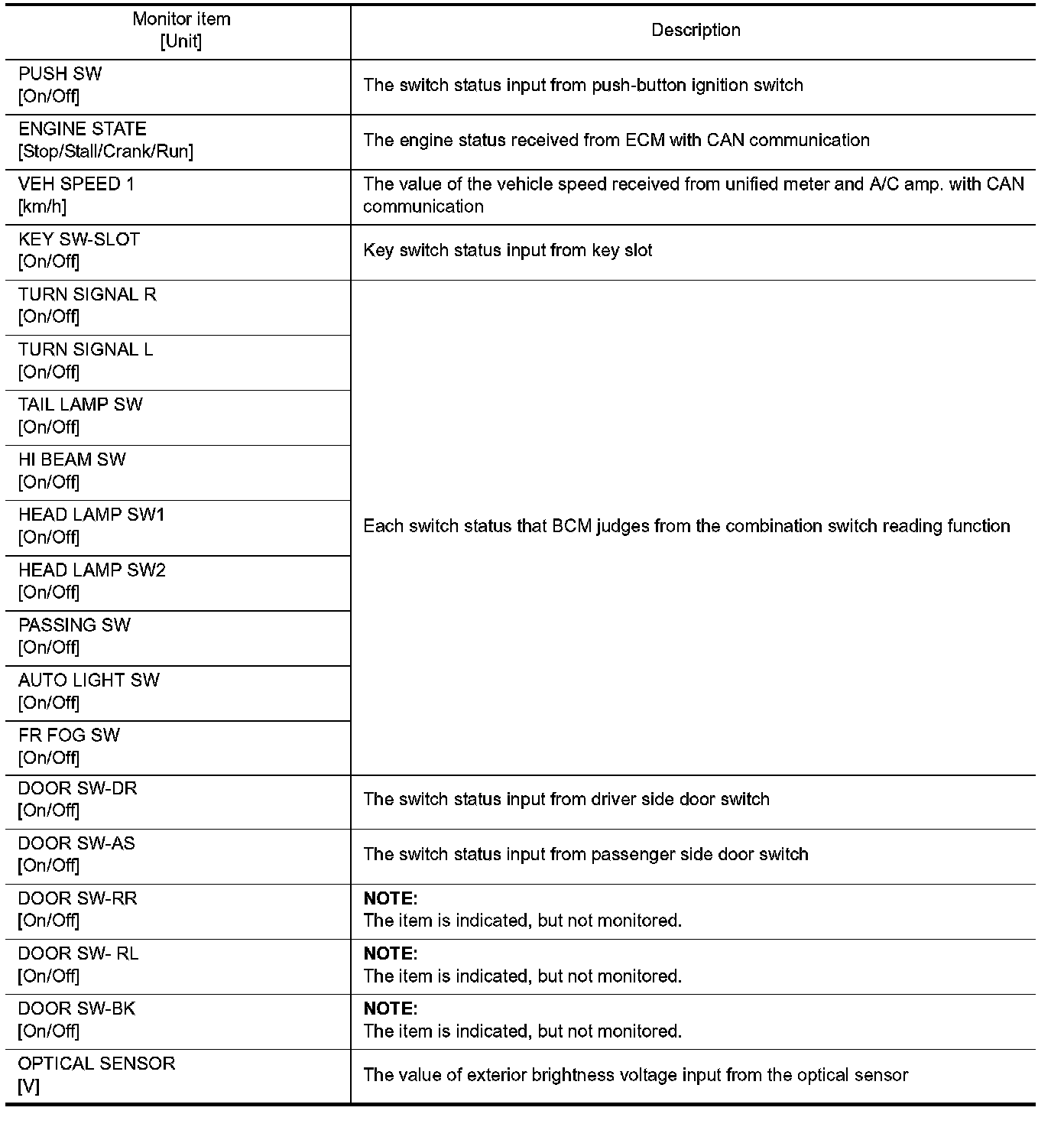

DATA MONITOR

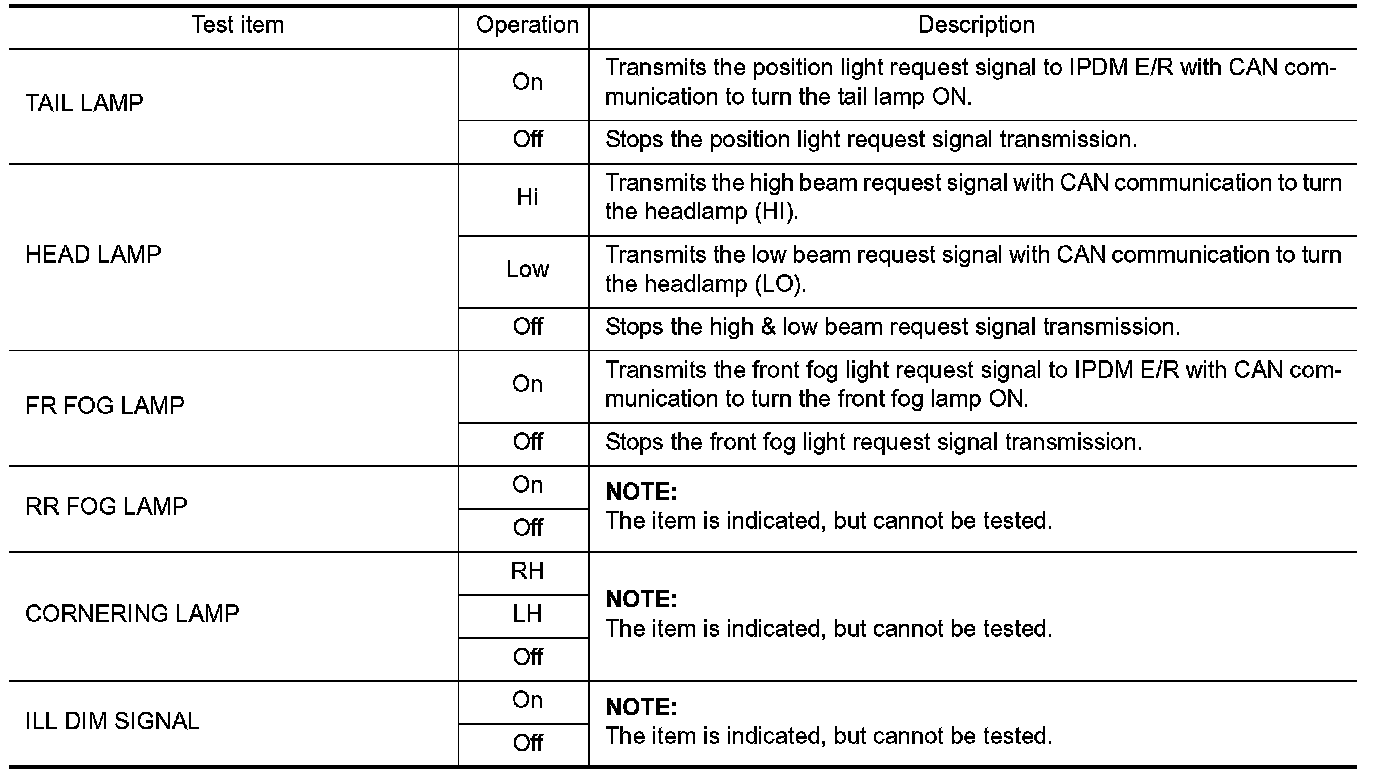

ACTIVE TEST
