Home >> Infiniti >> 2012 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Battery Saver

Battery Saver




DIAGNOSIS SYSTEM (BCM)

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

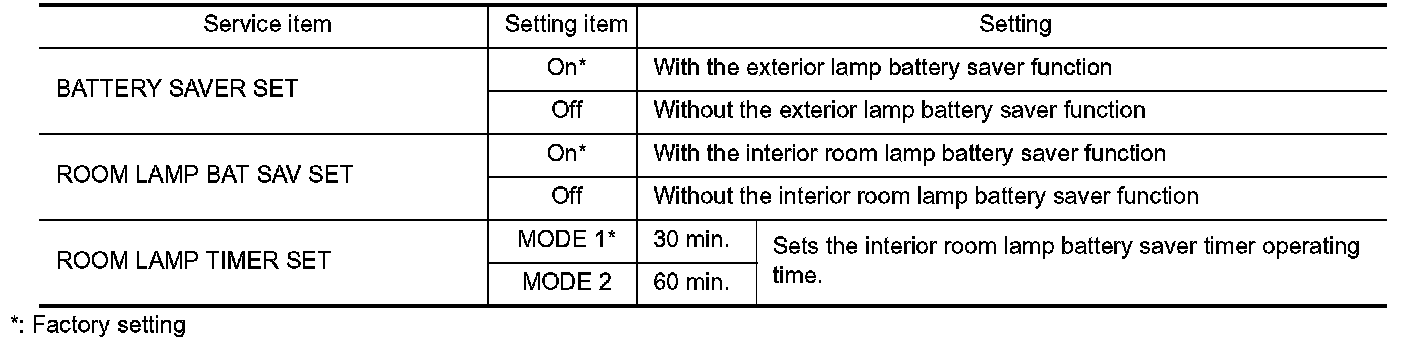

WORK SUPPORT

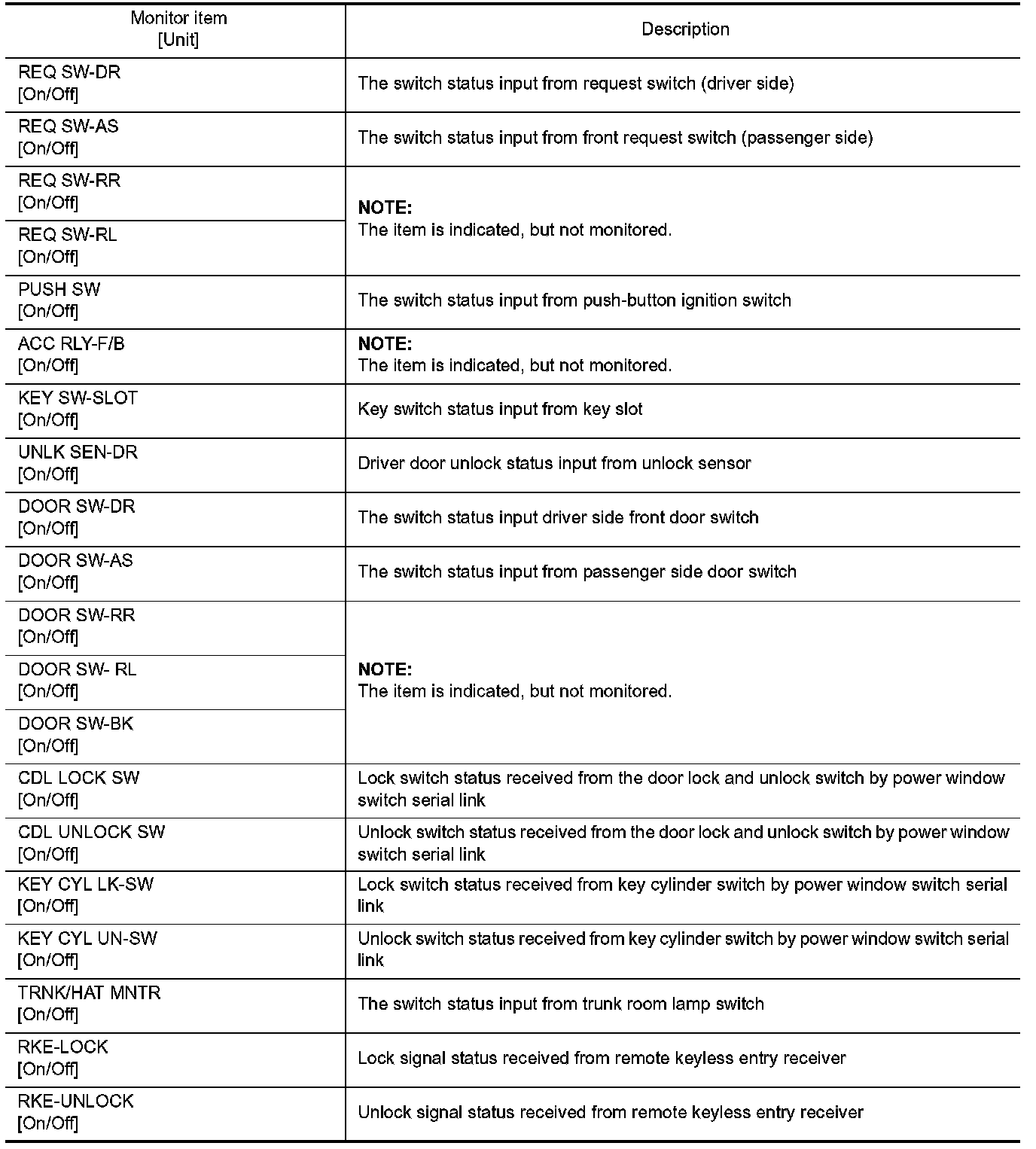

DATA MONITOR

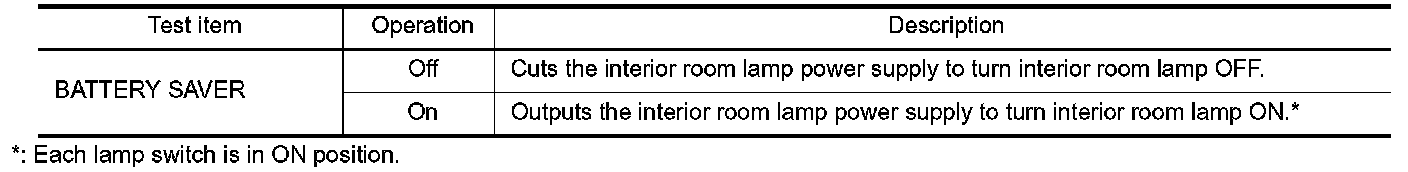

ACTIVE TEST
