Removal and Installation

SATELLITE RADIO TUNER

Removal and Installation


REMOVAL

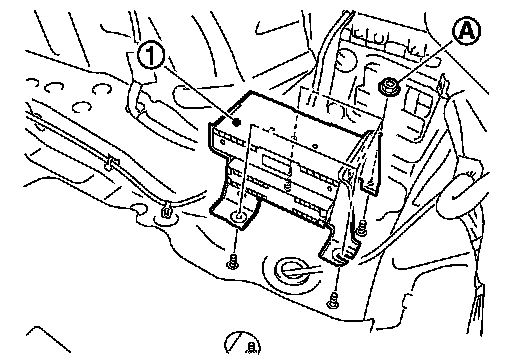

1.Remove trunk floor spacer RH. Exploded View.





2.Remove nuts (A) from the trunk room RH, and remove TEL
adapter unit and satellite radio tuner (1) from trunk room side.

INSTALLATION

Install in the reverse order of removal.
