Scan Tool Testing and Procedures
DIAGNOSIS SYSTEM (DRIVER SEAT C/U)
CONSULT-III Function
SELF DIAGNOSTIC RESULTS
Testing and Inspection.

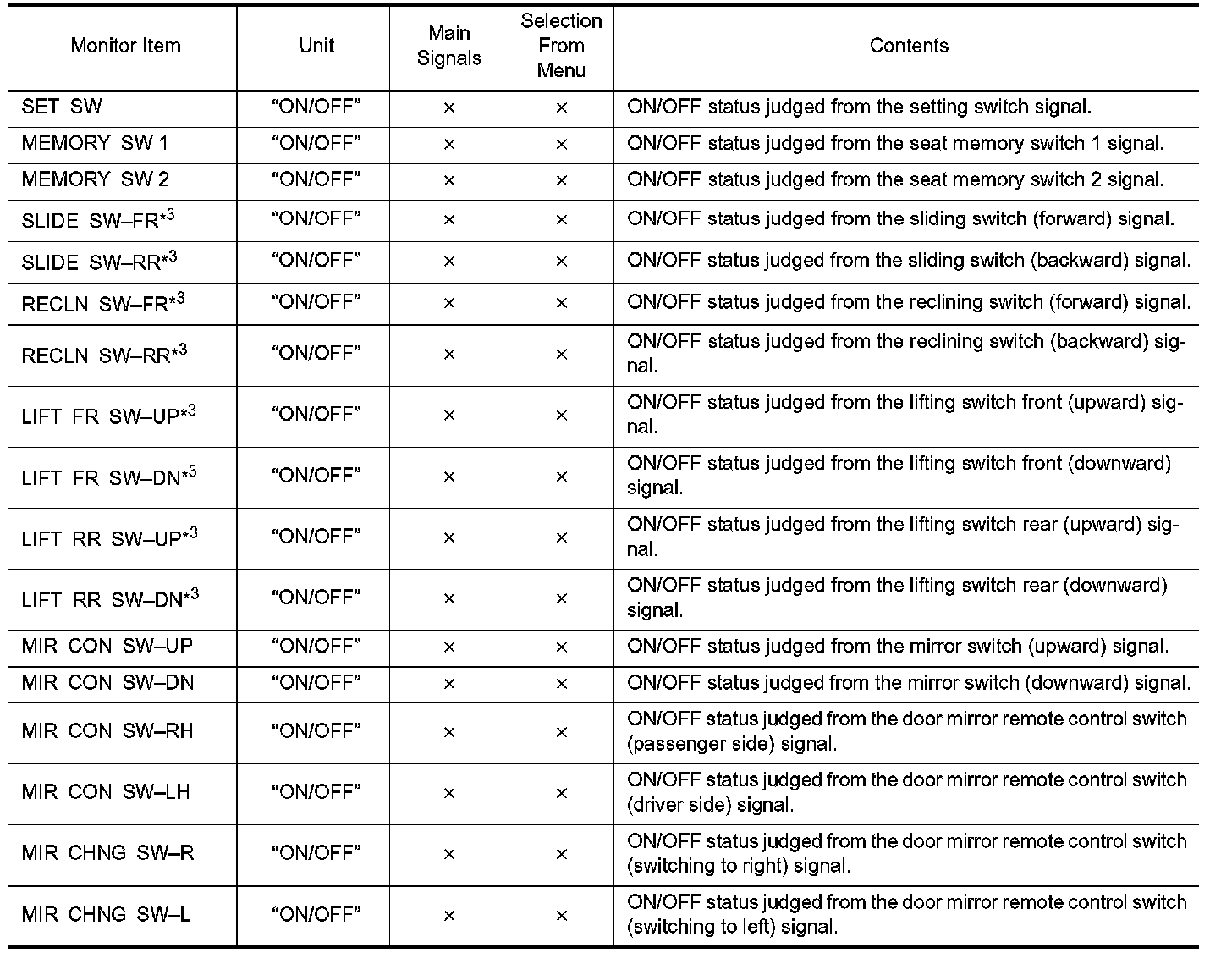

DATA MONITOR

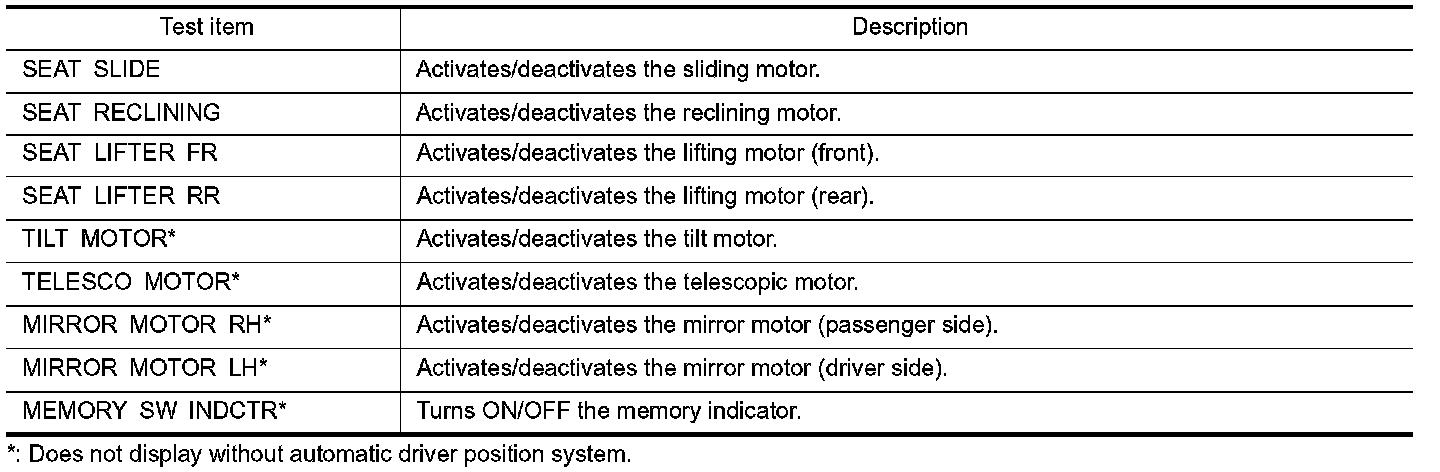

ACTIVE TEST
CAUTION:
When driving vehicle, never perform active test.
DIAGNOSIS SYSTEM (DRIVER SEAT C/U)
CONSULT-III Function
SELF DIAGNOSTIC RESULTS
Testing and Inspection.

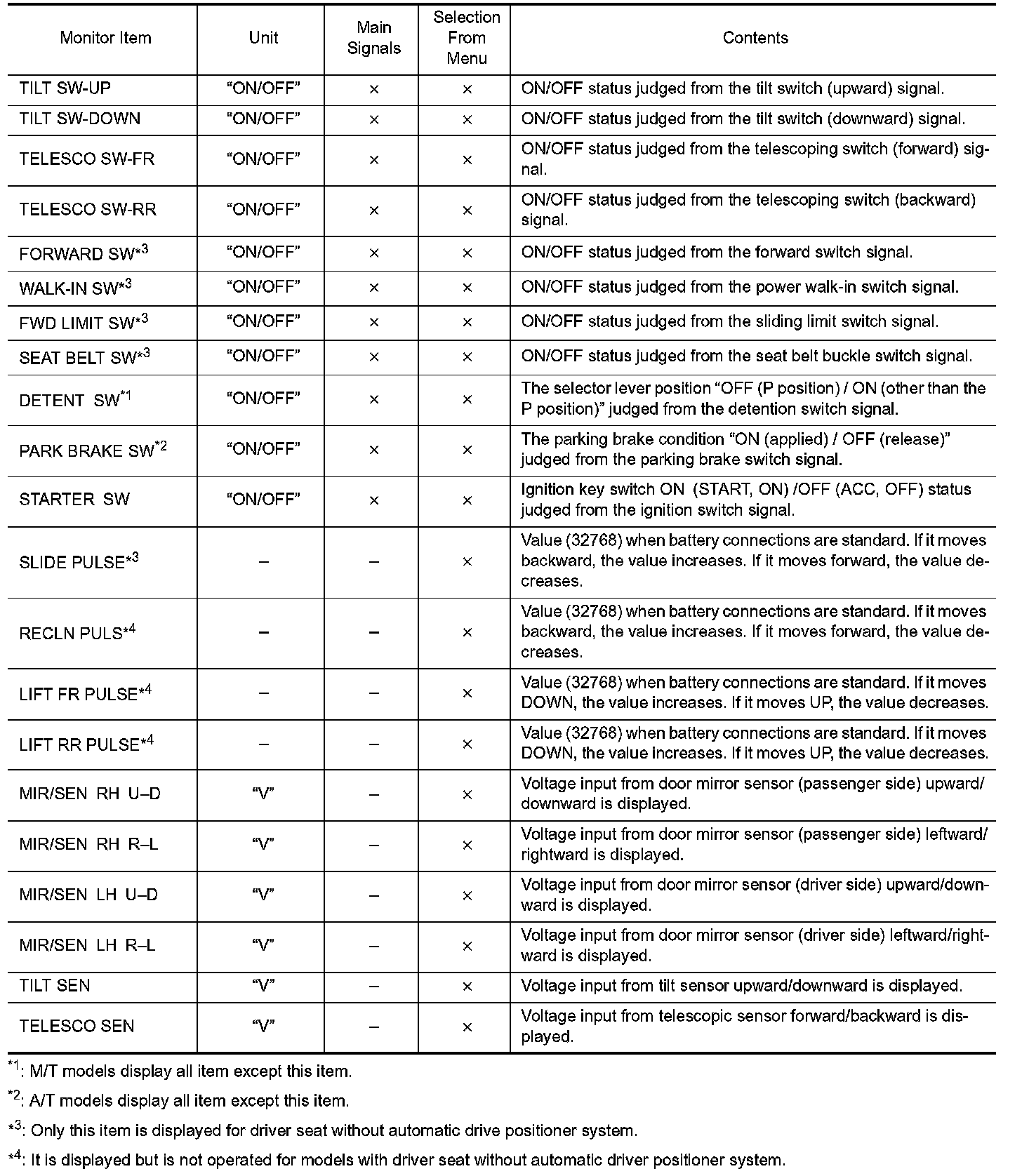

DATA MONITOR
ACTIVE TEST
CAUTION:
When driving vehicle, never perform active test.
