System Description

AUTOMATIC DRIVE POSITIONER SYSTEM

INTELLIGENT KEY INTERLOCK FUNCTION : System Description


OUTLINE

When unlocking doors by using Intelligent Key or driver side door request switch, the system performs memory operation.

OPERATION PROCEDURE

1.Unlock doors by using Intelligent Key or driver side door request switch.
2.The system performs memory operation, and then performs exit assist operation.
NOTE:
If the seat position is in memorized position before unlocking doors, memory operation does not perform.
NOTE:
Further information for Intelligent Key interlock function. Description.

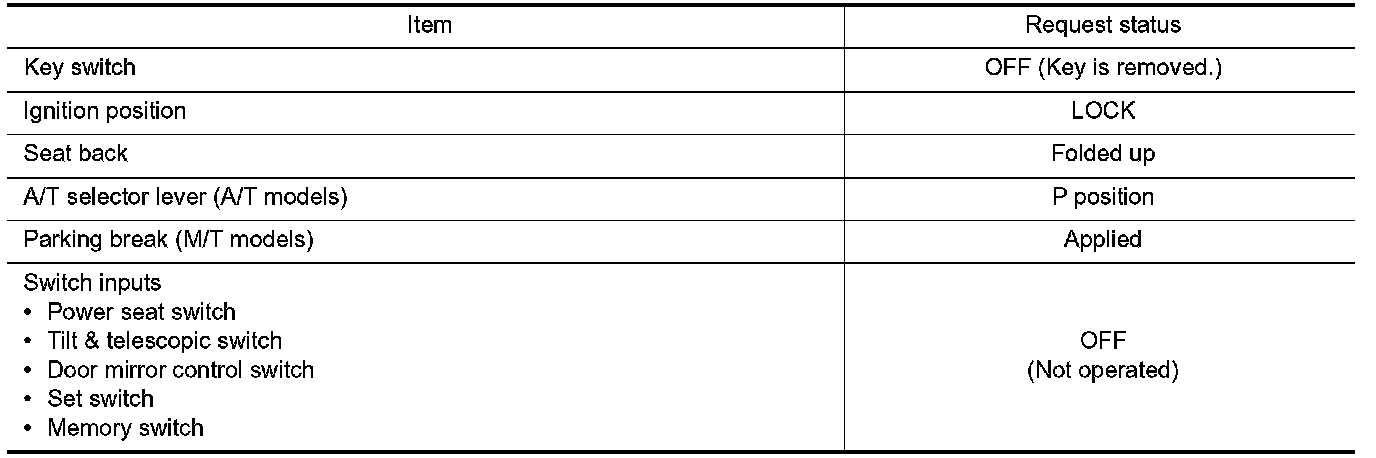

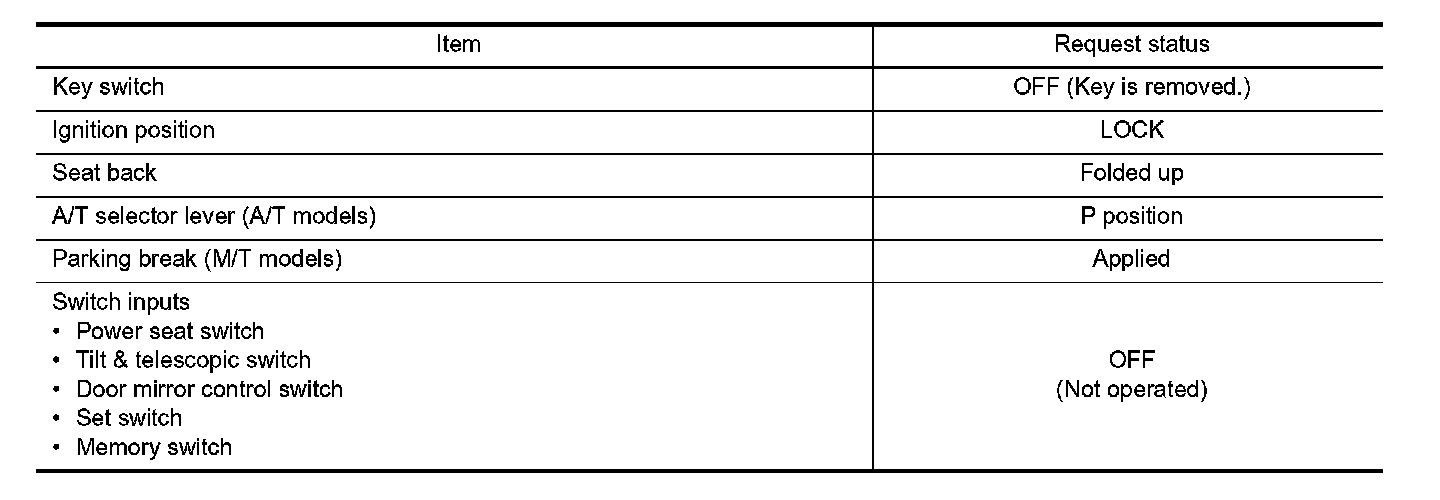

OPERATION CONDITION

Satisfy all of the following items. The Intelligent Key interlock function is performed if these items are satisfied.

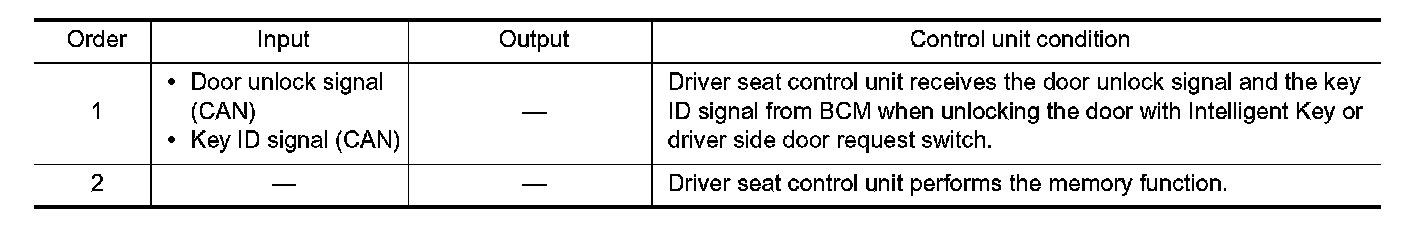

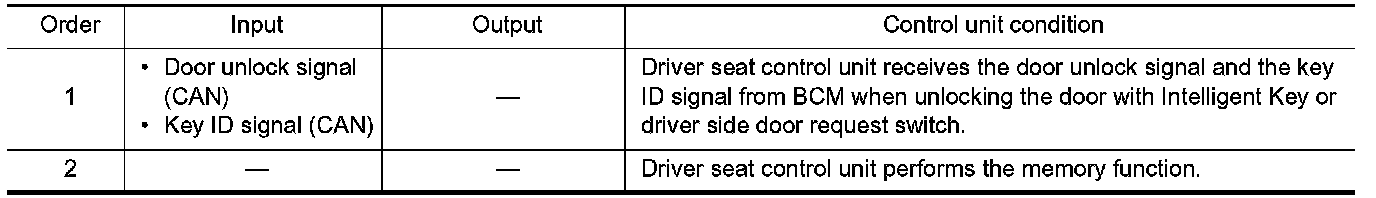

DETAIL FLOW
