Removal and Installation

GPS ANTENNA

Removal and Installation


REMOVAL

1.Remove instrument panel. Exploded View A/T Models (A/T models) or {LINK_TO:0000000006469762}, "M/T
MODELS : Exploded View" (M/T models).

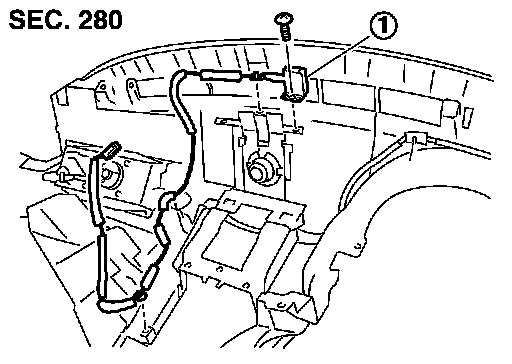

2.Remove GPS antenna (1) from instrument panel.

INSTALLATION

Install in the reverse order of removal.
