With Navigation

MULTI AV SYSTEM SYMPTOMS

Symptom Table


RELATED TO NAVIGATION

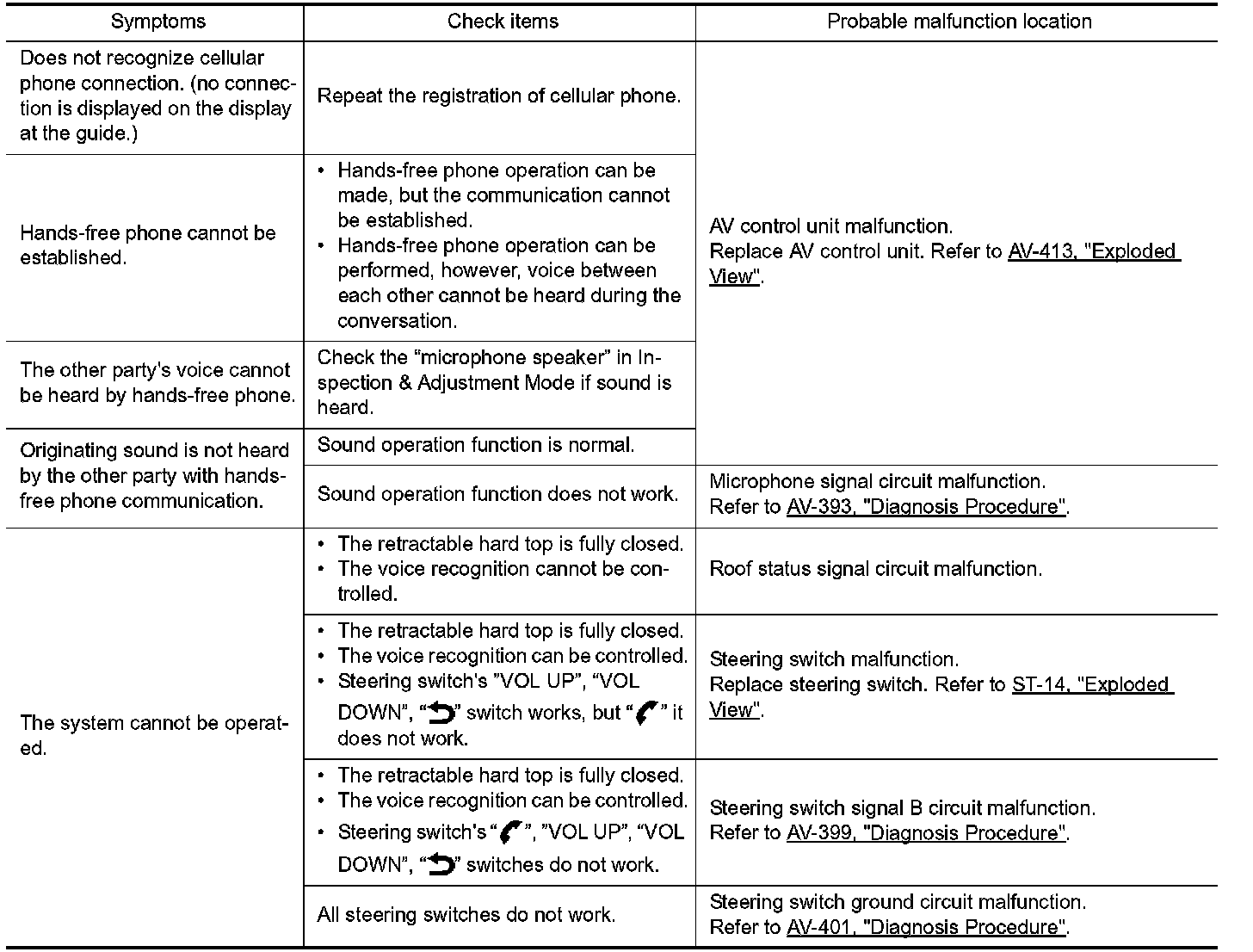

RELATED TO HANDS-FREE PHONE

Simple Check for Bluetooth(tm) Communication
If cellular phone and AV control unit cannot be connected with Bluetooth(tm) communication, following procedure allows the technician to judge which device has malfunction.
1.Turn ON cellular phone, not connecting Bluetooth(tm) communication.
2.Start CONSULT-III, then start Windows�.

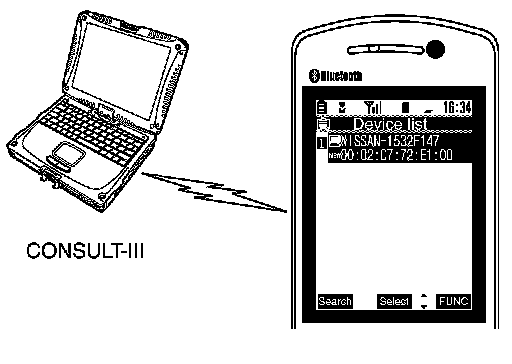

3.Set CONSULT-III near a cellular phone.





4.When operated Bluetooth(tm) registration by cellular phone, check
*
if CONSULT-III would be displayed on the device name.
(If other Bluetooth(tm) device is located near cellular phone, a name of the device would be displayed also.)
NOTE:
*:Displayed device name is "NISSAN-".
- If no device name is displayed, cellular phone is malfunctioning.
Repair the cellular phone first, then perform diagnosis.
- If CONSULT-III is displayed on device name, cellular phone is normal. Perform diagnosis as per the following table.

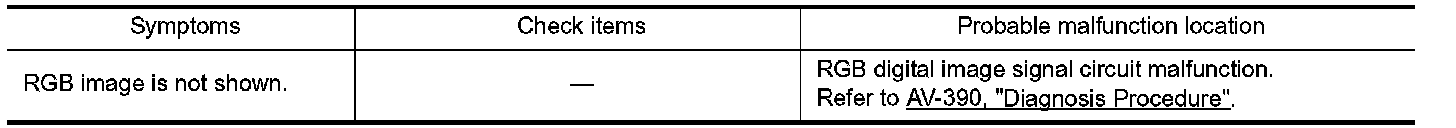

RELATED TO RGB IMAGE

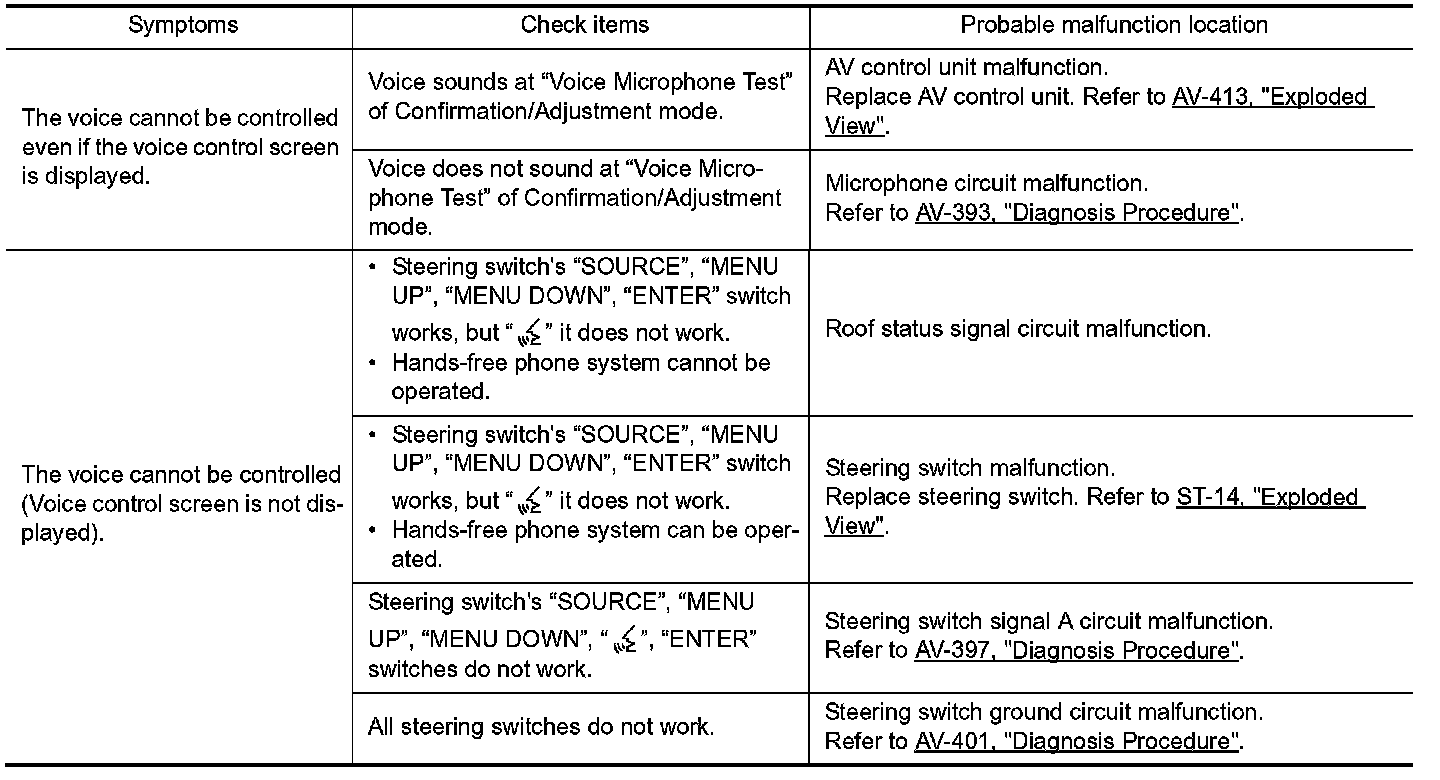

RELATED TO VOICE CONTROL







RELATED TO AUDIO

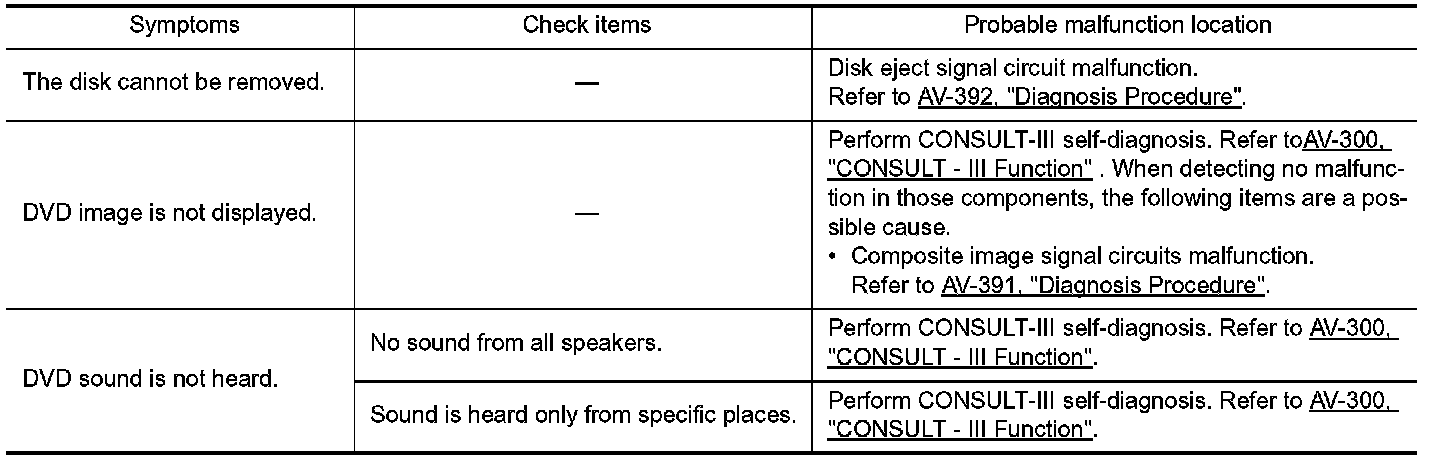

RELATED TO DVD MODE

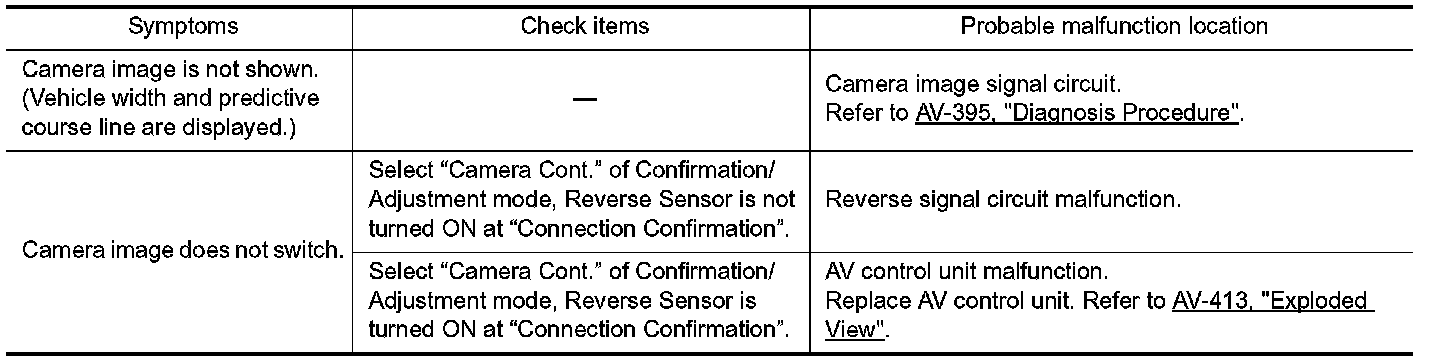

RELATED TO CAMERA

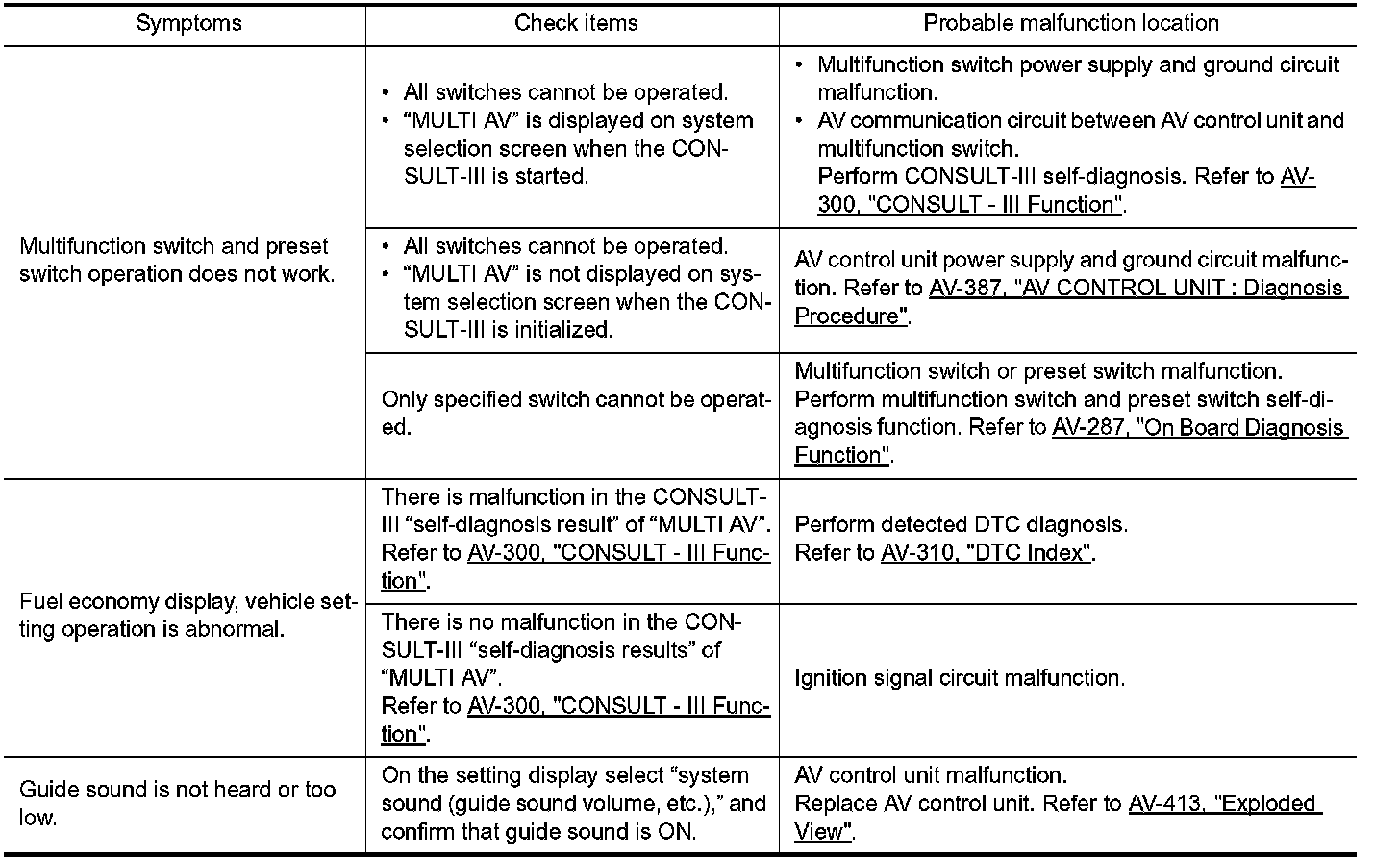

Trouble Diagnosis Chart by Symptom

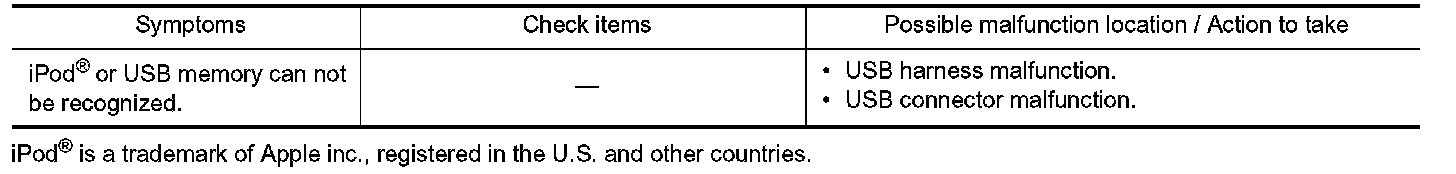

RELATED TO USB

NOTE:
Check that there is no malfunction of USB equipment main body before performing a diagnosis.

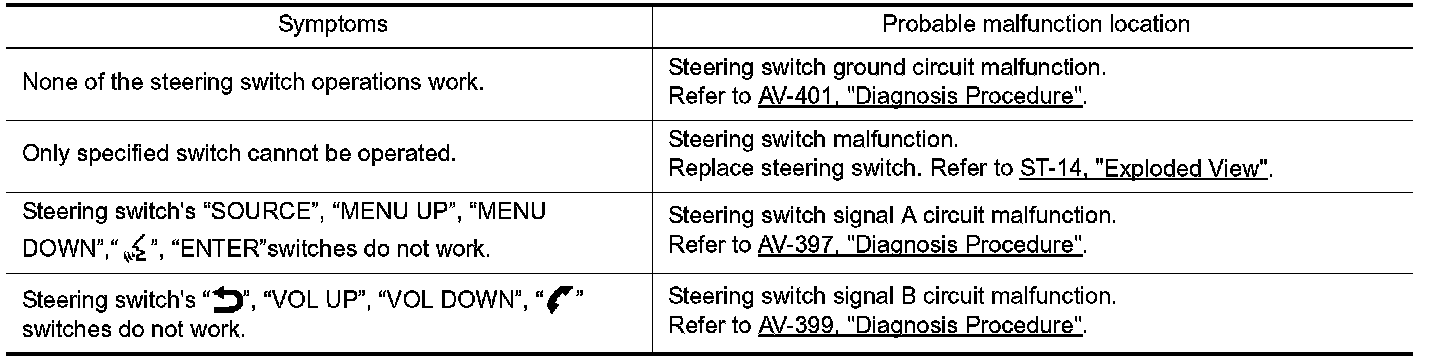

RELATED TO STEERING SWITCH
