Theft Alarm




DIAGNOSIS SYSTEM (BCM)

THEFT ALM : CONSULT-III Function (BCM - THEFT)

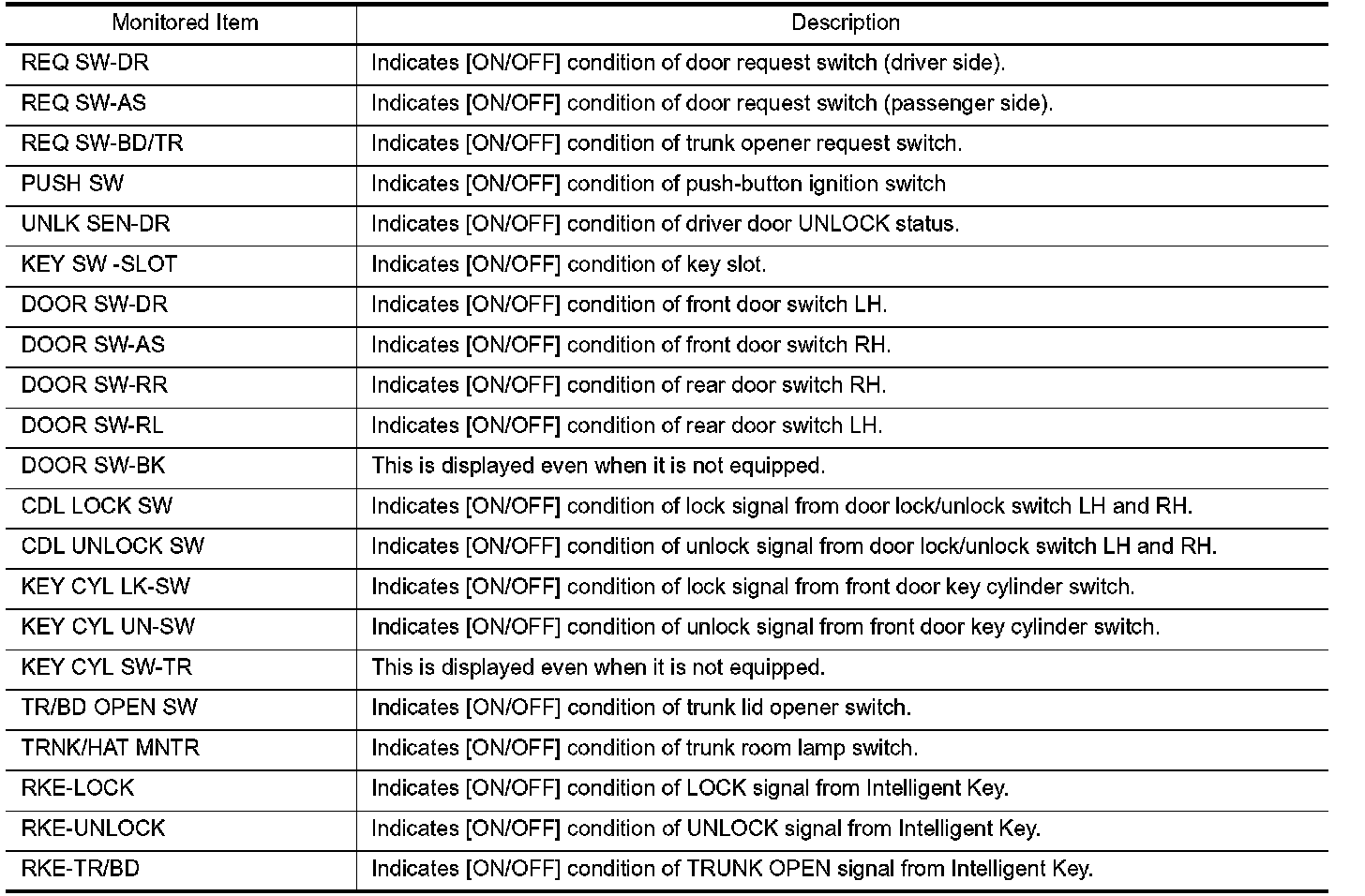

DATA MONITOR

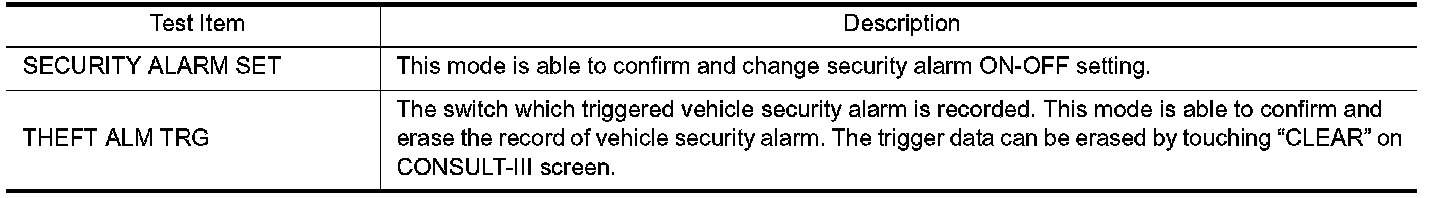

WORK SUPPORT

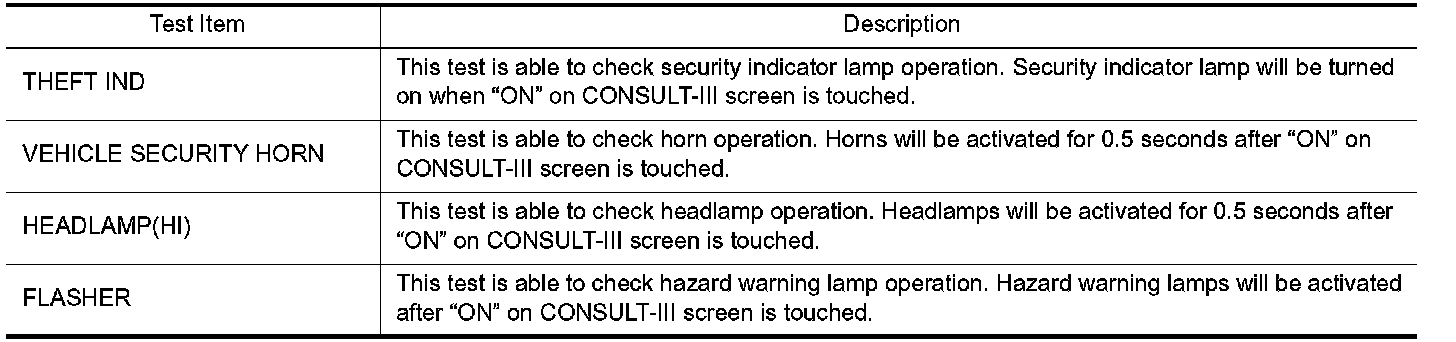

ACTIVE TEST
