Intelligent Key




DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)

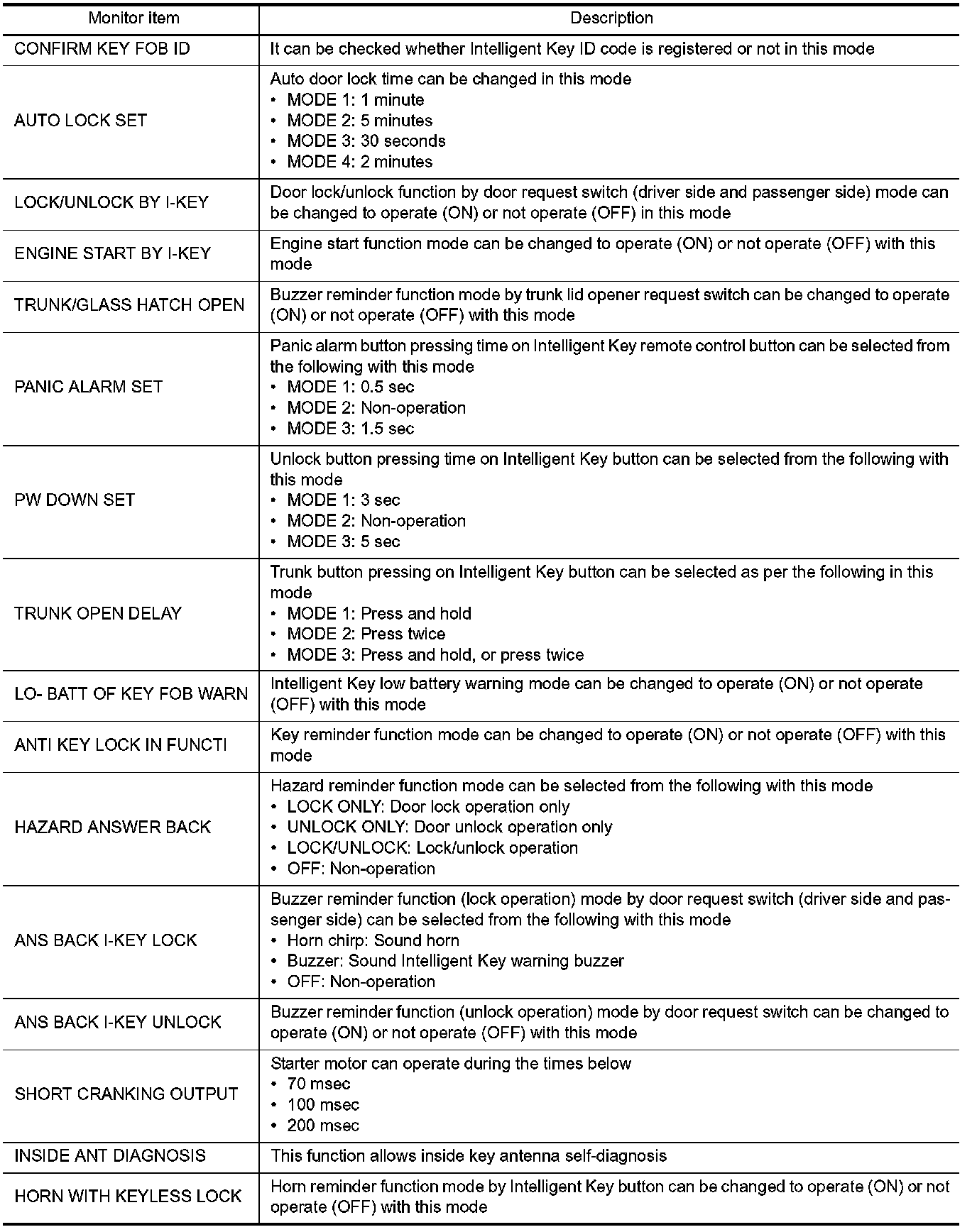

WORK SUPPORT







SELF-DIAG RESULT

Testing and Inspection.

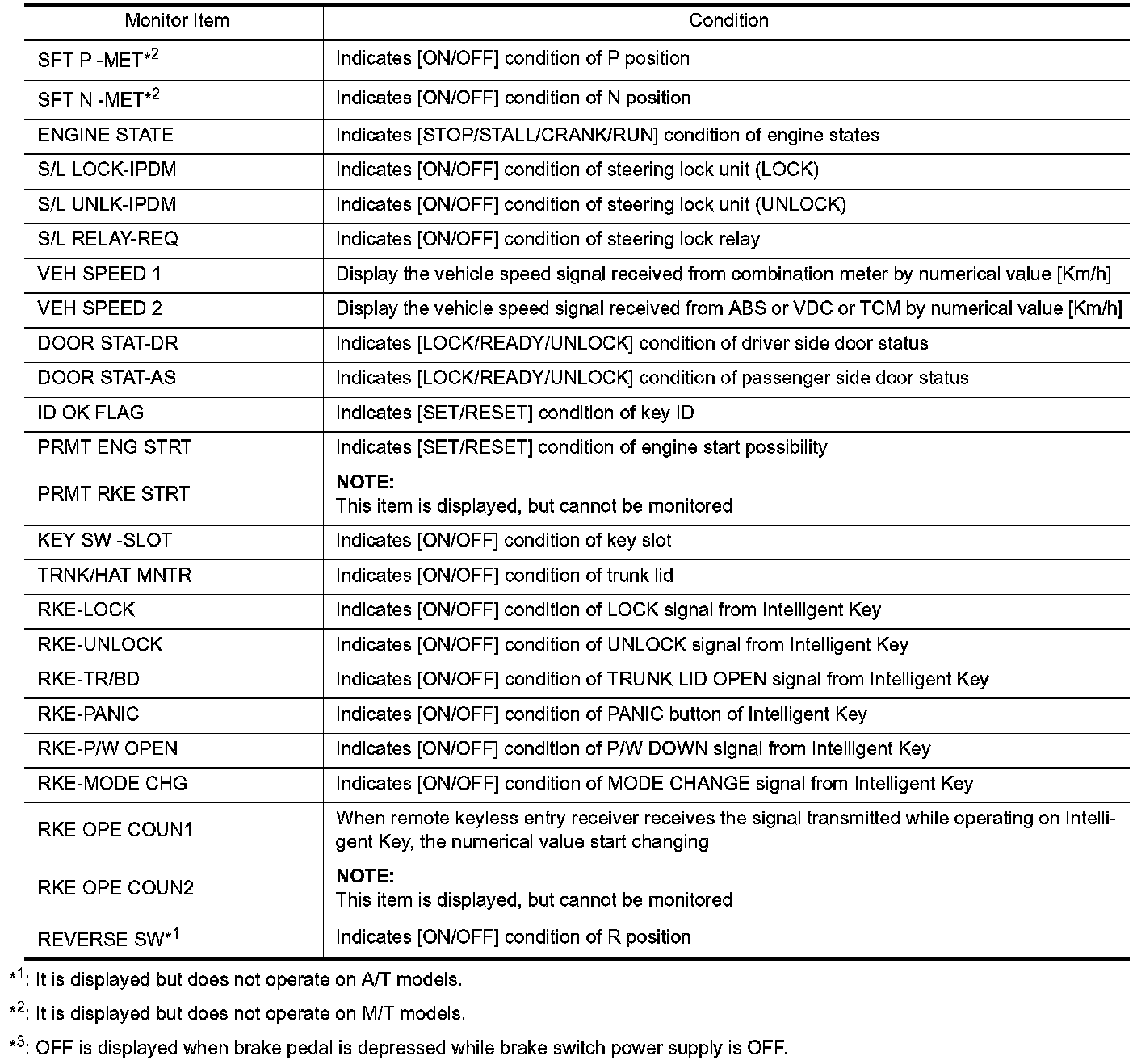

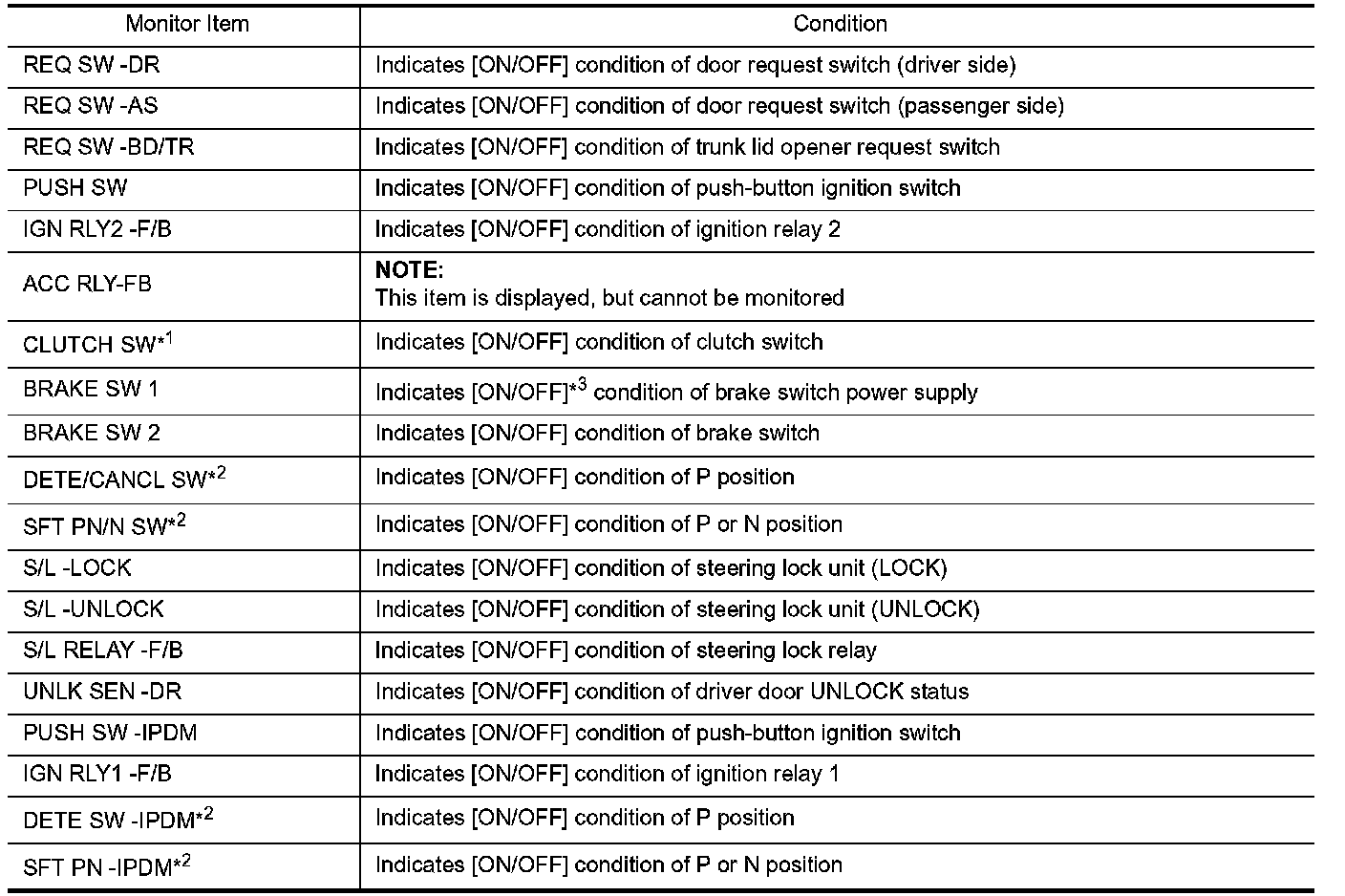

DATA MONITOR

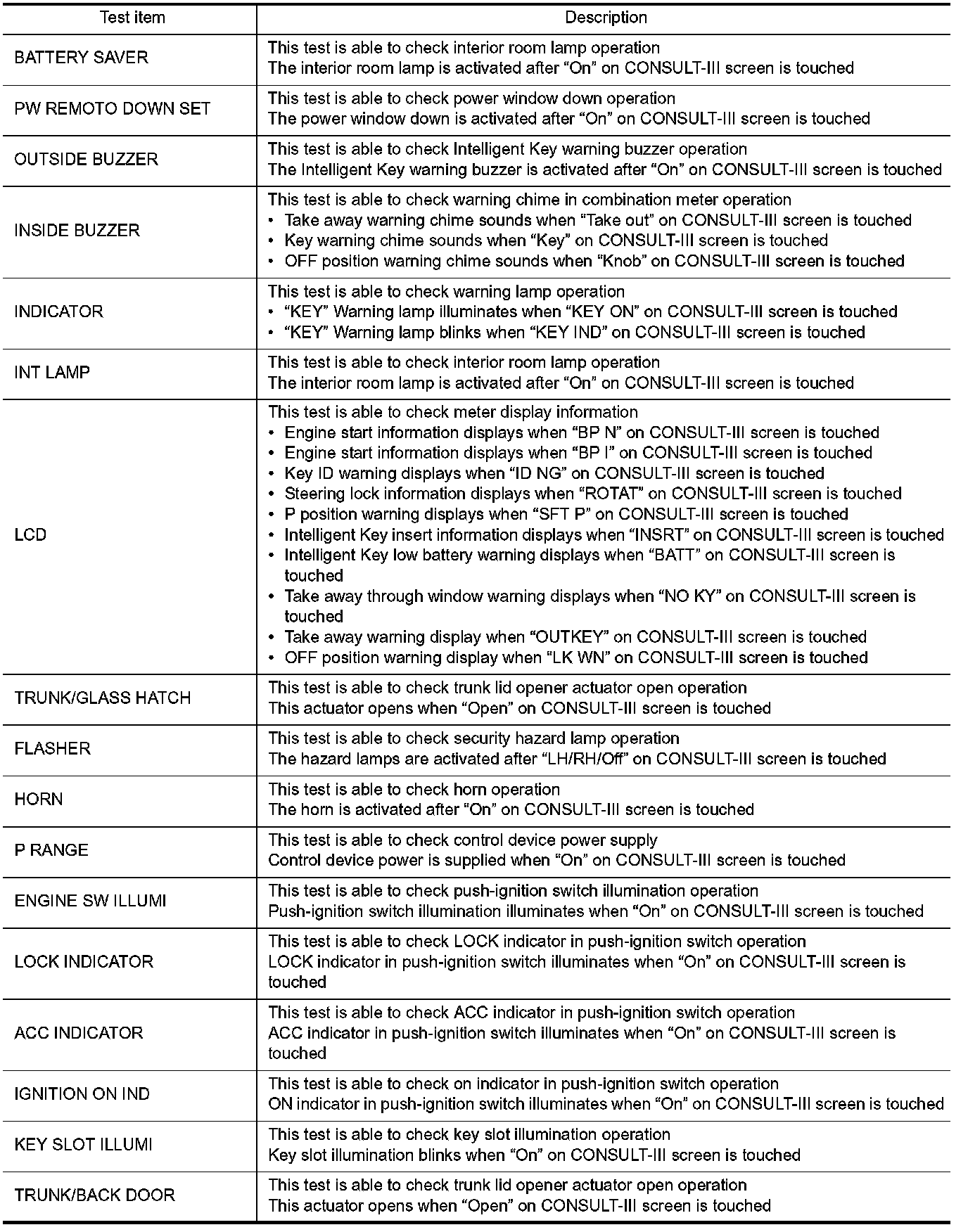

ACTIVE TEST
