IPDM E/R

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Reference Value

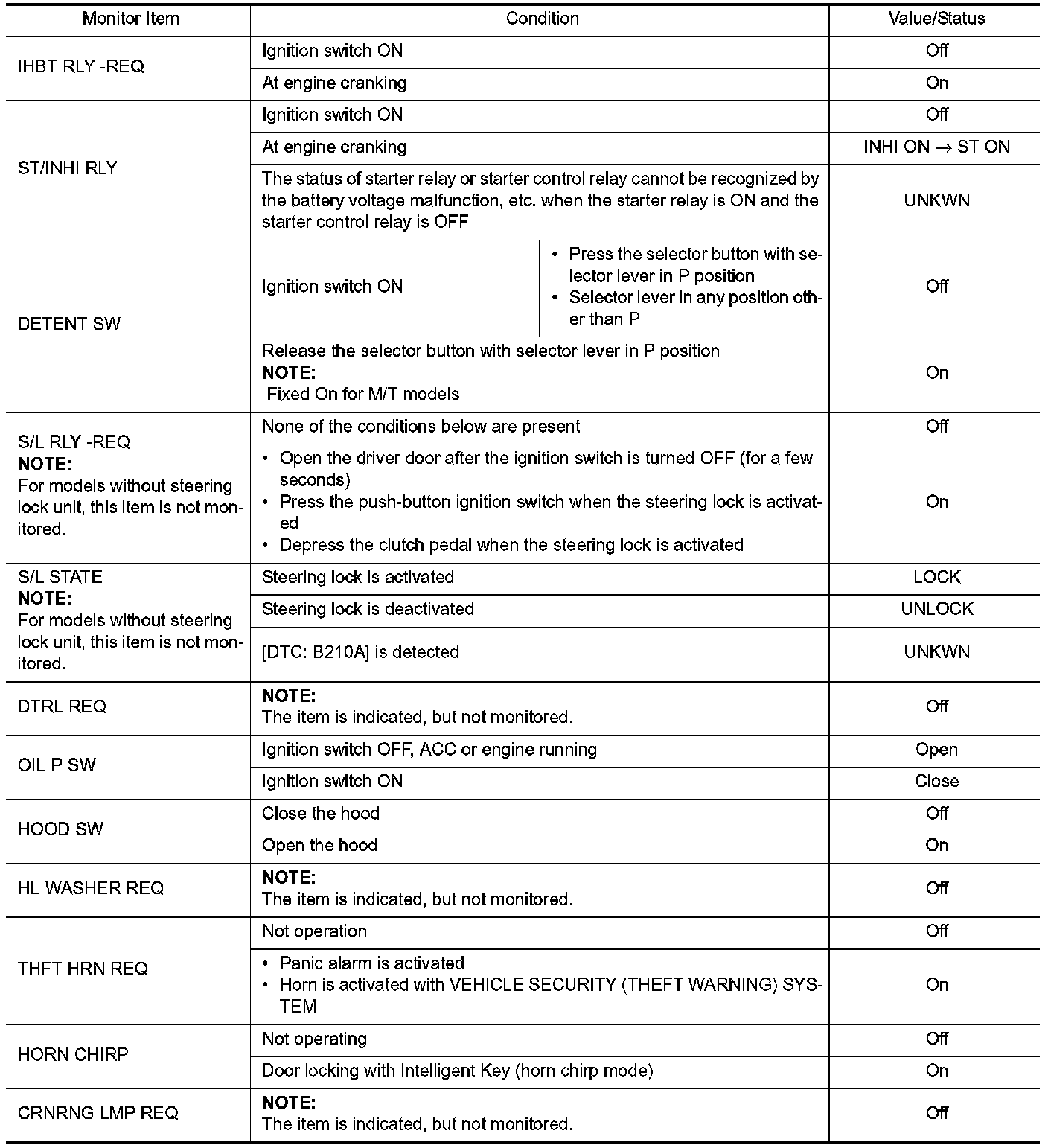

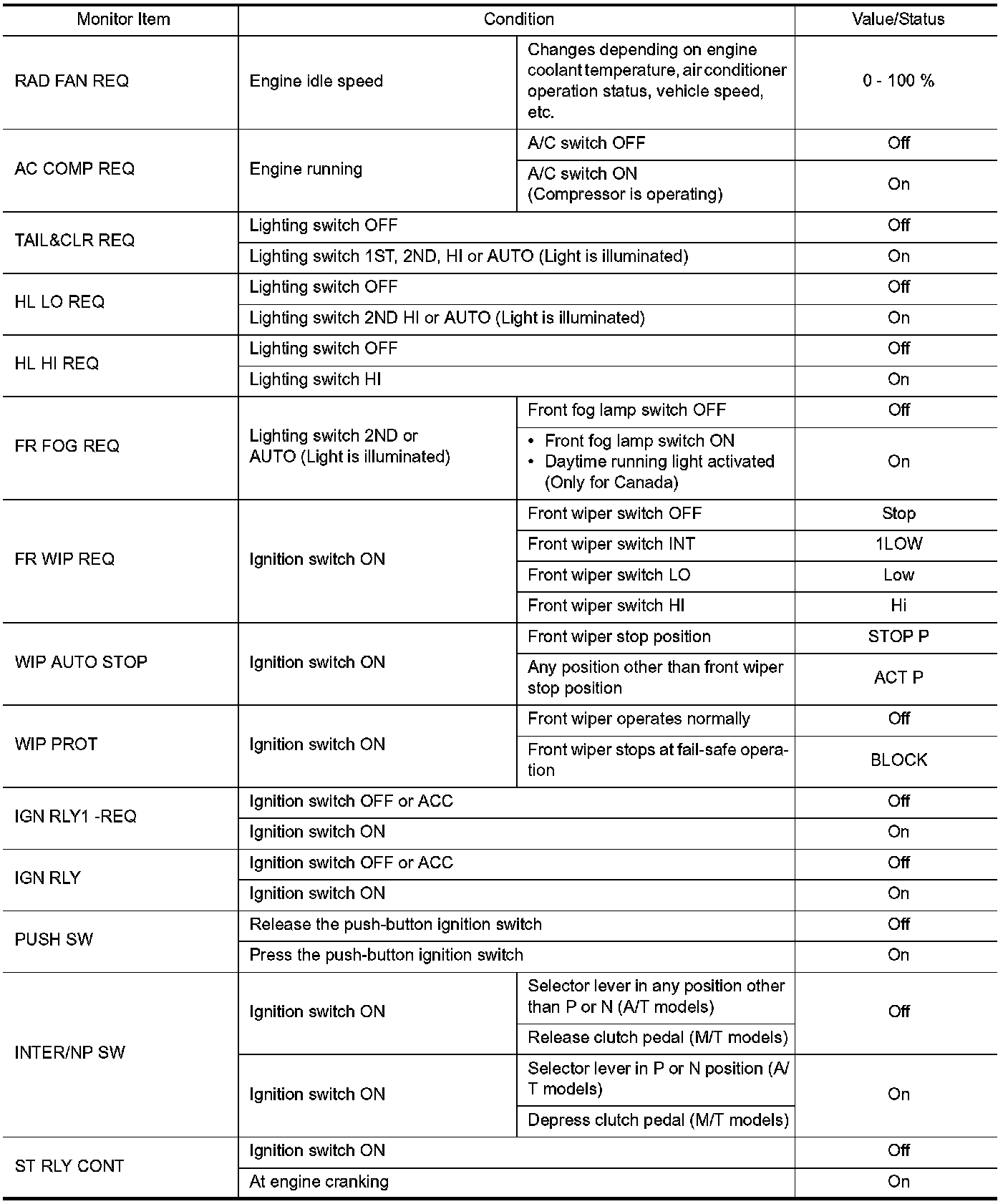

VALUES ON THE DIAGNOSIS TOOL

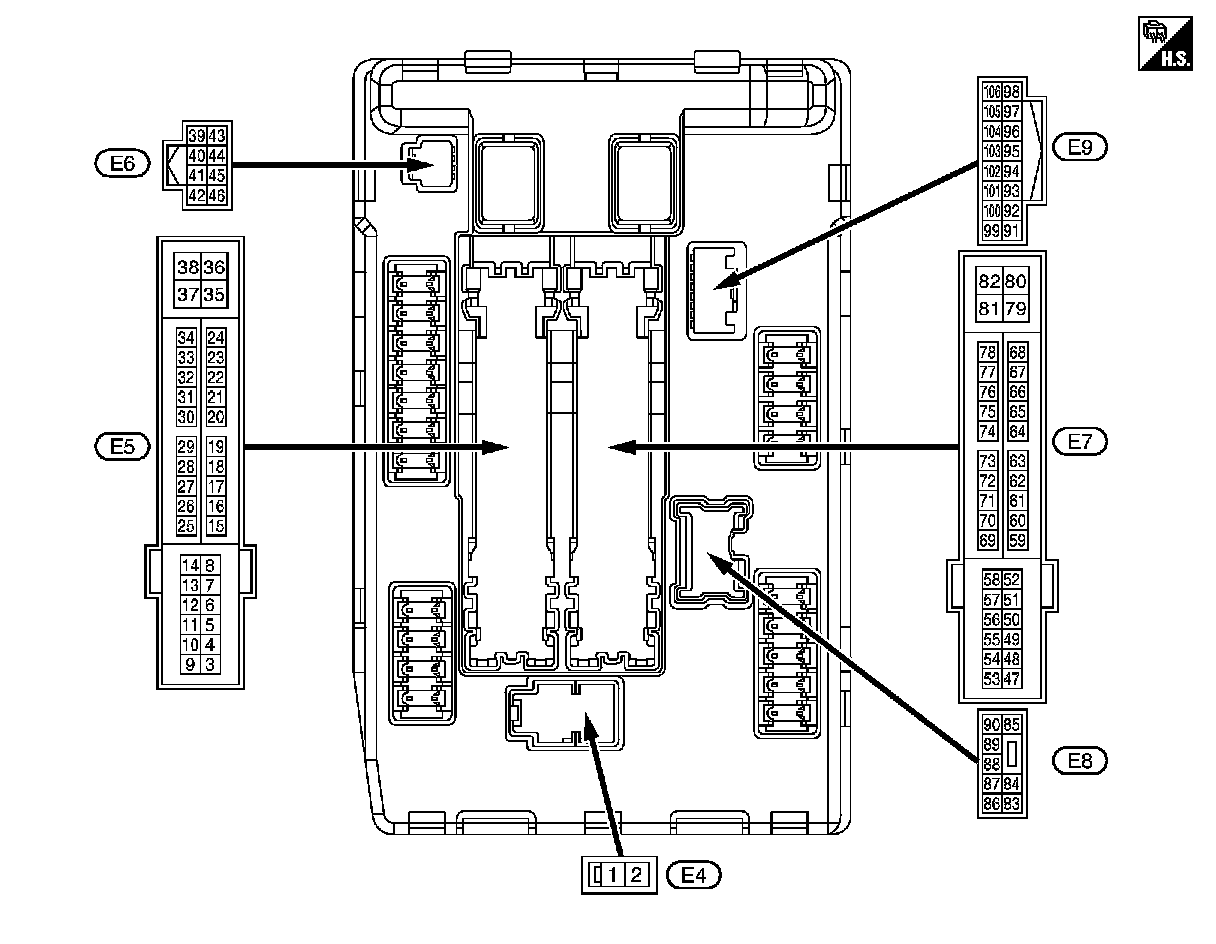

TERMINAL LAYOUT

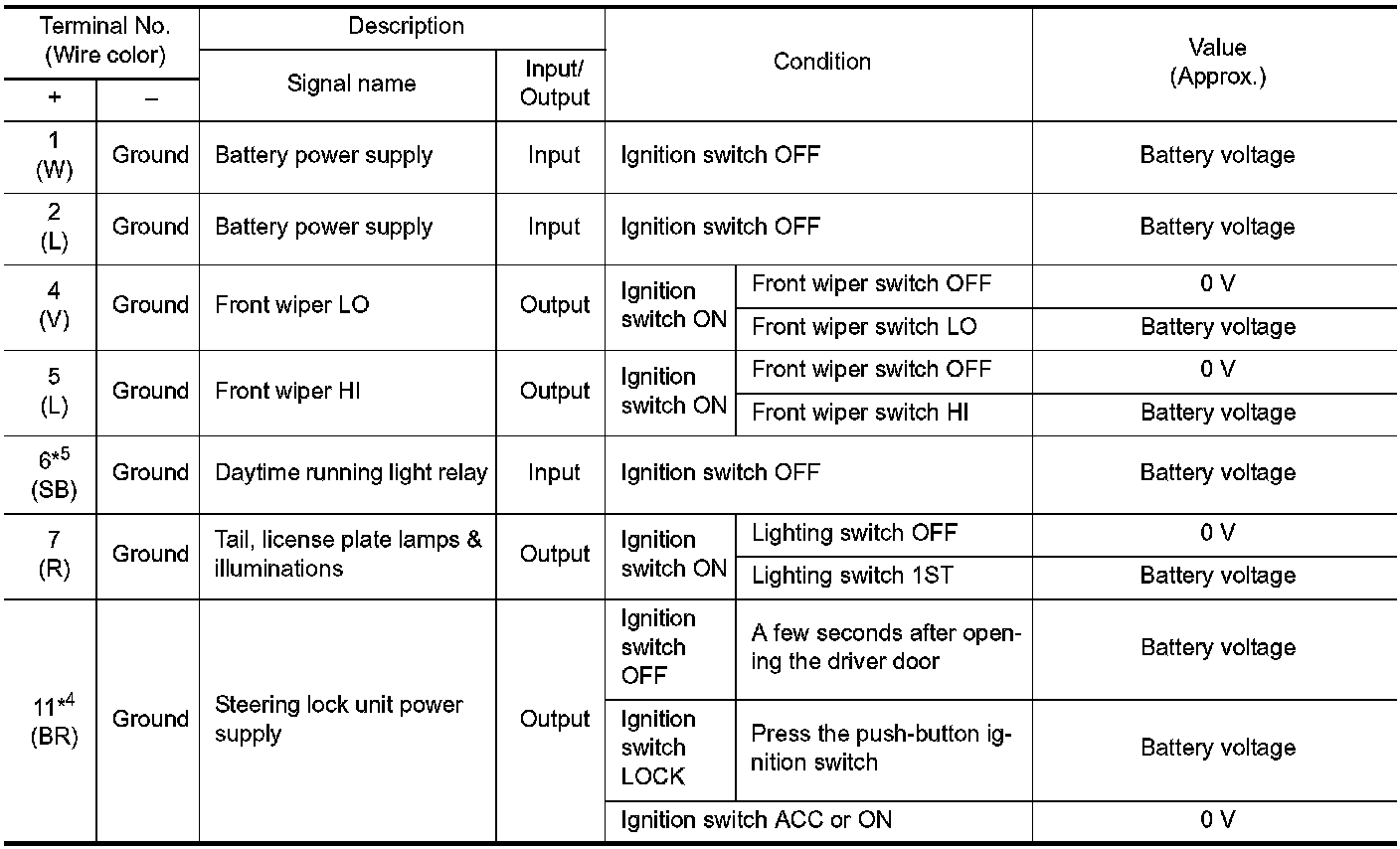

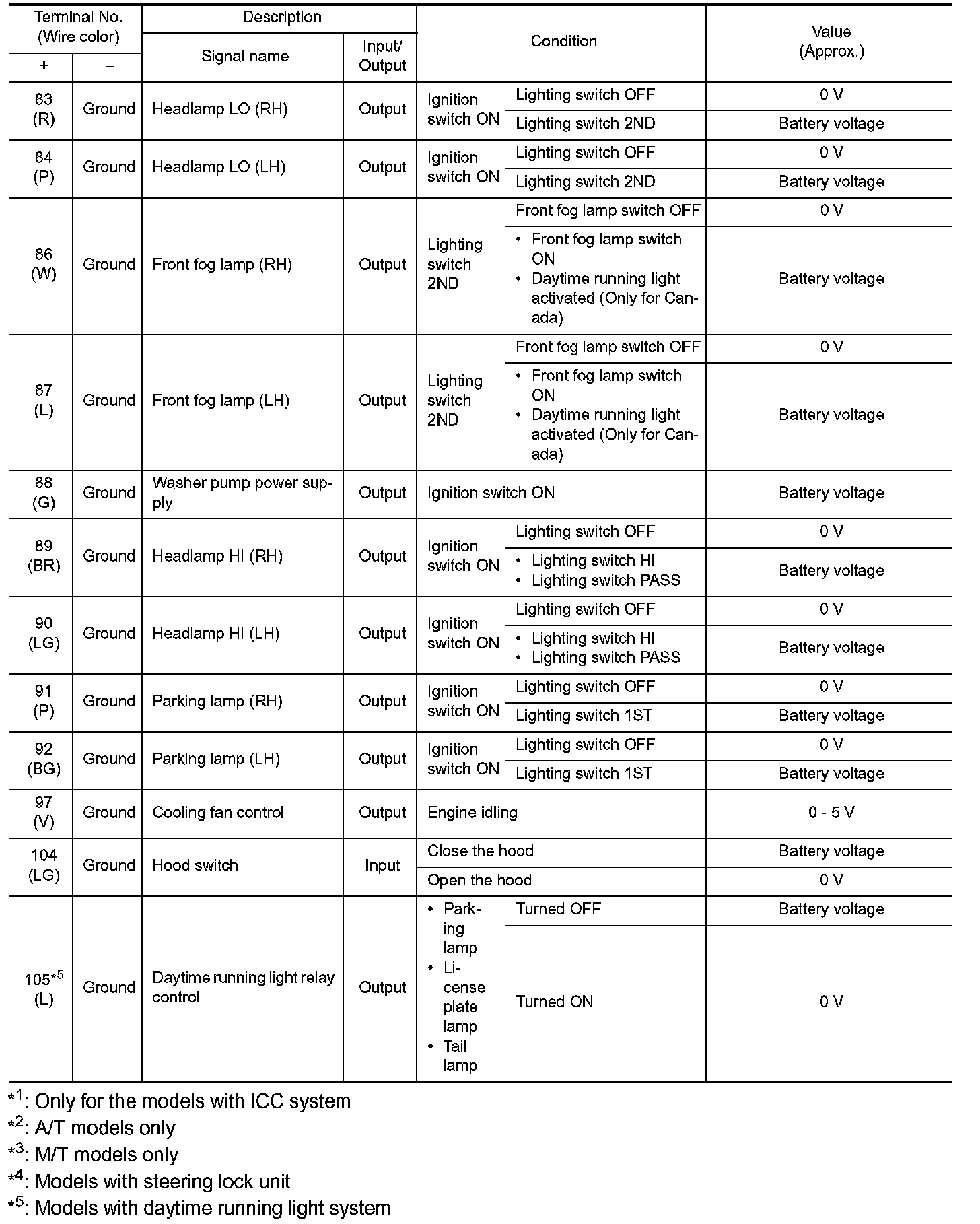

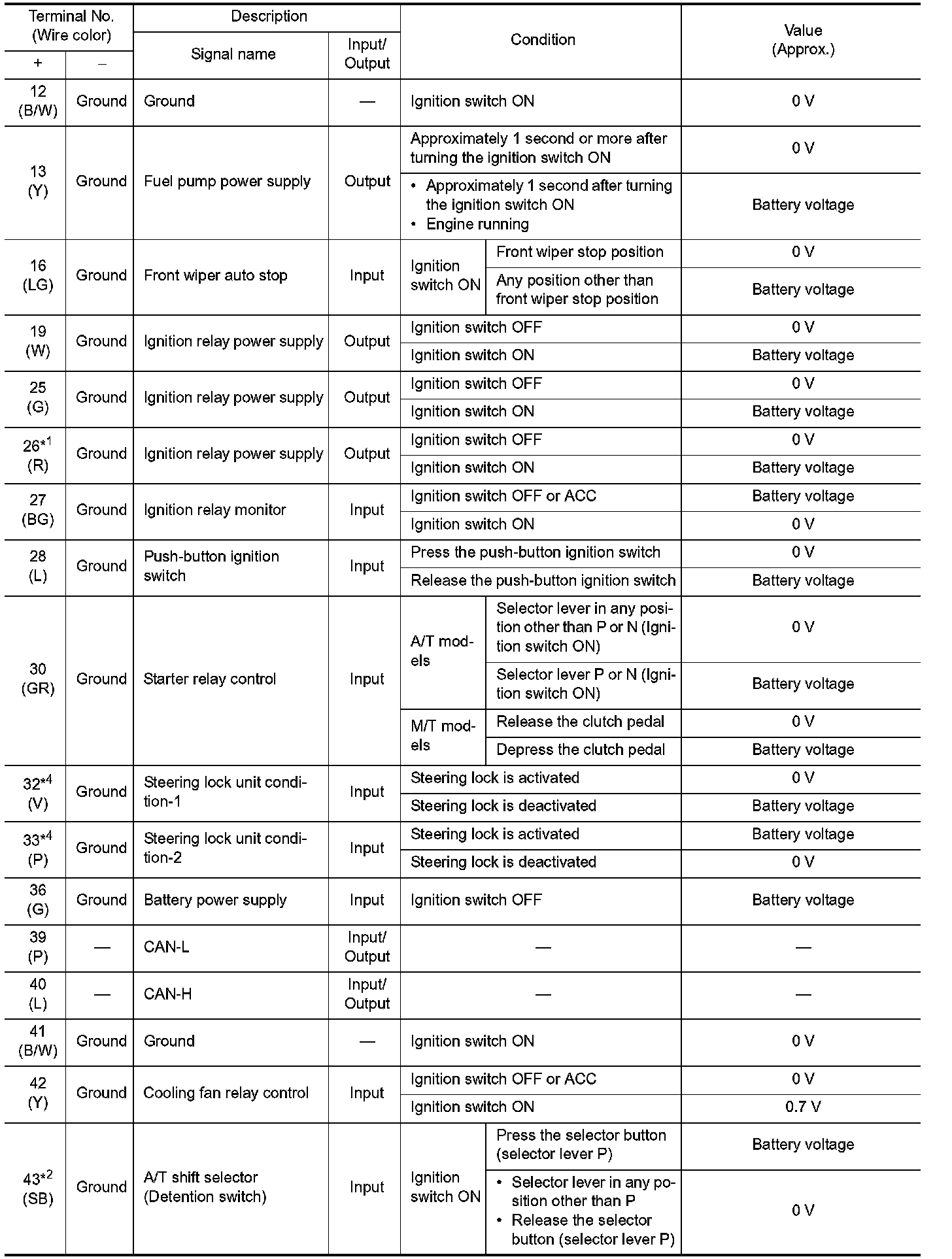

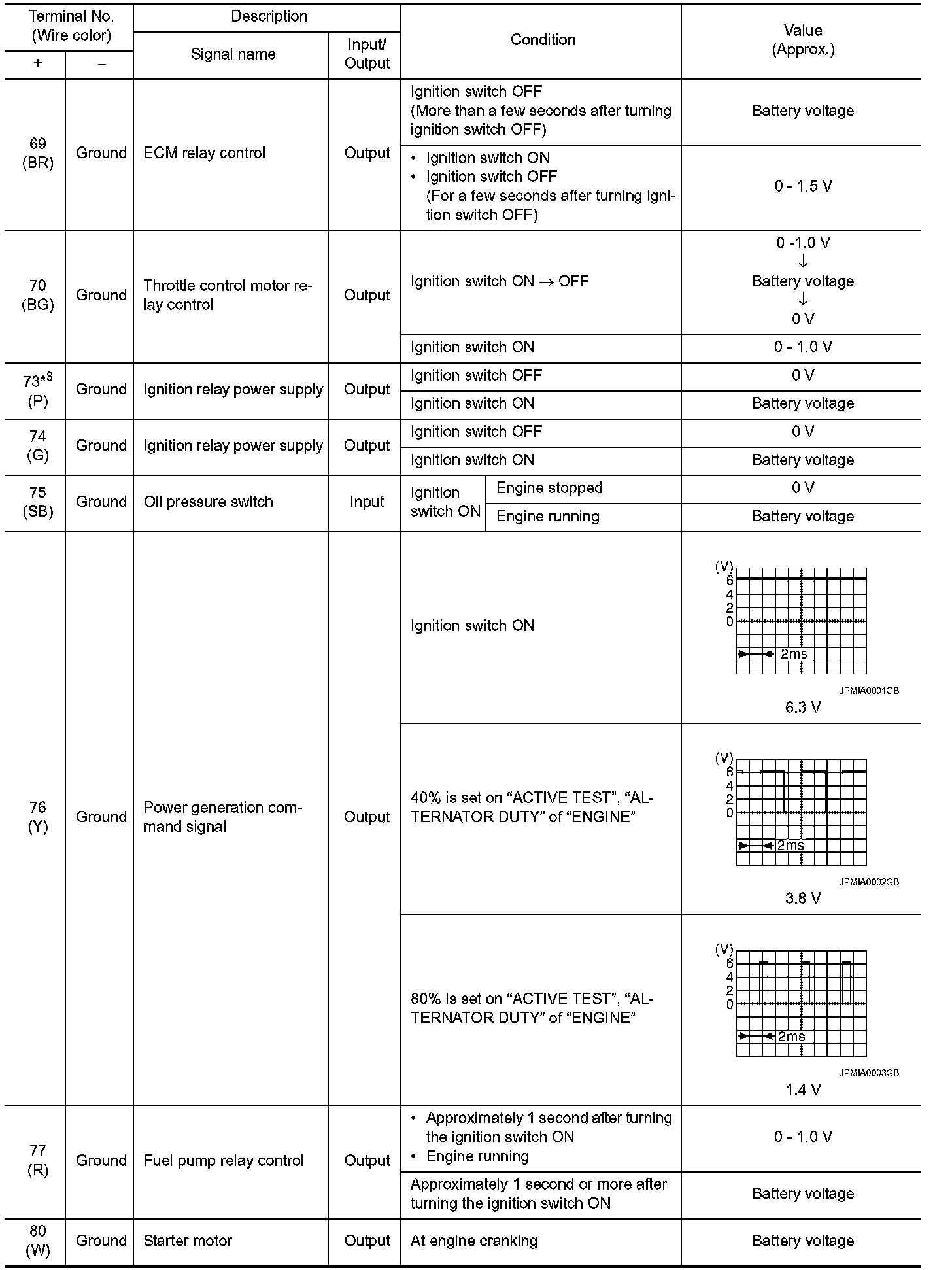

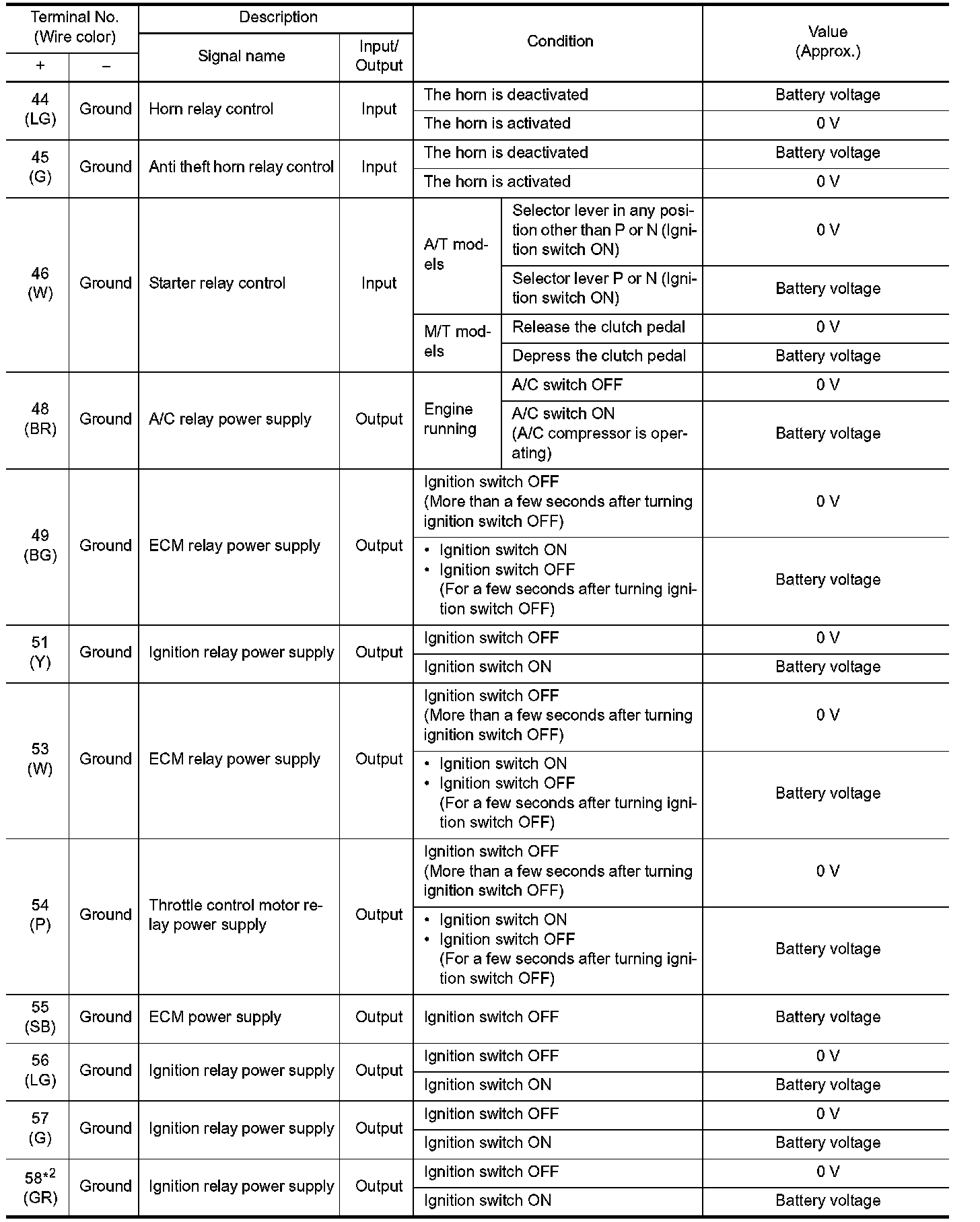

PHYSICAL VALUES


























1
*: Only for the models with ICC system
2
*: A/T models only
3
*: M/T models only
4
*: Models with steering lock unit
5
*: Models with daytime running light system
