Headlamp Function

HEADLAMP FUNCTION

Description

Headlamp lighting when vehicle security system is alarm phase.


Component Function Check


1. CHECK FUNCTION

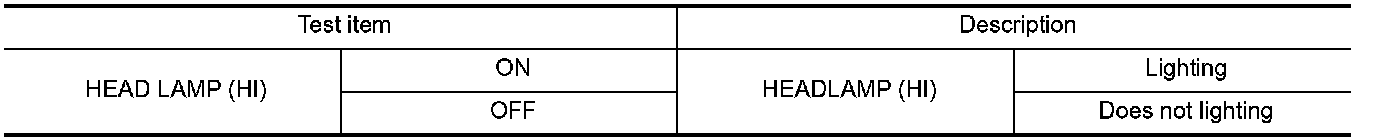

1.Perform "HEAD LAMP(HI)" in the "ACTIVE TEST" mode using CONSULT-III.
2.Check headlamp operation.





Is the inspection result normal?
YES- INSPECTION END
NO- .


Diagnosis Procedure


1. CHECK HEADLAMP OPERATION

.
Is the inspection result normal?
YES- GO TO 2.
NO- repair or replace the malfunctioning parts.

2. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
