P100B
P100A, P100B VVEL SYSTEM
DTC Logic

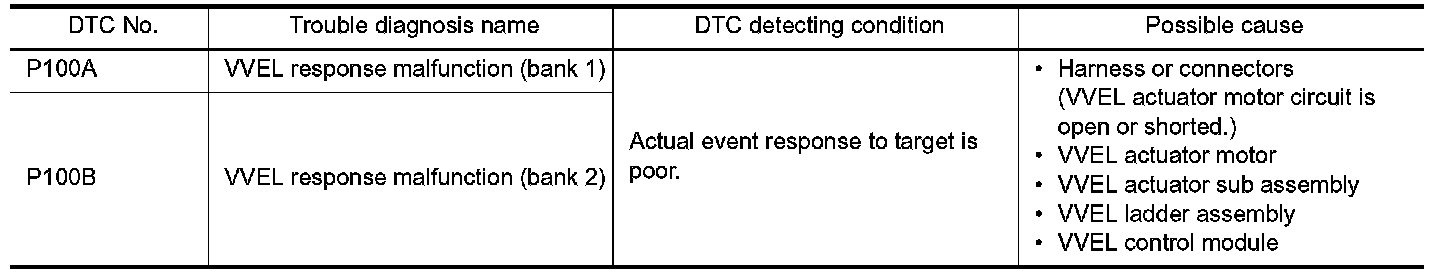

DTC DETECTION LOGIC
NOTE:
If DTC P100A or P100B is displayed with DTC P1090 or P1093, first perform the trouble diagnosis for DTC
P1090 or P1093. P1091.
DTC CONFIRMATION PROCEDURE
1. PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
- GO TO 2.
2. PERFORM DTC CONFIRMATION PROCEDURE
1.Start engine.
2.Depress the accelerator pedal rapidly half or more under no load conditions, and then release it.
3.Wait at idle for 5 seconds or more.
4.Repeat steps 2 to 3 for three times.
5.Check 1st trip DTC.
Is DTC detected?
YES- Go to .
NO- INSPECTION END
Diagnosis Procedure
1. CHECK GROUND CONNECTION
1.Turn ignition switch OFF.
2.Check ground connections M95, E46. Refer to Ground Inspection in Circuit Inspection.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace ground connection.
2. VVEL ACTUATOR MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1.Disconnect VVEL control module harness connector.
2.Disconnect VVEL actuator motor harness connector.

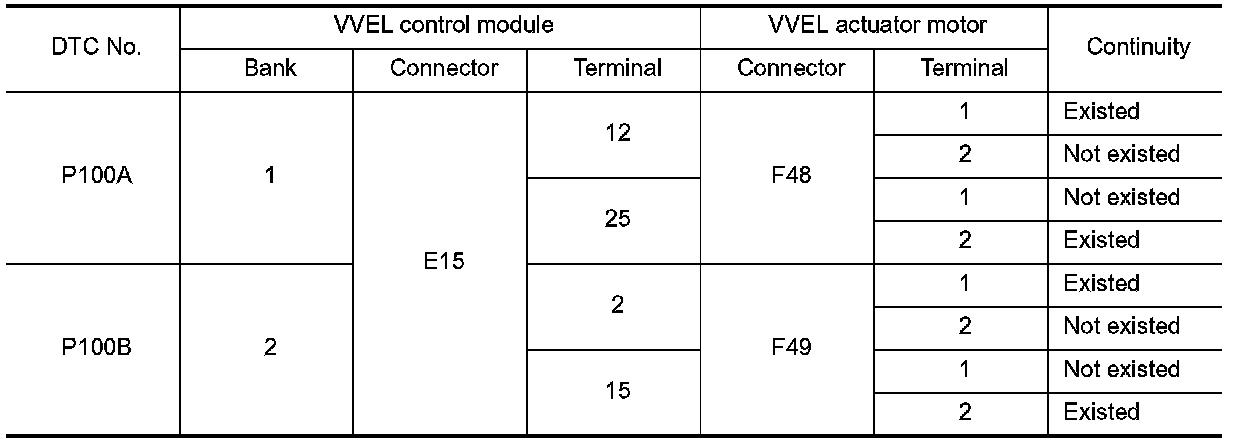

3.Check the continuity between VVEL control module harness connector and VVEL actuator motor harness connector.
4.Also check harness for short to ground and power.
Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors F1, E3
- Harness for open or short between VVEL actuator motor and VVEL control module
- Repair open circuit, short to ground or short to power in harness or connectors.
4. CHECK VVEL ACTUATOR MOTOR
.
Is the inspection result normal?
YES- GO TO 6.
NO- GO TO 5.
5. REPLACE VVEL ACTUATOR SUB ASSEMBLY
1.Replace VVEL actuator sub assembly.
2.Go to .
- INSPECTION END
6. CHECK INTERMITTENT INCIDENT
Intermittent Incident.
Is the inspection result normal?
YES- GO TO 7.
NO- Repair or replace.
7. REPLACE VVEL CONTROL MODULE
1.Replace VVEL control module. Engine Control System.
2.Go to Special Repair Requirement.
- GO TO 8.
8. PERFORM DTC CONFIRMATION PROCEDURE
1.Turn ignition switch ON.
2.Erase DTC.
3.Perform DTC Confirmation Procedure.
See .
Is the DTC P100A or P100B displayed again?
YES- GO TO 9.
NO- INSPECTION END
9. CHECK VVEL ACTUATOR SUB ASSEMBLY
.
Is the inspection result normal?
YES- GO TO 11.
NO- GO TO 10.
10. REPLACE VVEL ACTUATOR SUB ASSEMBLY
1.Replace VVEL actuator sub assembly.
2.Go to .
- INSPECTION END
11. CHECK VVEL LADDER ASSEMBLY
Inspection.
Is the inspection result normal?
YES- GO TO 13.
NO- GO TO 12.
12. REPLACE CYLINDER HEAD, VVEL LADDER ASSEMBLY AND VVEL ACTUATOR SUB ASSEMBLY
1.Replace cylinder head (Disassembly and Assembly) , VVEL ladder assembly and
VVEL actuator sub assembly.
2.Go to .
- INSPECTION END
13. CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
Component Inspection (VVEL ACTUATOR MOTOR)
1. CHECK VVEL ACTUATOR MOTOR
1.Turn ignition switch OFF.
2.Disconnect VVEL actuator motor harness connector.

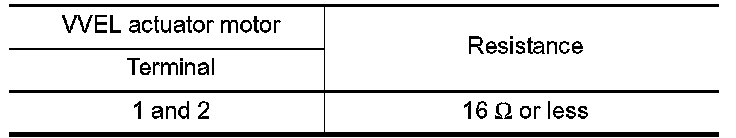

3.Check resistance between VVEL actuator motor terminals as follows.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 2.
2. REPLACE VVEL ACTUATOR SUB ASSEMBLY
1.Replace VVEL actuator sub assembly.
2.Go to .
- INSPECTION END
Component Inspection (VVEL ACTUATOR SUB ASSEMBLY)
1. CHECK VVEL ACTUATOR SUB ASSEMBLY
1.Turn ignition switch OFF.
2.Remove VVEL actuator sub assembly. Disassembly and Assembly.
3.Turn the ball screw shaft to check that it works smoothly.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 2.
2. REPLACE VVEL ACTUATOR SUB ASSEMBLY
1.Replace VVEL actuator sub assembly.
2.Go to .
- INSPECTION END
Special Repair Requirement
1. PERFORM VVEL CONTROL SHAFT POSITION SENSOR ADJUSTMENT
Special Repair Requirement.
- GO TO 2.
2. PERFORM IDLE AIR VOLUME LEARNING
Special Repair Requirement.
- END
