P0717

P0717 INPUT SPEED SENSOR A

Description

The input speed sensor detects input shaft rpm (revolutions per minute). It is located on the input side of the A/T. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.


DTC Logic

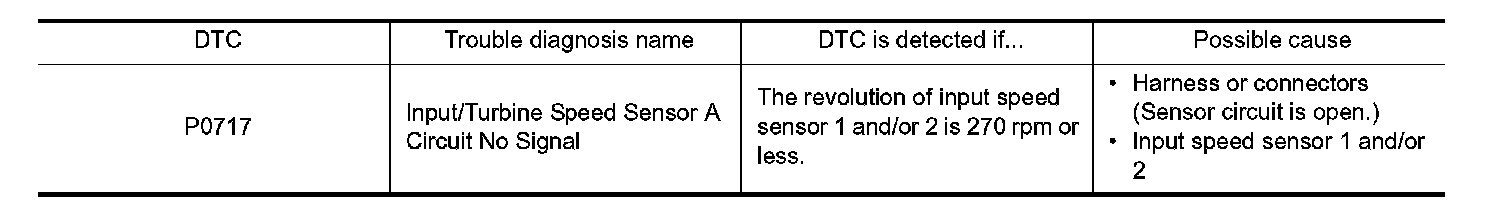

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


CAUTION:
Always drive vehicle at a safe speed.

1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT-III
1.Start the engine.
2.Select "SLCT LVR POSI", "GEAR", "VHCL/S SE-A/T", "W/O THL POS" and "ENGINE SPEED" in "Data
Monitor" in "TRANSMISSION".

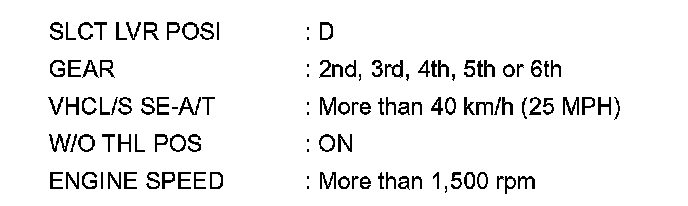

3.Drive vehicle and maintain the following conditions for 5 seconds or more.

CAUTION:
Keep the same gear position.
NOTE:
Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.





4.Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT-III".
Is "P0717" detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
Is the inspection result normal?
YES- Replace control valve & TCM. Removal and Installation.
NO- Repair or replace damaged parts.
