P0710

P0710 TRANSMISSION FLUID TEMPERATURE SENSOR A

Description

The A/T fluid temperature sensor detects the A/T fluid temperature and transmits a signal to the TCM.


DTC Logic

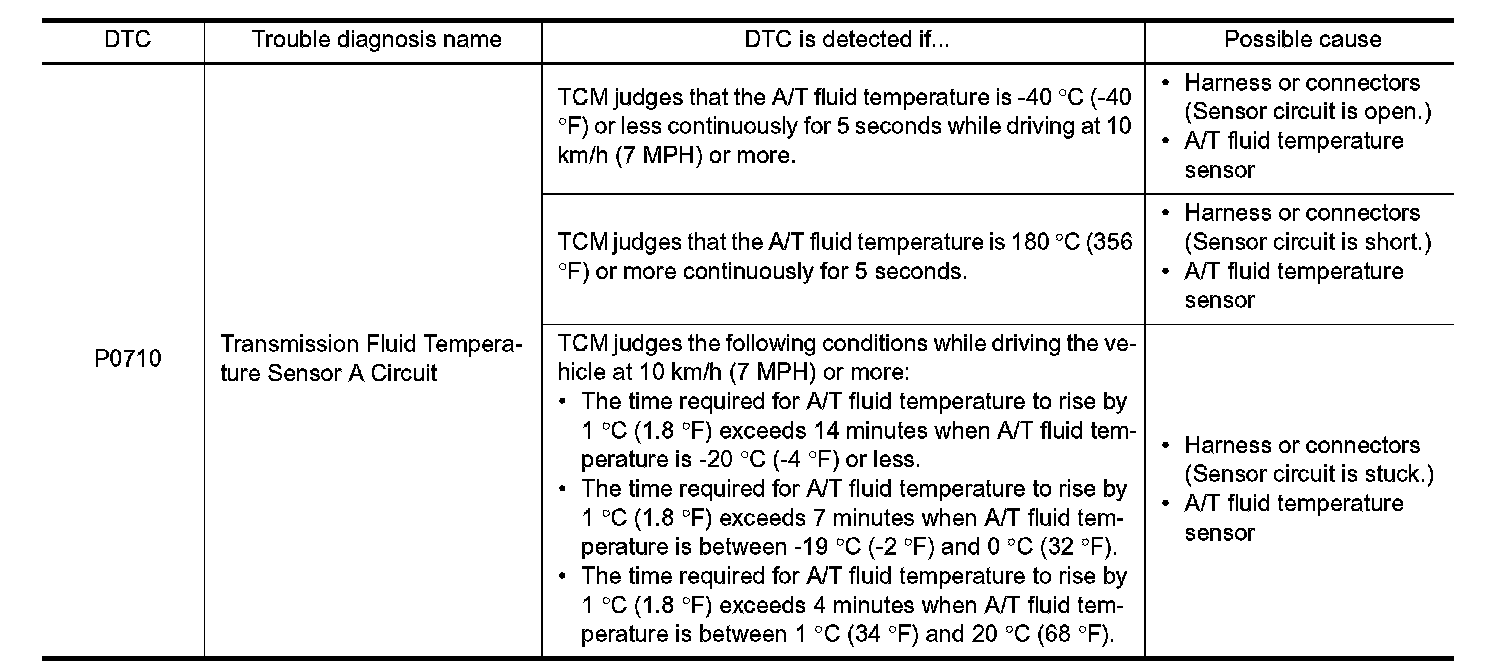

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


CAUTION:
Always drive vehicle at a safe speed.

1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT-III
1.Start the engine.
2.Select "SLCT LVR POSI" and "VHCL/S SE-A/T" in "Data Monitor" in "TRANSMISSION".
3.Drive vehicle and maintain the following conditions for 14 minutes or more.





4.Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT-III".
Is "P0710" detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
Is the inspection result normal?
YES- Replace control valve & TCM. Removal and Installation.
NO- Repair or replace damaged parts.
