C1110, C1153, C1170 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

DTC Logic

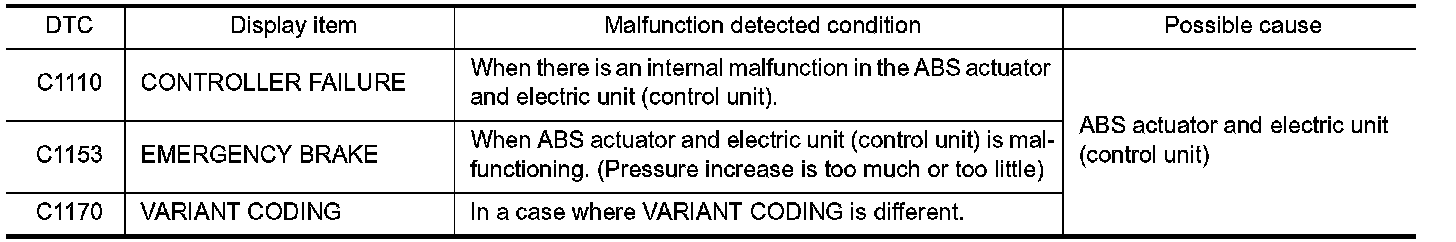

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. DTC REPRODUCTION PROCEDURE

1.Turn the ignition switch ON.
2.Perform self-diagnosis for "ABS" with CONSULT-III.
Is DTC "C1110", "C1153" or "C1170" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. REPLACE ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)


CAUTION:
Replace ABS actuator and electric unit (control unit) when self-diagnostic result shows items other than those applicable.
- Replace ABS actuator and electric unit (control unit). Exploded View.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Special Repair Requirement
