B26EA

Description

When the registered Intelligent Key is carried, the door lock/unlock operation and the push-button ignition switch operation become possible.


DTC Logic

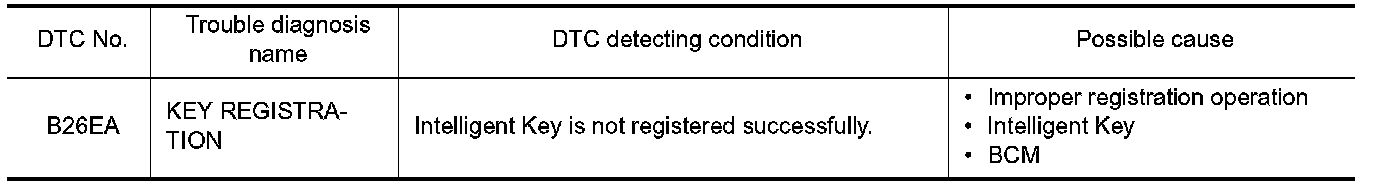

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Perform initialization using CONSULT-III. Reregister all Intelligent Keys.
For initialization and registration of Intelligent Key, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
2.Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES- Go to
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

1.Perform initialization using CONSULT-III. Reregister all Intelligent Keys.
For initialization and registration of Intelligent Key, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
2.Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE INTELLIGENT KEY

1.Replace Intelligent Key. Reregister all Intelligent Keys
2.Perform initialization using CONSULT-III. For initialization, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
3.Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES- Replace BCM. Removal and Installation.
NO- INSPECTION END
