B2617

Description

Located in IPDM E/R, the starter relay runs the starter motor. The starter relay is turned ON by the BCM when the ignition switch is in the START position. IPDM E/R transmits the starter relay ON signal to BCM via CAN
communication.


DTC Logic

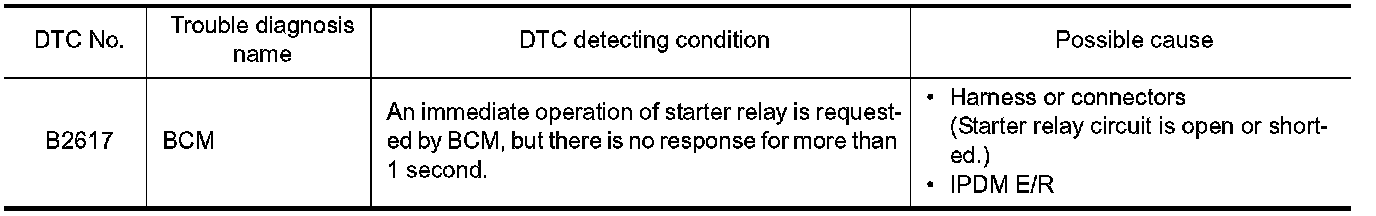

DTC DETECTION LOGIC

NOTE:
- If DTC B2617 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
IPDM E/R.
- If DTC B2617 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
Body Control System.
- If DTC B2617 is displayed with DTC B210E for IPDM E/R, first perform the trouble diagnosis for DTC
B210E. B210E.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON under the following conditions and wait 1 second or more.
-Selector lever is in the P or N position
-Do not depress brake pedal
-Do not depress clutch pedal
2.Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK STARTER RELAY

1.Turn ignition switch ON.

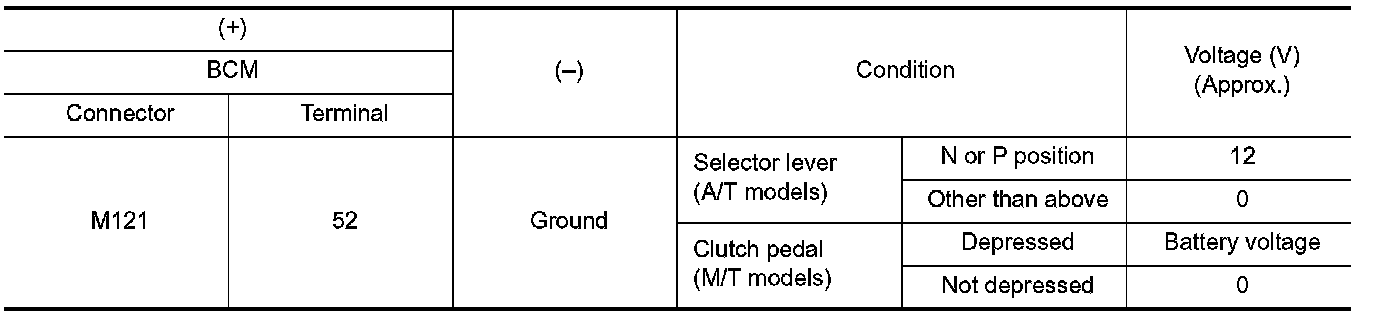

2.Check voltage between BCM harness connector and ground.





Is the measurement value within the specification.
YES- GO TO 3.
NO- GO TO 2.

2. CHECK STARTER RELAY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect BCM connector and IPDM E/R connector.

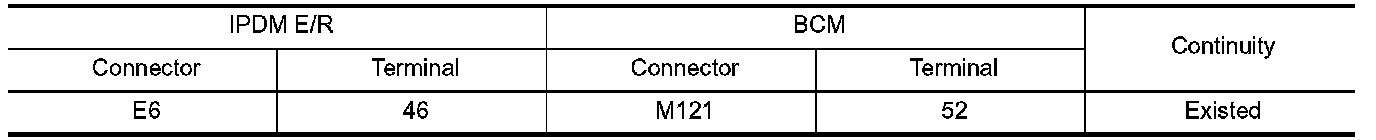

3.Check continuity between IPDM E/R harness connector and BCM harness connector.

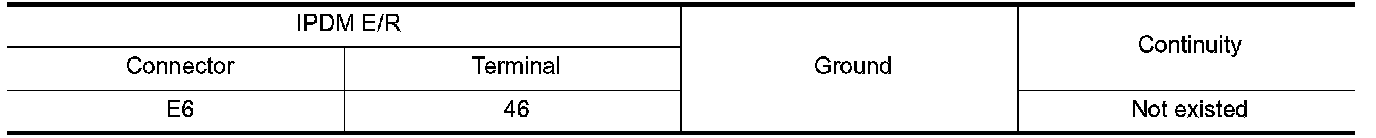

4.Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- Replace IPDM E/R. Removal and Installation.
NO- Repair or replace harness.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
