B260C

Description

The steering lock unit performs the check by itself according to the steering status.


DTC Logic

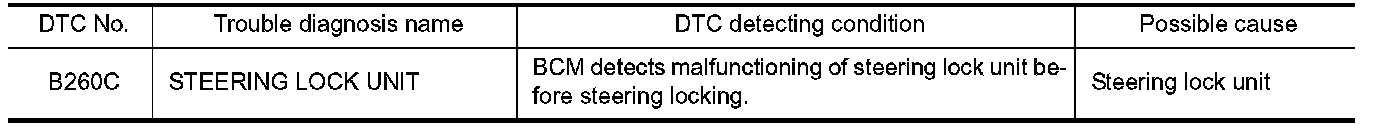

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Turn ignition switch OFF.
3.Press driver side door switch.
4.Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Check "Self-diagnosis result" using CONSULT-III.
3.Touch "ERASE".
4.Perform DTC Confirmation Procedure.
See .
Is the DTC B260C displayed again?
YES- Replace steering lock unit.
NO- INSPECTION END
