B2013

Description

BCM performs the ID verification with the steering lock unit and releases the steering lock if both BCM and steering lock unit ID are same. BCM starts the communication with the steering lock unit when Intelligent Key is carried into the passenger compartment and the push-button ignition switch is pressed.


DTC Logic

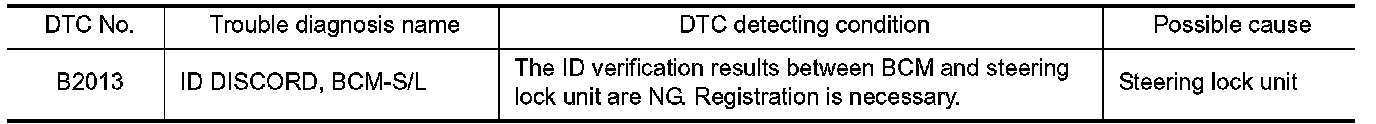

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Lock steering.
2.Press the push-button ignition switch.
3.Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

Perform initialization using CONSULT-III.
For initialization, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
Does steering lock operate?
YES- INSPECTION END
NO- GO TO 2.

2. REPLACE STEERING LOCK UNIT

1.Replace steering lock unit.
2.Perform initialization using CONSULT-III.
For initialization, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
Does steering lock operate?
YES- INSPECTION END
NO- GO TO 3.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
