B1760

DTC Logic

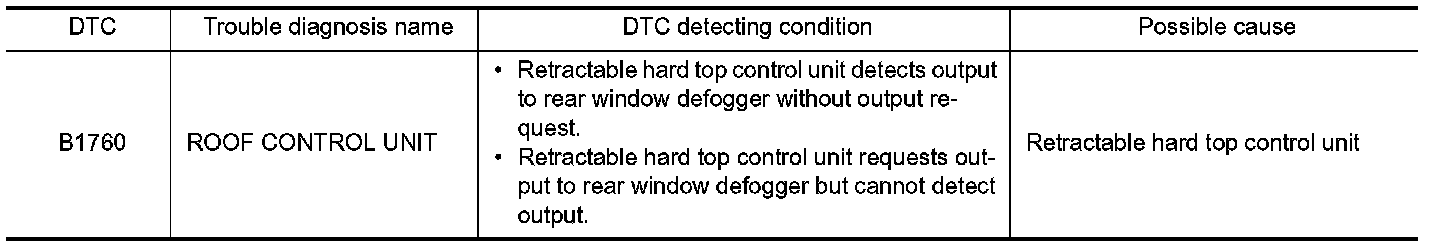

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Turn rear window defogger ON.
3.Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT-III.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK SELF DIAGNOSTIC RESULT

1.Turn ignition switch OFF.
2.Replace retractable hard top control unit. Service and Repair.
3.Perform DTC Confirmation Procedure. B171E.
- INSPECTION END
