B1753

Description

There are 3 states in roof latch. Open and close operations of retractable hard tope system are performed interlocking with other retractable hard top system components. For the detail, refer to {LINK_TO_MANY:0000000006468645}{LINK_TO_MANY:0000000006468646}, "ROOF LATCH
FUNCTION : System Description".


DTC Logic

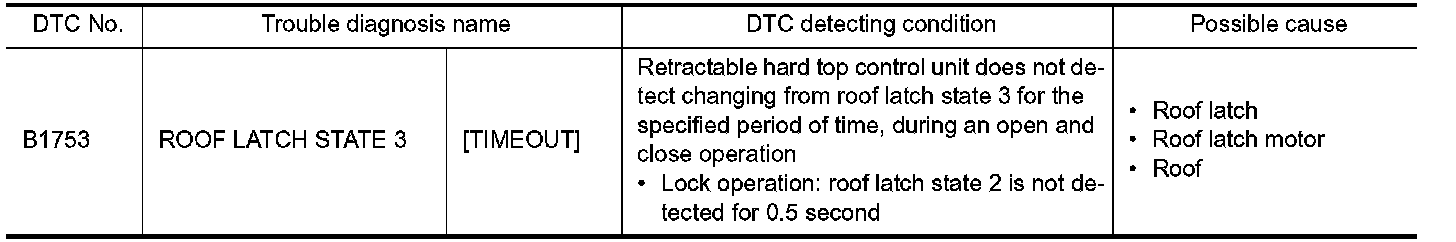

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine.
2.Operate retractable hard top to fully open and fully close.
3.Check "Self-Diagnosis Result" of "RETRACTABLE HARD TOP" using CONSULT-III.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK RETRACTABLE HARD TOP SYSTEM COMPONENT PARTS

Check retractable hard top component parts as bellow deformation, looseness, rattle, interference with other parts, and pinched foreign materials.
- Roof: Refer to.Exploded View.
- Roof latch: Exploded View.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace malfunctioning part.

2. CHECK ROOF LATCH MOTOR

Check roof latch motor. Roof Latch Motor.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Repair or replace malfunctioning part.
