B1740

Description

There are 22 states in hydraulic system. Hydraulic system is controlled using combination of these 22 states and, at the same time, open and close operations of retractable hard top system are performed interlocking with other retractable hard top system components. For the detail, refer to {LINK_TO_MANY:0000000006468643}{LINK_TO_MANY:0000000006468644}, "HYDRAULIC SYSTEM
CONTROL FUNCTION : System Description".


DTC Logic

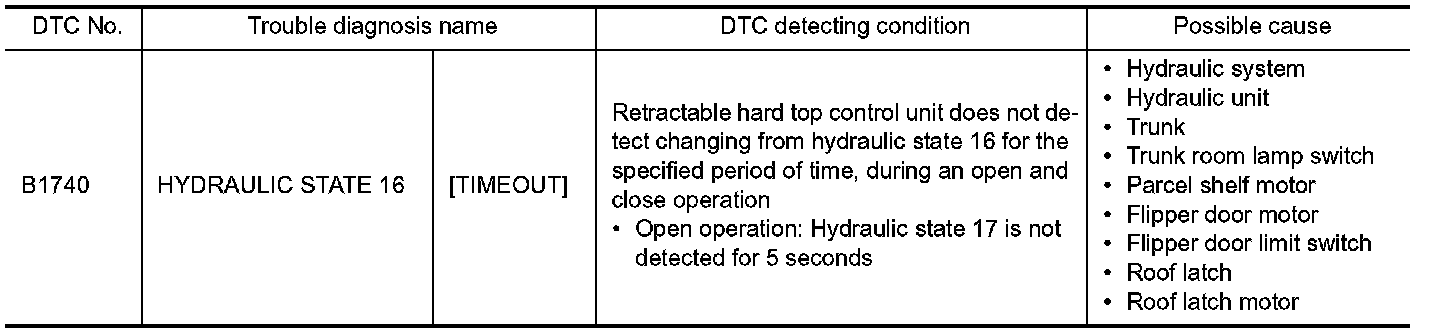

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine.
2.Operate retractable hard top to fully open and fully close.
3.Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT-III.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK RETRACTABLE HARD TOP SYSTEM COMPONENT PARTS

Check retractable hard top component parts as bellow deformation, looseness, rattle, interference with other parts, and pinched foreign materials.
- Hydraulic system: Exploded View.
- Trunk lid: Exploded View.
- Parcel shelf: Exploded View.
- Flipper door: Exploded View.
- Roof: Exploded View.
- Roof latch assy: Exploded View.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace malfunctioning part.

2. CHECK TRUNK ROOM LAMP SWITCH

Check trunk room lamp switch. Trunk Room Lamp Switch.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace malfunctioning part.

3. CHECK TRUNK ROOM LAMP SWITCH SIGNAL

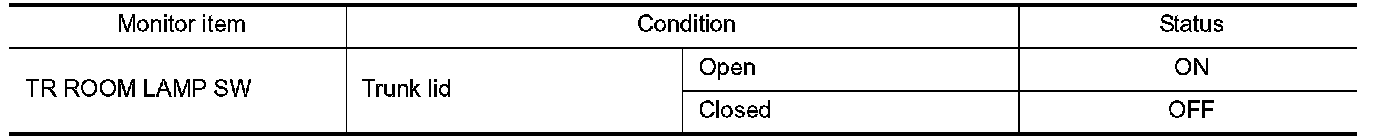

Check "TR ROOM LAMP SW" in "DATA MONITOR" mode of "RETRACTABLE HARD TOP" using CONSULT-III.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.

4. CHECK TRUNK ROOM LAMP SWITCH CIRCUIT

1.Disconnect trunk room lamp switch connector, BCM connector trunk closure control unit connector and retractable hard top control unit connector.

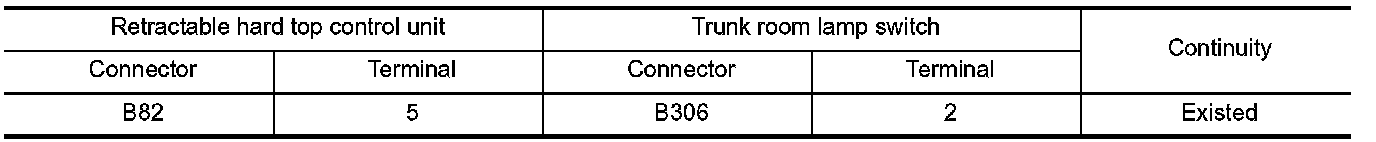

2.Check continuity between retractable hard top control unit harness connector and trunk room lamp switch harness connector.





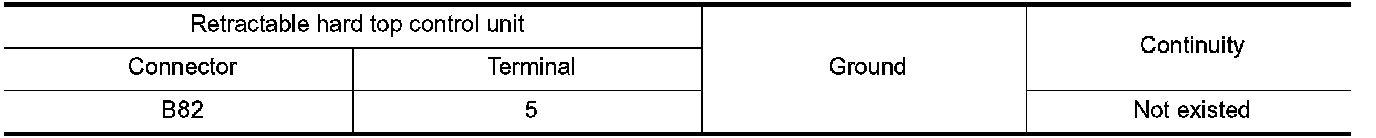

3.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- Check trunk lid auto closure system. Diagnosis Procedure.
NO- Repair harness or connector.

5. CHECK HYDRAULIC PUMP POWER SUPPLY RELAY

Check hydraulic pump power supply relay. Hydraulic Pump Motor Power Supply Relay.
Is the inspection result normal?
YES- GO TO 6.
NO- Replace hydraulic unit. Removal and Installation.

6. CHECK PARCEL SHELF MOTOR

Check parcel shelf motor. Parcel Shelf Motor (Draw) (DRAW) and Parcel Shelf Motor (Rotation)(ROTATION).
Is the inspection result normal?
YES- GO TO 7.
NO- Replace parcel shelf. Removal and Installation.

7. CHECK FLIPPER DOOR MOTOR

Check flipper door motor. Flipper Door Motor.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace flipper door. Removal and Installation.

8. CHECK FLIPPER DOOR LIMIT SWITCH

Check flipper door limit switch. Flipper Door Motor.
Is the inspection result normal?
YES- GO TO 9.
NO- Replace flipper door. Removal and Installation.

9. CHECK ROOF LATCH MOTOR

Check roof latch motor. Roof Latch Motor.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace roof latch motor. Removal and Installation.
