B1702

DTC Logic

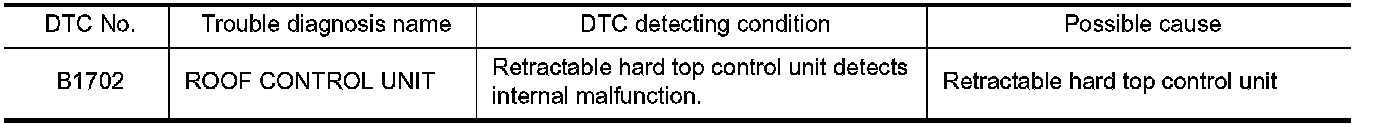

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT-III.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK SELF DIAGNOSTIC RESULT

1.Turn ignition switch OFF.
2.Replace retractable hard top control unit. Service and Repair.
3.Perform DTC Confirmation Procedure. .
- INSPECTION END
