B1211

Description

The seat belt pre-tensioner, door-mounted curtain air bag and pop-up roll bar are activated by the air bag diagnosis sensor unit signal at the time of rollover.


DTC Logic

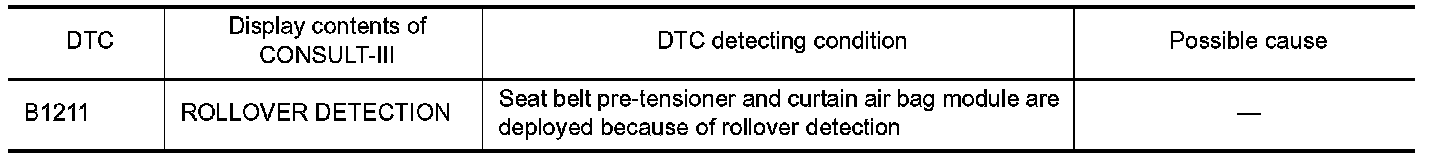

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. CHECK SELF-DIAG RESULT

With CONSULT-III
1.Turn ignition switch ON.
2.Perform "AIR BAG" Self Diagnostic Result.
Without CONSULT-III
1.Turn ignition switch ON.
2.Check the air bag warning lamp status. Diagnosis With Air Bag Warning Lamp.
NOTE:
SRS does not enter the diagnosis mode if no malfunction is detected in the user mode.
Is malfunctioning part detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait at least 3
minutes or more. (To discharge backup capacitor.)
- Never use unspecified tester or other measuring device.

1. PERFORM COLLISION DIAGNOSIS

Perform collision diagnosis.When SRS Is Activated In A Collision or When SRS Is Not Activated In A Collision.
Is collision diagnosis complete?
YES- GO TO 2.
NO- INSPECTION END

2. FINAL INSPECTION

Perform "AIR BAG" Self Diagnostic Result.
Is the inspection result normal?
YES- INSPECTION END
NO- Perform diagnosis of applicable DTC.Testing and Inspection.
