B1130

Description

In case of side collision where acceleration is more than the specified level, the ignition materials are ignited by electric ignition system. The system burns the gas generating materials resulting in a chemical reaction.
This generates hot gases that flow into the air bag through a filter and expand the bag.


DTC Logic

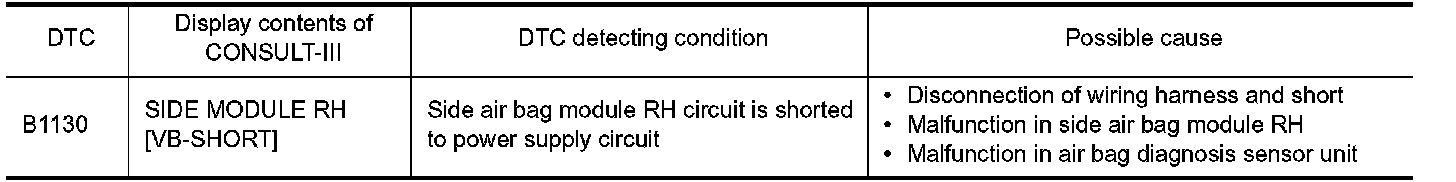

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. CHECK SELF-DIAG RESULT

With CONSULT-III
1.Turn ignition switch ON.
2.Perform "AIR BAG" Self Diagnostic Result.
Without CONSULT-III
1.Turn ignition switch ON.
2.Check the air bag warning lamp status. Diagnosis With Air Bag Warning Lamp.
NOTE:
SRS does not enter the diagnosis mode if no malfunction is detected in the user mode.
Is malfunctioning part detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait at least 3
minutes or more. (To discharge backup capacitor.)
- Never use unspecified tester or other measuring device.

1. CHECK HARNESS CONNECTOR

Check the harness connector.
Is the inspection result normal?
YES- GO TO 2.
NO- Replace harness connector.

2. CHECK WIRING HARNESS

Check the wiring harness externals.
Is the inspection result normal?
YES- GO TO 3.
NO- Replace wiring harness.

3. REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

1.Replace air bag diagnosis sensor unit. Exploded View.
2.Perform DTC confirmation procedure. .
Is DTC detected?
YES- GO TO 4.
NO- INSPECTION END

4. REPLACE SIDE AIR BAG MODULE

1.Replace side air bag module RH. Exploded View.
2.Perform DTC confirmation procedure. .
Is DTC detected?
YES- GO TO 1.
NO- INSPECTION END
