Washer Switch

WASHER SWITCH


Component Inspection

1.CHECK WIPER SWITCH
1. Turn the ignition switch OFF.
2. Disconnect combination switch connector.

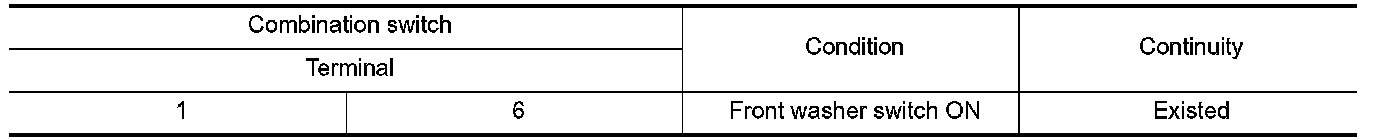

3. Check continuity between the combination switch terminals.





Is the inspection result normal?
YES - Washer switch is normal.
NO - Replace washer switch.
