Rear RH

POWER WINDOW MOTOR:_:REAR RH





Component Function Check
1. CHECK POWER WINDOW MOTOR CIRCUIT
Check rear power window motor RH operation with power window main switch or rear power window switch
RH.
Is the inspection result normal?
YES - Rear power window motor RH is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK REAR POWER WINDOW MOTOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH connector.
3. Turn ignition switch ON.

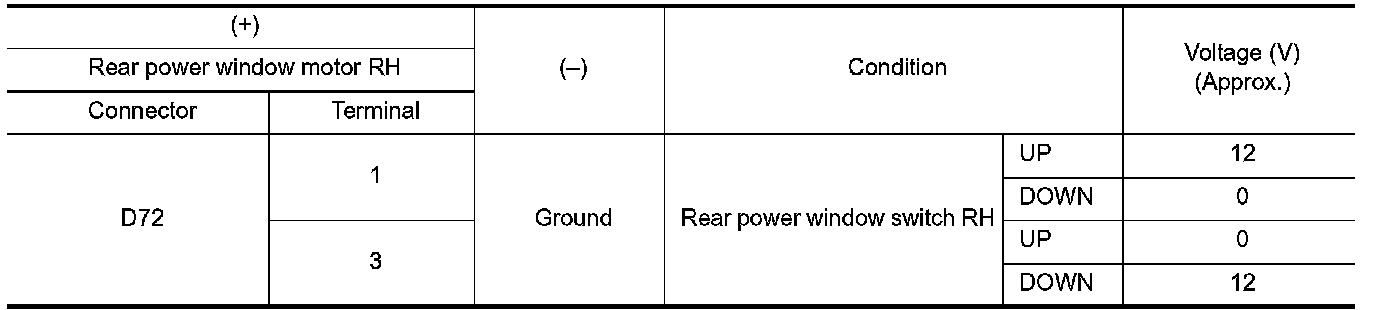

4. Check voltage between rear power window motor RH harness connector and ground.





Is the inspection result normal?
YES - Replace rear power window motor RH. Removal And Installation.
NO - GO TO 2.
2.CHECK POWER WINDOW MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH connector.

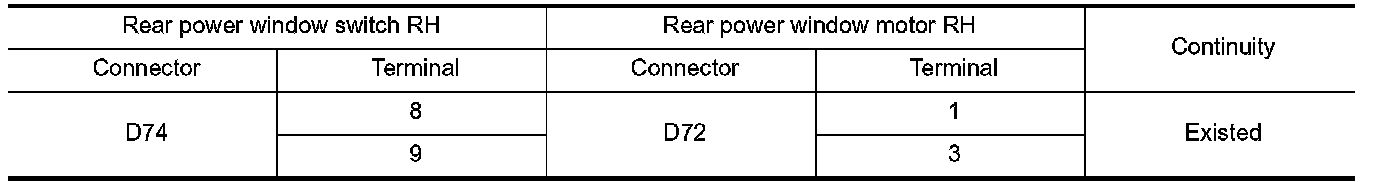

3. Check continuity between rear power window switch RH harness connector and rear power window motor
RH harness connector.

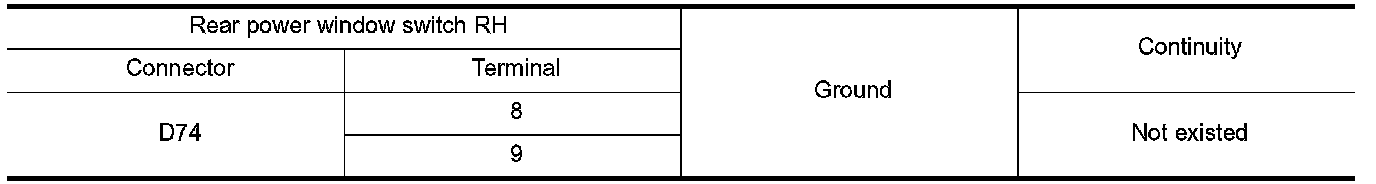

4. Check continuity between rear power window switch RH harness connector and ground.





Is the inspection result normal?
YES - Replace rear power window switch RH. Removal And Installation.
NO - Repair or replace harness.
