POWER WINDOW MOTOR:_:PASSENGER SIDE





Component Function Check
1. CHECK POWER WINDOW MOTOR CIRCUIT
Check front power window motor (passenger side) operation with power window main switch or front power window switch (passenger side).
Is the inspection result normal?
YES - Front power window motor (passenger side) is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK FRONT POWER WINDOW MOTOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front power window motor (passenger side) connector.
3. Turn ignition switch ON.

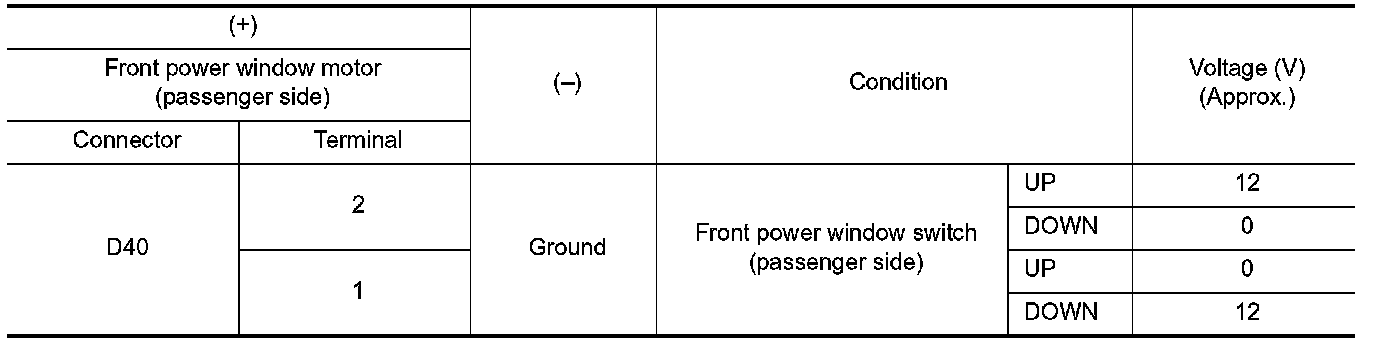

4. Check voltage between front power window motor (passenger side) harness connector and ground.





Is the inspection result normal?
YES - Replace front power window motor (passenger side). Removal And Installation.
NO - GO TO 2.
2.CHECK POWER WINDOW MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) connector.

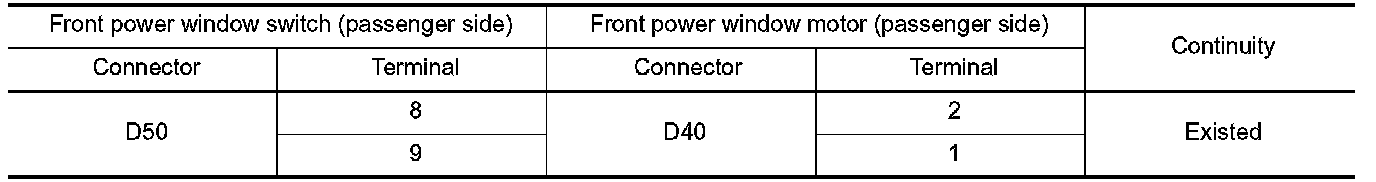

3. Check continuity between front power window switch (passenger side) harness connector and front power window motor (passenger side) harness connector.

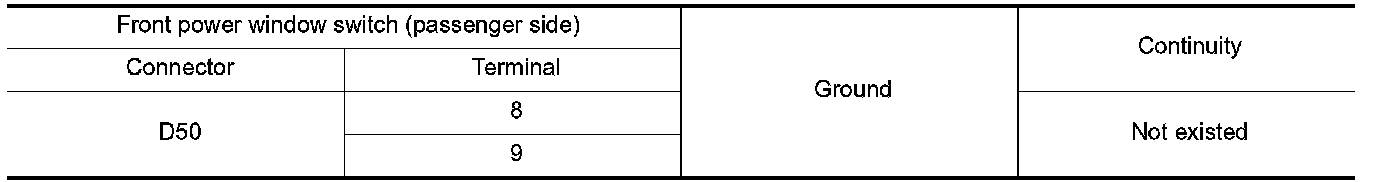

4. Check continuity between front power window switch (passenger side) connector and ground.





Is the inspection result normal?
YES - Replace front power window switch (passenger side). Front Power Window Switch.
NO - Repair or replace harness.
