Driver Side

POWER WINDOW MOTOR:_:DRIVER SIDE





Component Function Check
1.CHECK POWER WINDOW MOTOR CIRCUIT
Check front power window motor (driver side) operation with power window main switch.
Is the inspection result normal?
YES - Front power window motor (driver side) is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK FRONT POWER WINDOW MOTOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.

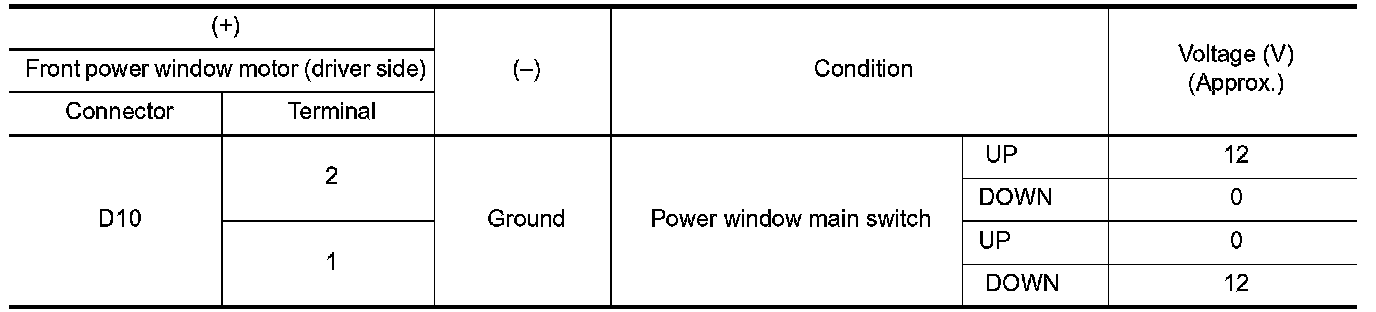

4. Check voltage between front power window motor (driver side) harness connector and ground.





Is the inspection result normal?
YES - Replace front power window motor (driver side). Removal And Installation.
NO - GO TO 2.
2.CHECK POWER WINDOW MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.

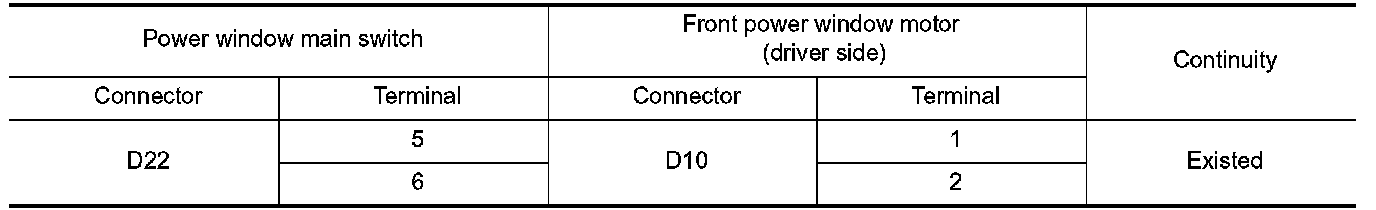

3. Check continuity between power window main switch harness connector and front power window motor
(driver side) harness connector.





4. Check continuity between power window main switch harness connector and ground.





Is the inspection result normal?
YES - Replace power window main switch. Front Power Window Switch.
NO - Repair or replace harness.
