Front Power Window Switch

FRONT POWER WINDOW SWITCH

Reference Value

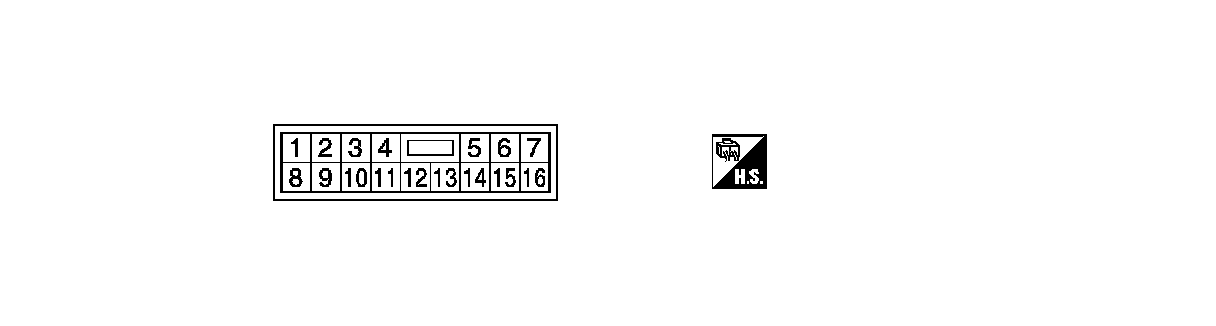

TERMINAL LAYOUT

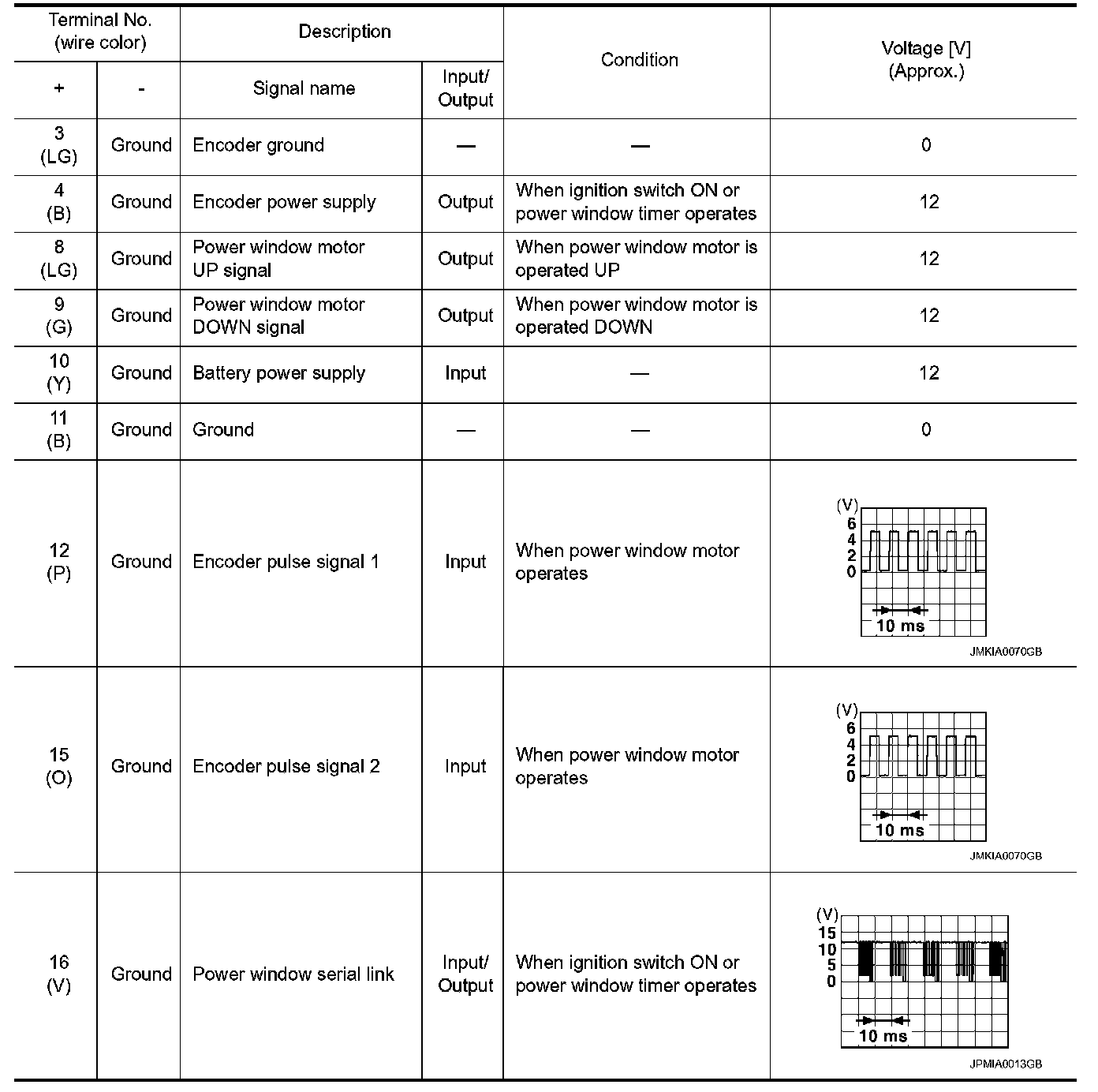

PHYSICAL VALUES
FRONT POWER WINDOW SWITCH
