Component Function Check

POWER WINDOW SERIAL LINK:_:FRONT POWER WINDOW SWITCH (PASSENGER SIDE) FRONT POWER WINDOW SWITCH (PASSENGER SIDE)





Component Function Check
1.CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
With CONSULT-III

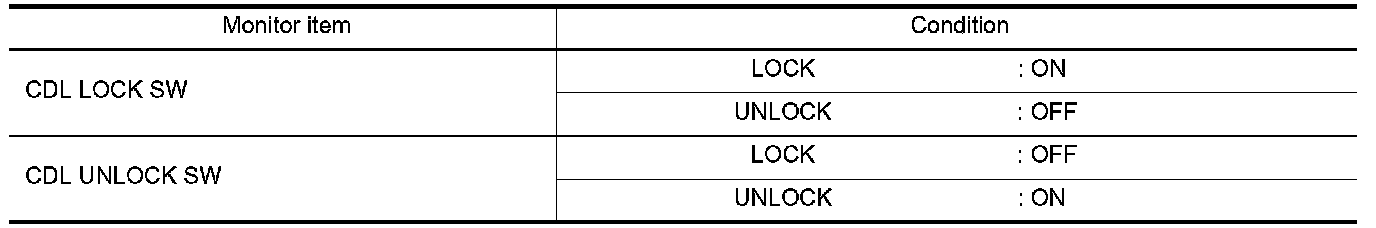

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT-III. Consult-III Function.





Is the inspection result normal?
YES - Power window serial link is OK.
NO - Front Power Window Switch (Passenger Side).
