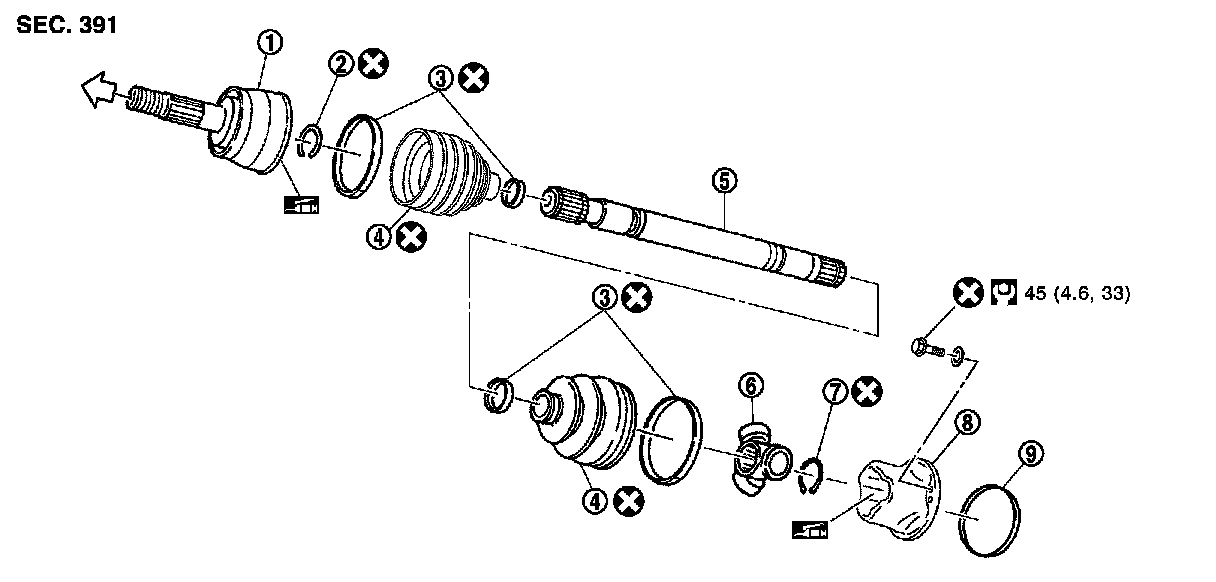

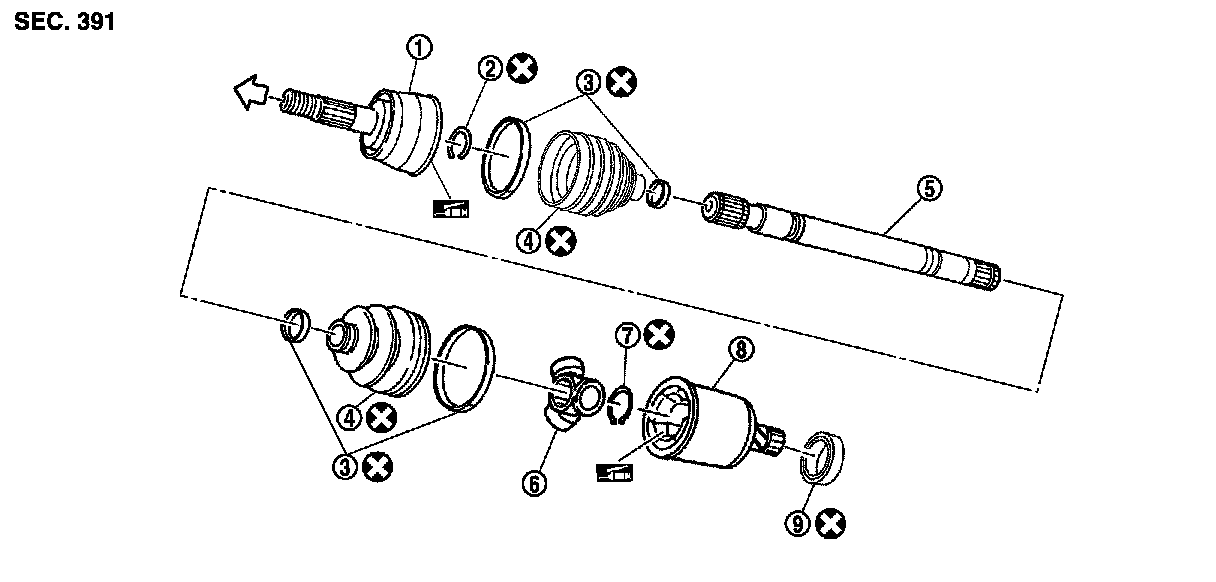

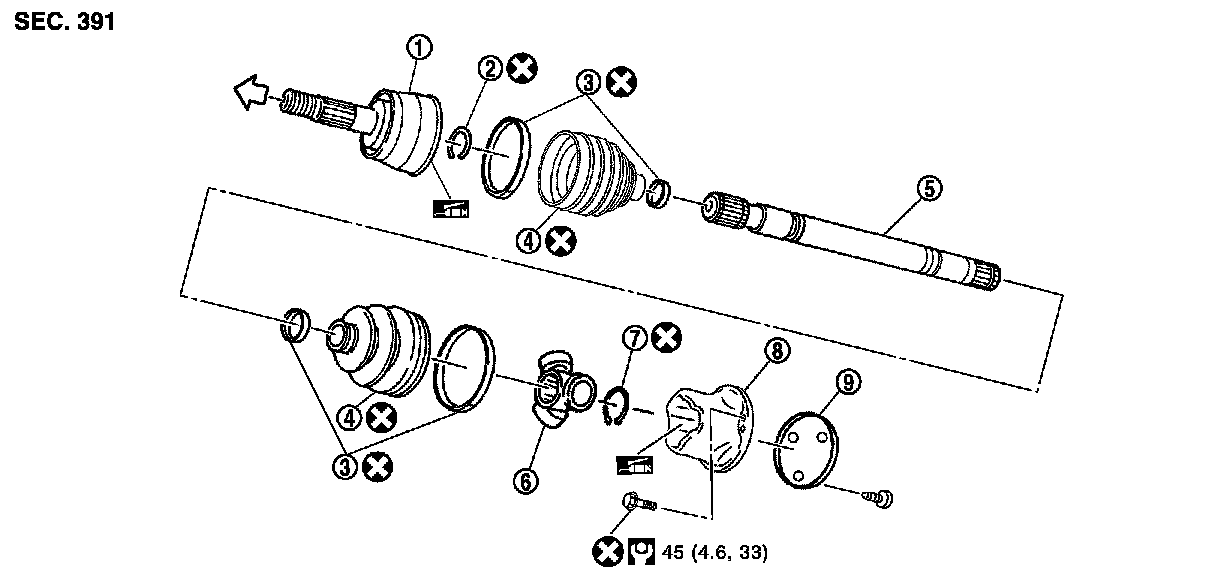

Exploded View





FRONT DRIVE SHAFT


Exploded View


LEFT SIDE
VQ37VHR










VK56VD











RIGHT SIDE
