Home
>>
Infiniti
>>
2011
>>
M37x AWD V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Service and Repair
>>
Removal and Replacement
>>
Front Final Drive F160A
>>

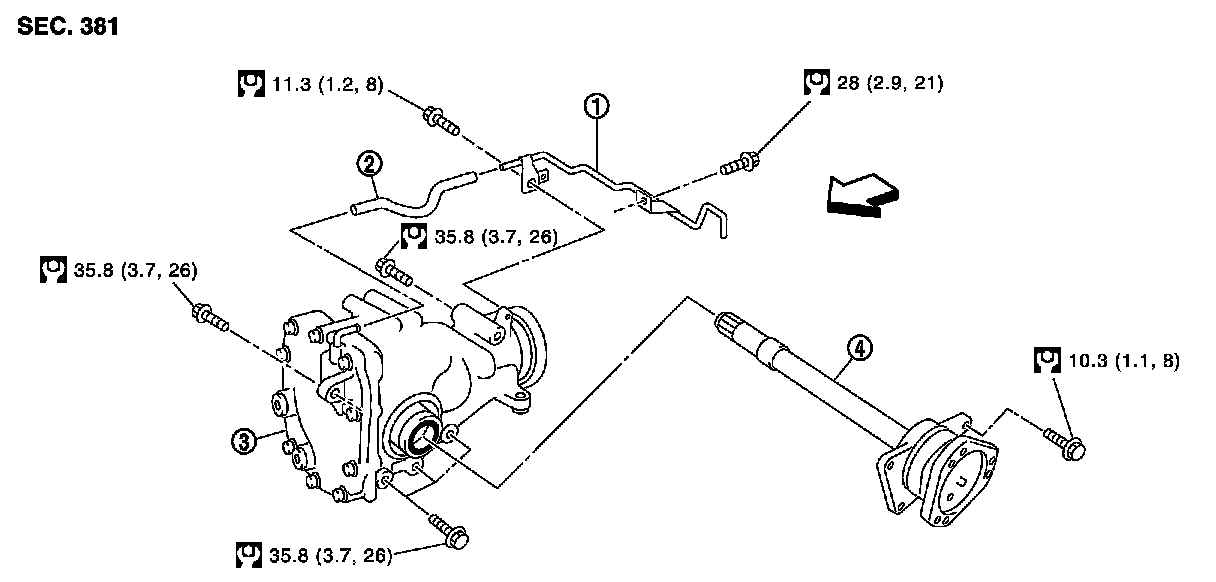

Exploded View
Exploded View

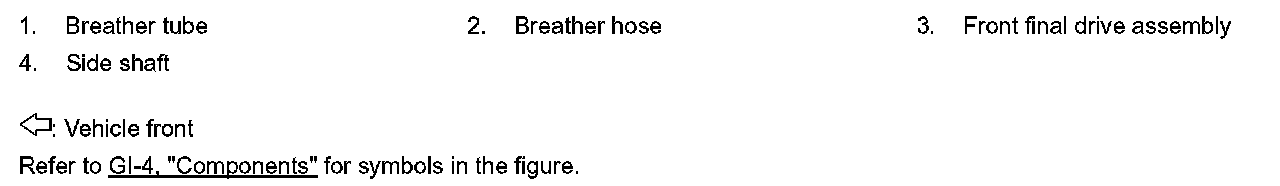

FRONT FINAL DRIVE ASSEMBLY
VQ37VHR VQ37VHR : Exploded View
