Infiniti
>>
2011
>>
M37x AWD V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Service and Repair
>>
Overhaul
>>
Front Final Drive F160A
>>

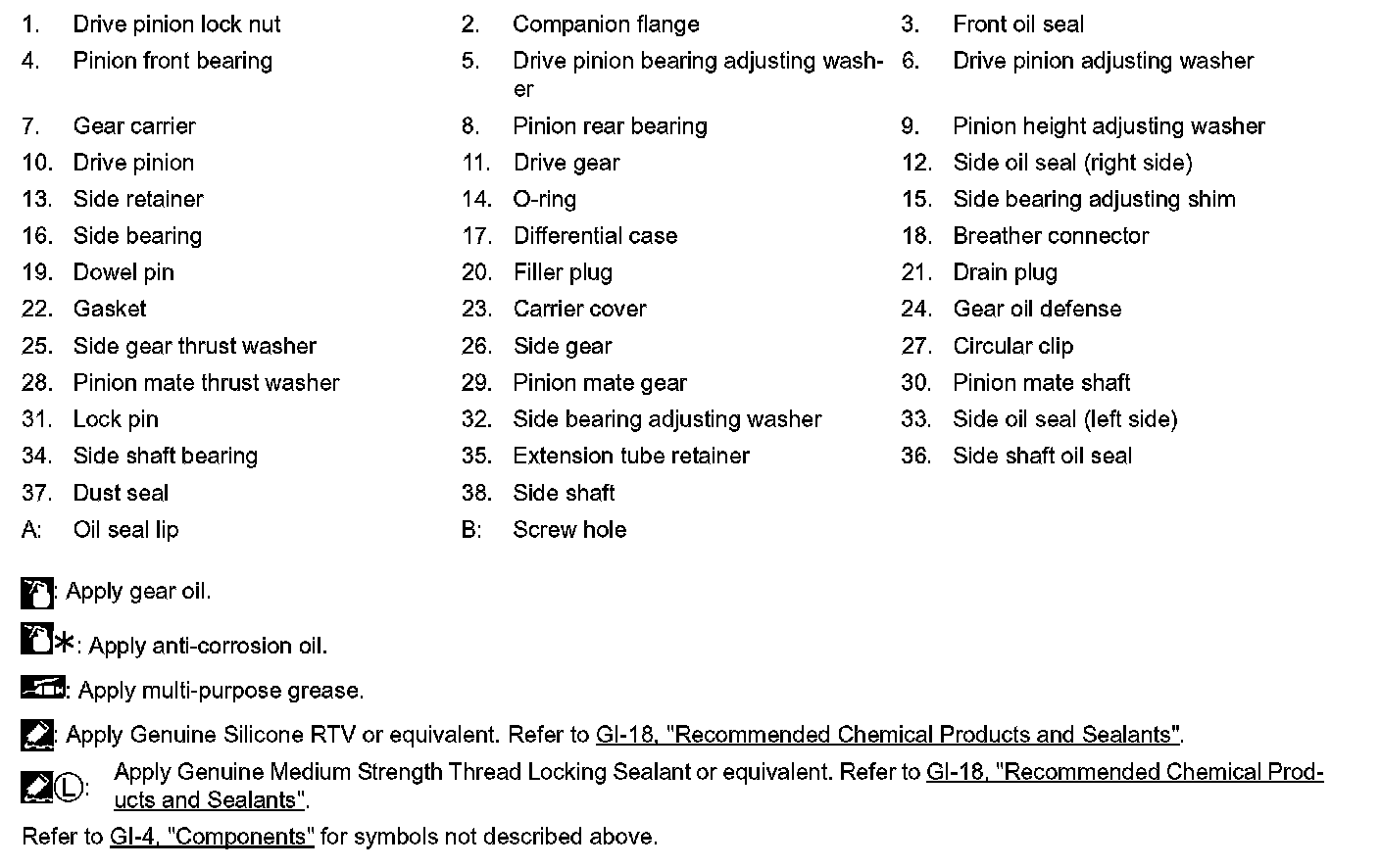

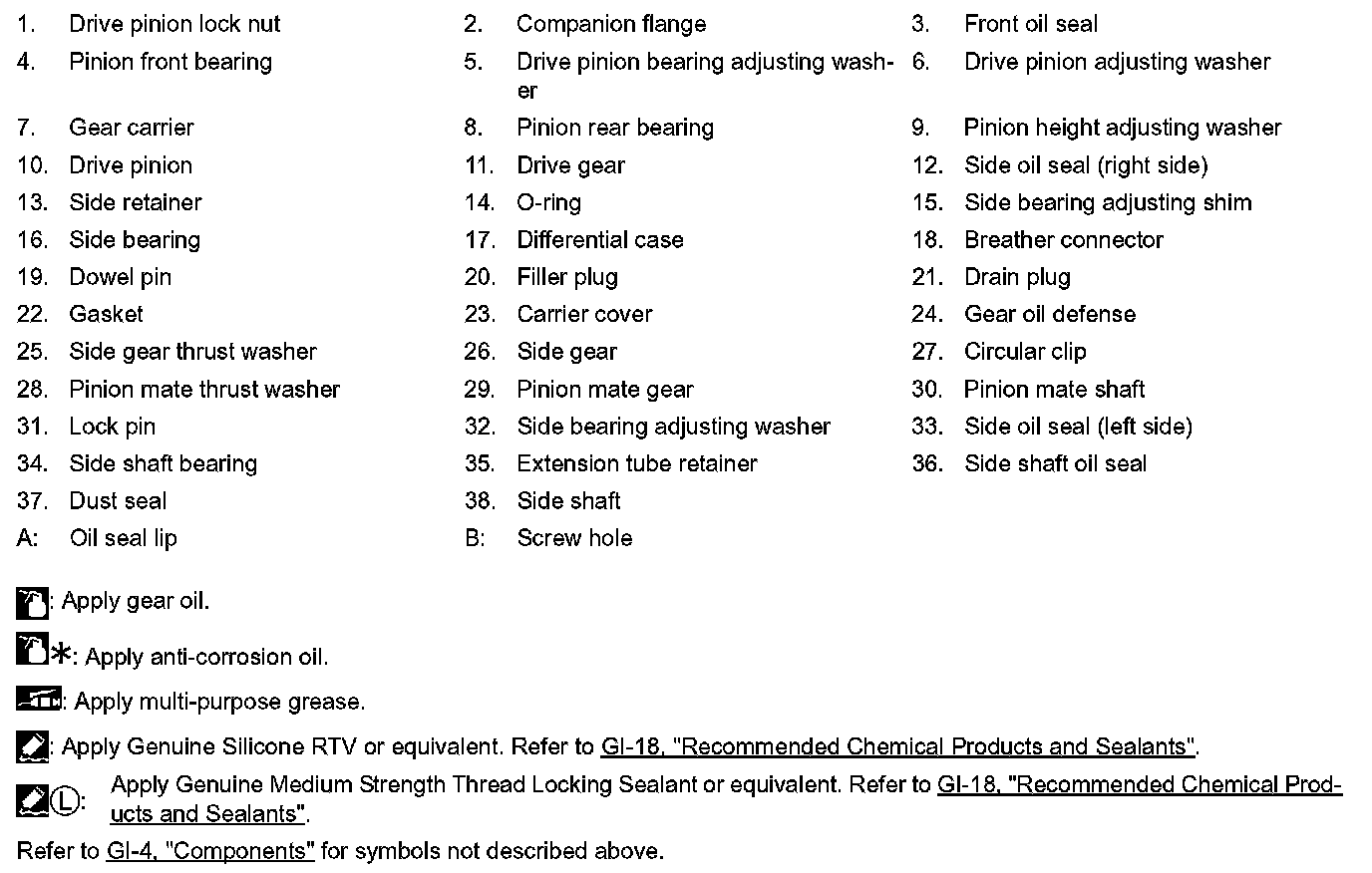

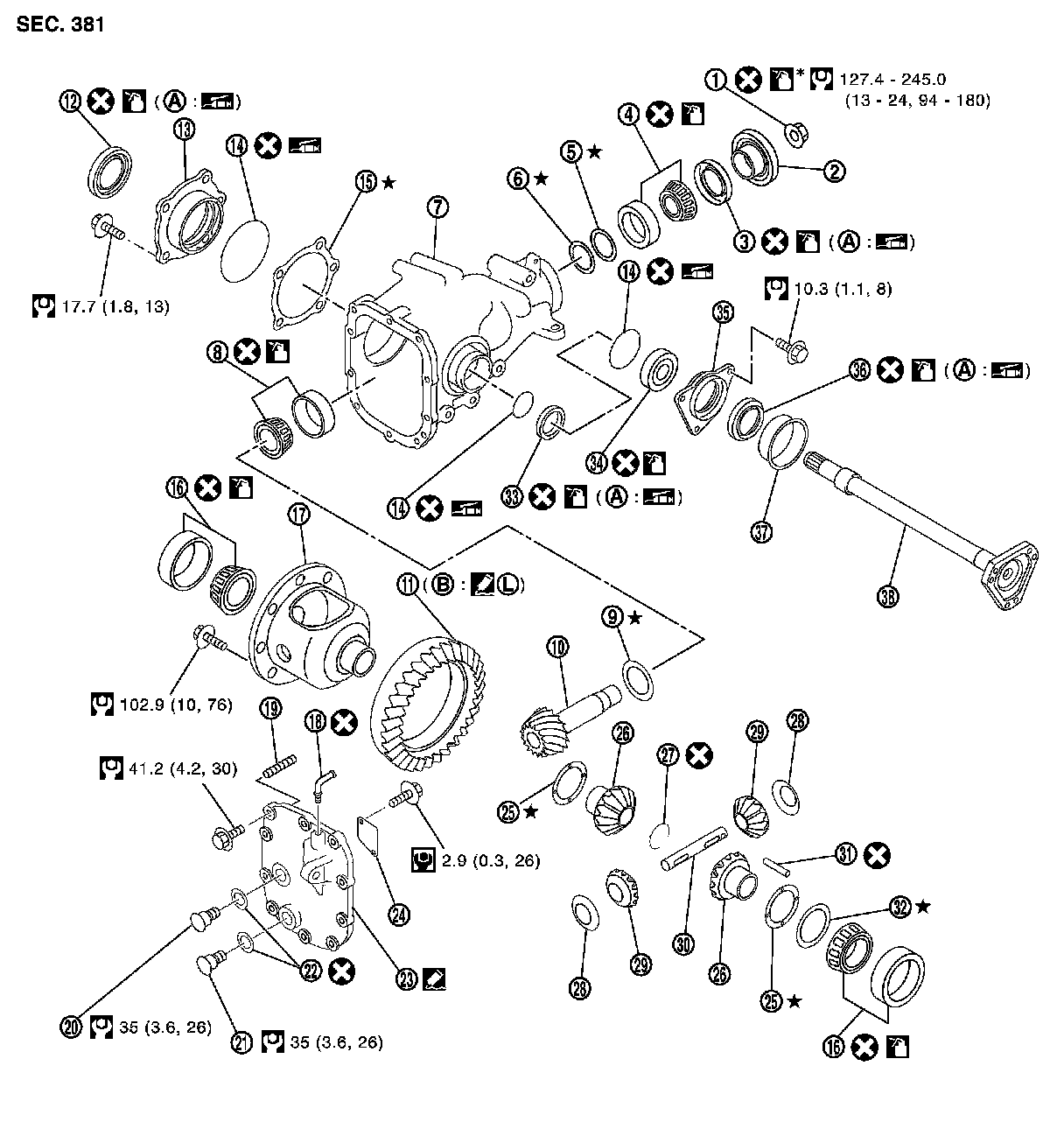

Exploded View
Exploded View
DIFFERENTIAL ASSEMBLY

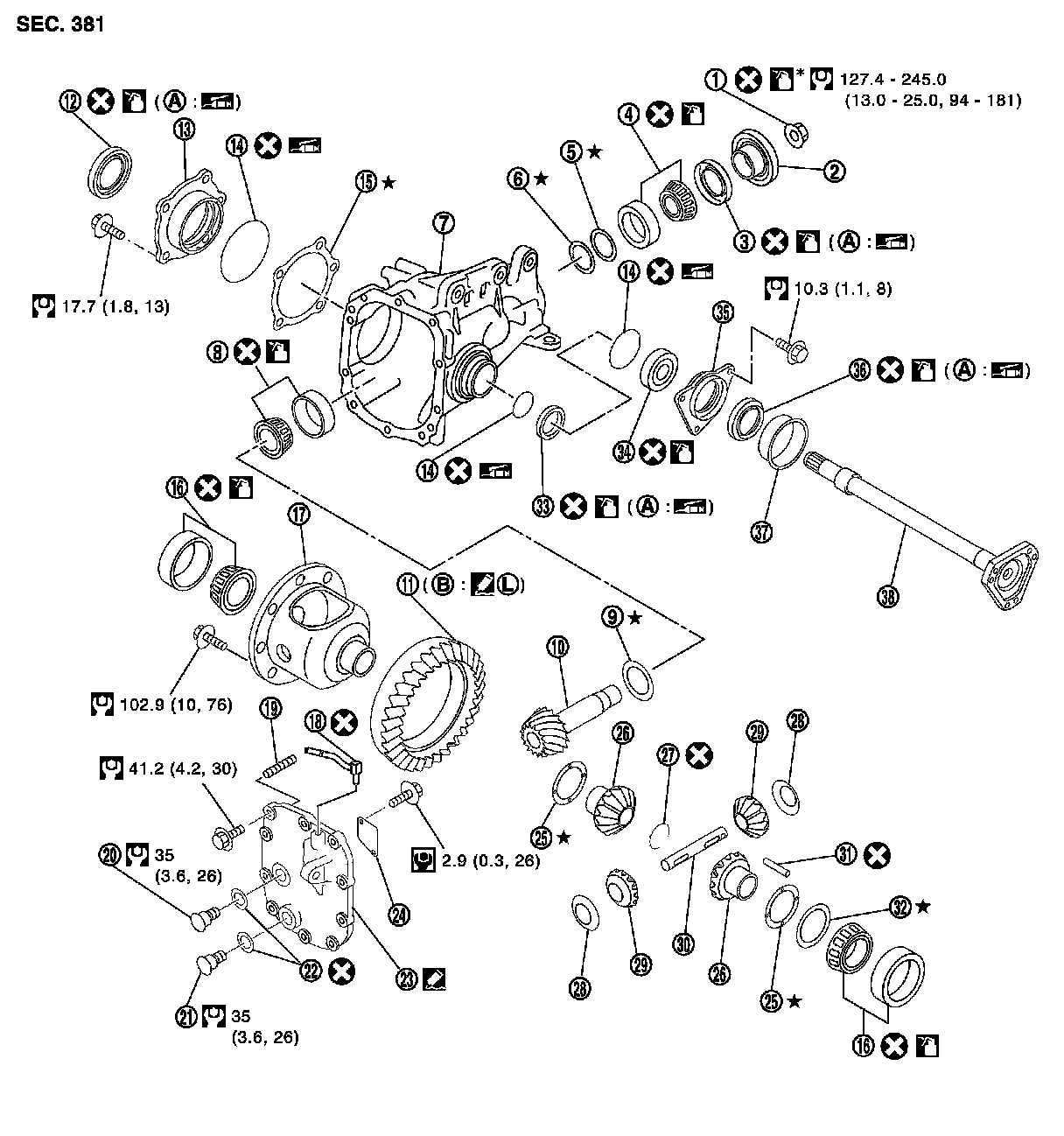

Exploded View
VQ37VHR
VK56VD
