Home >> Infiniti >> 2011 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Transmission Assembly >> Exploded View

Exploded View

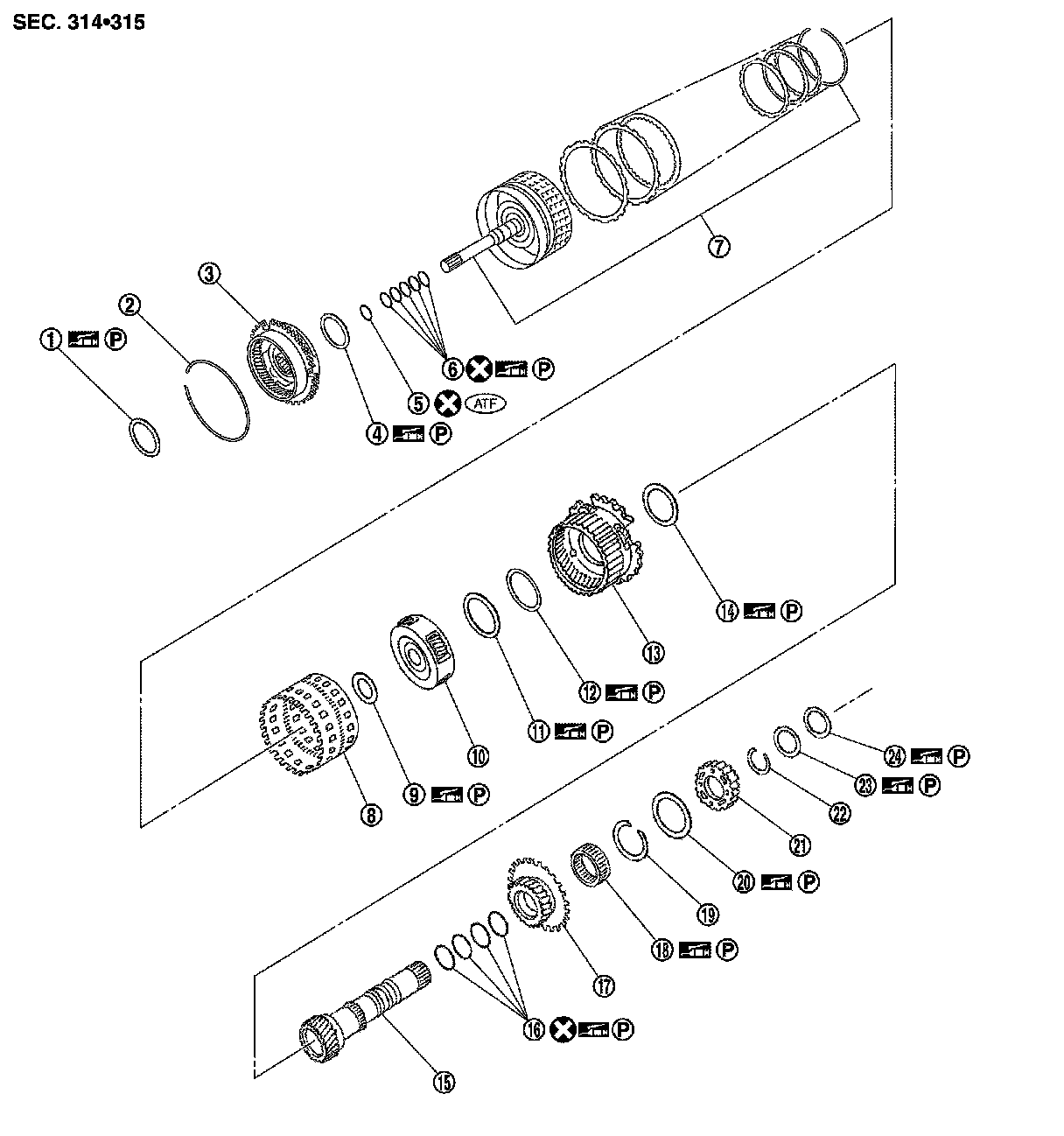

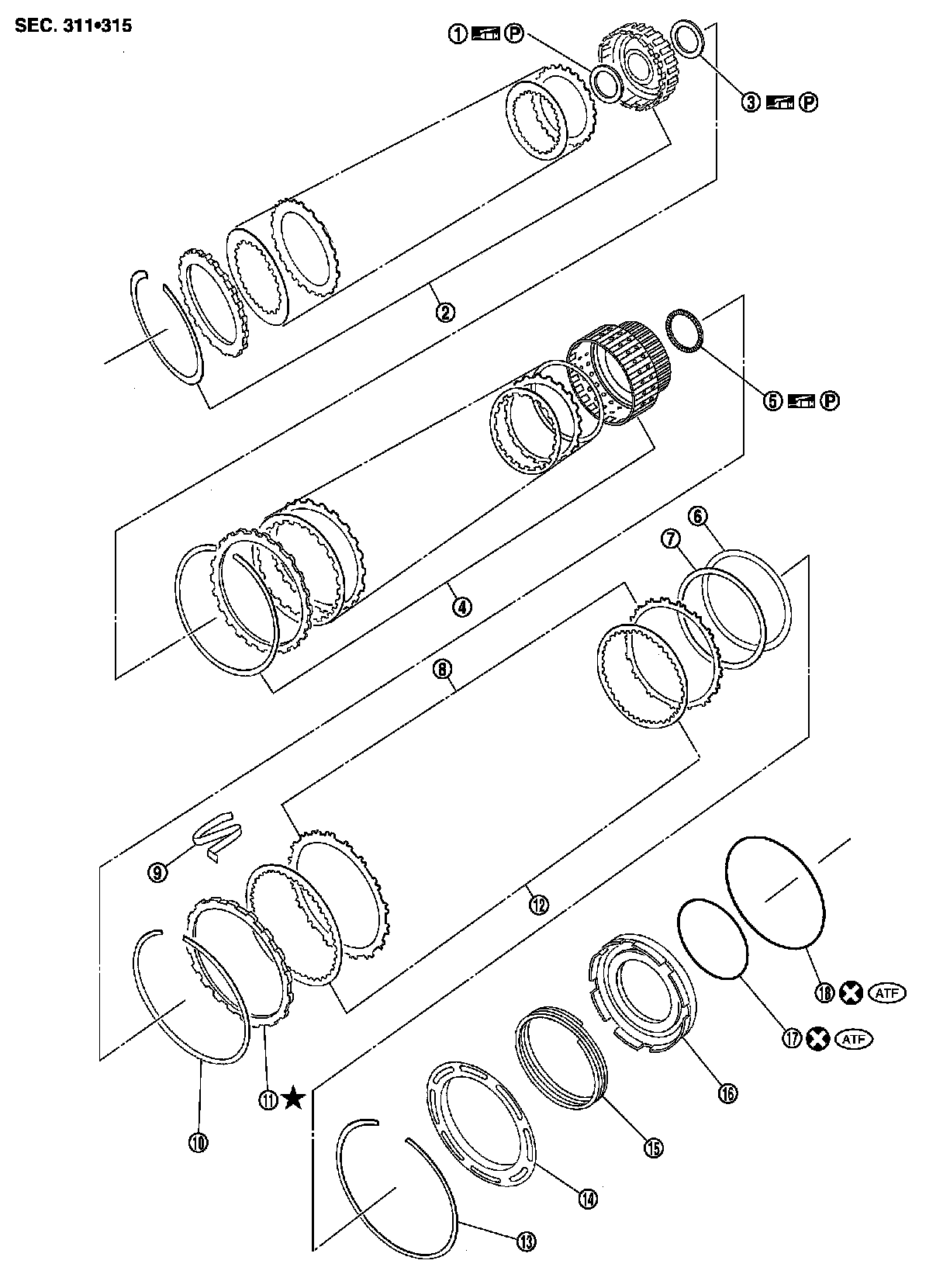

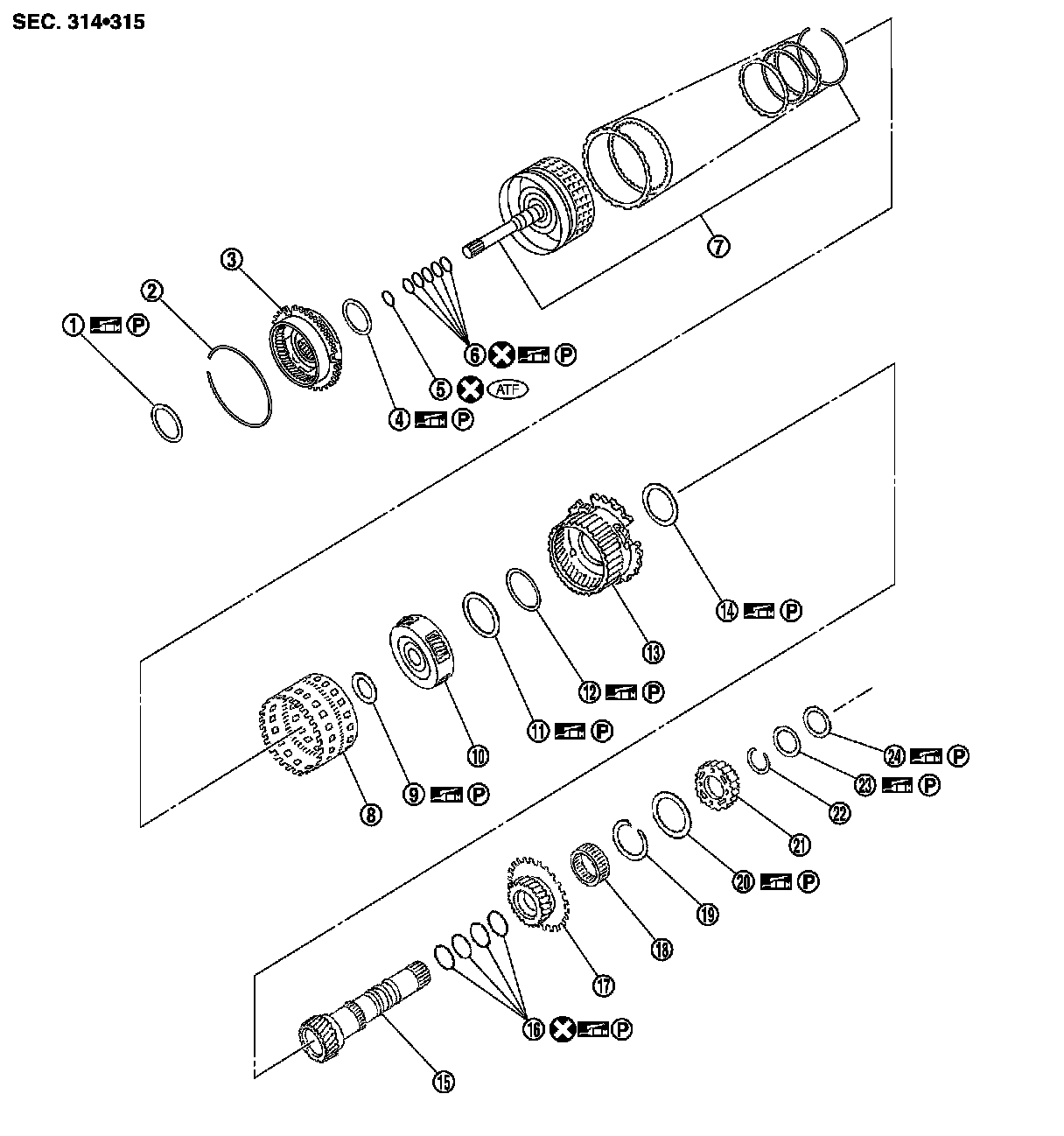

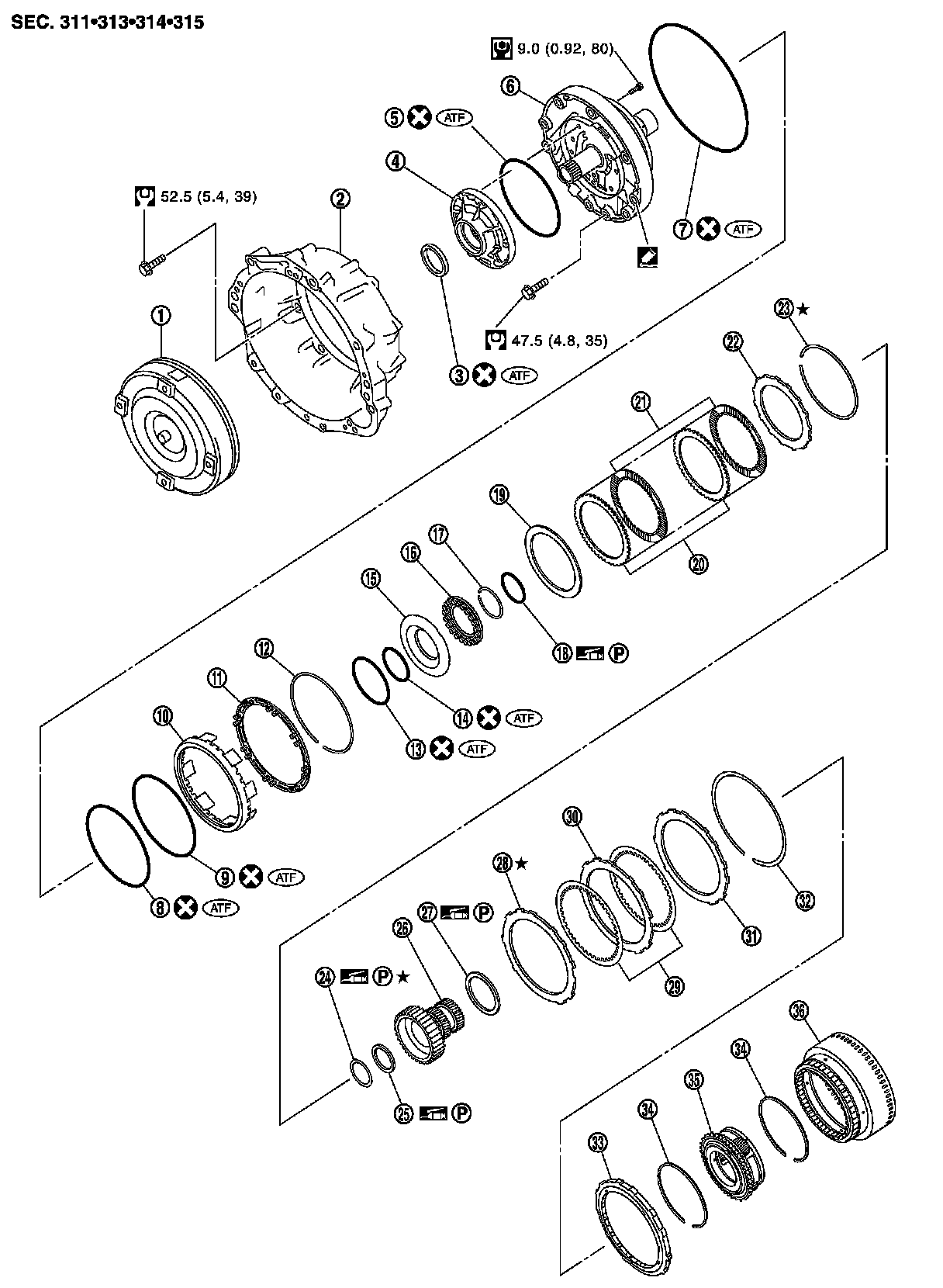

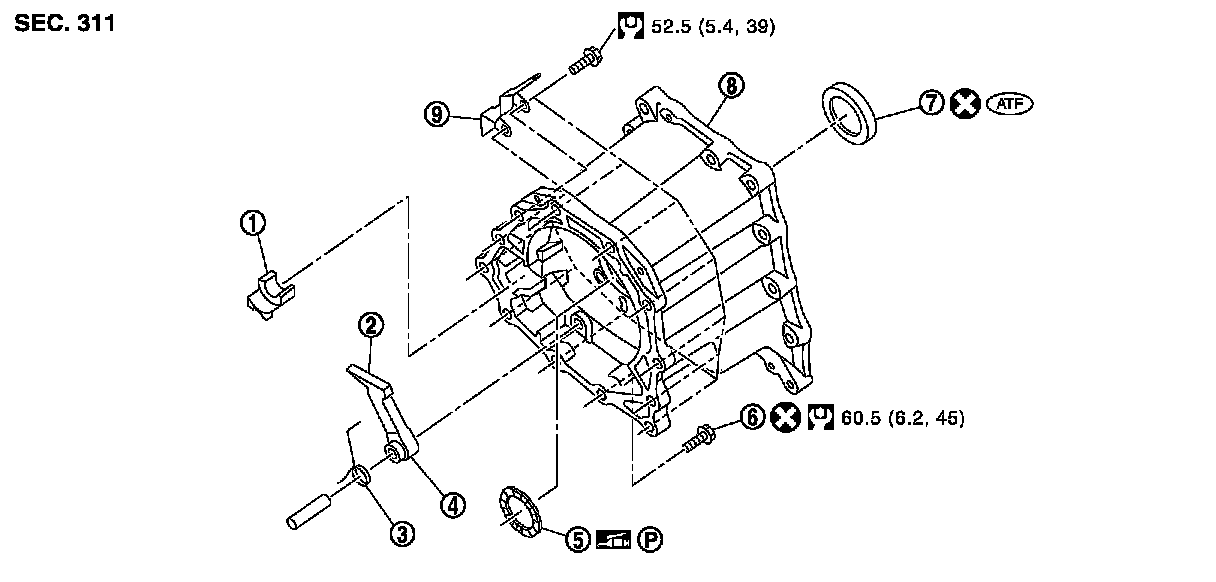

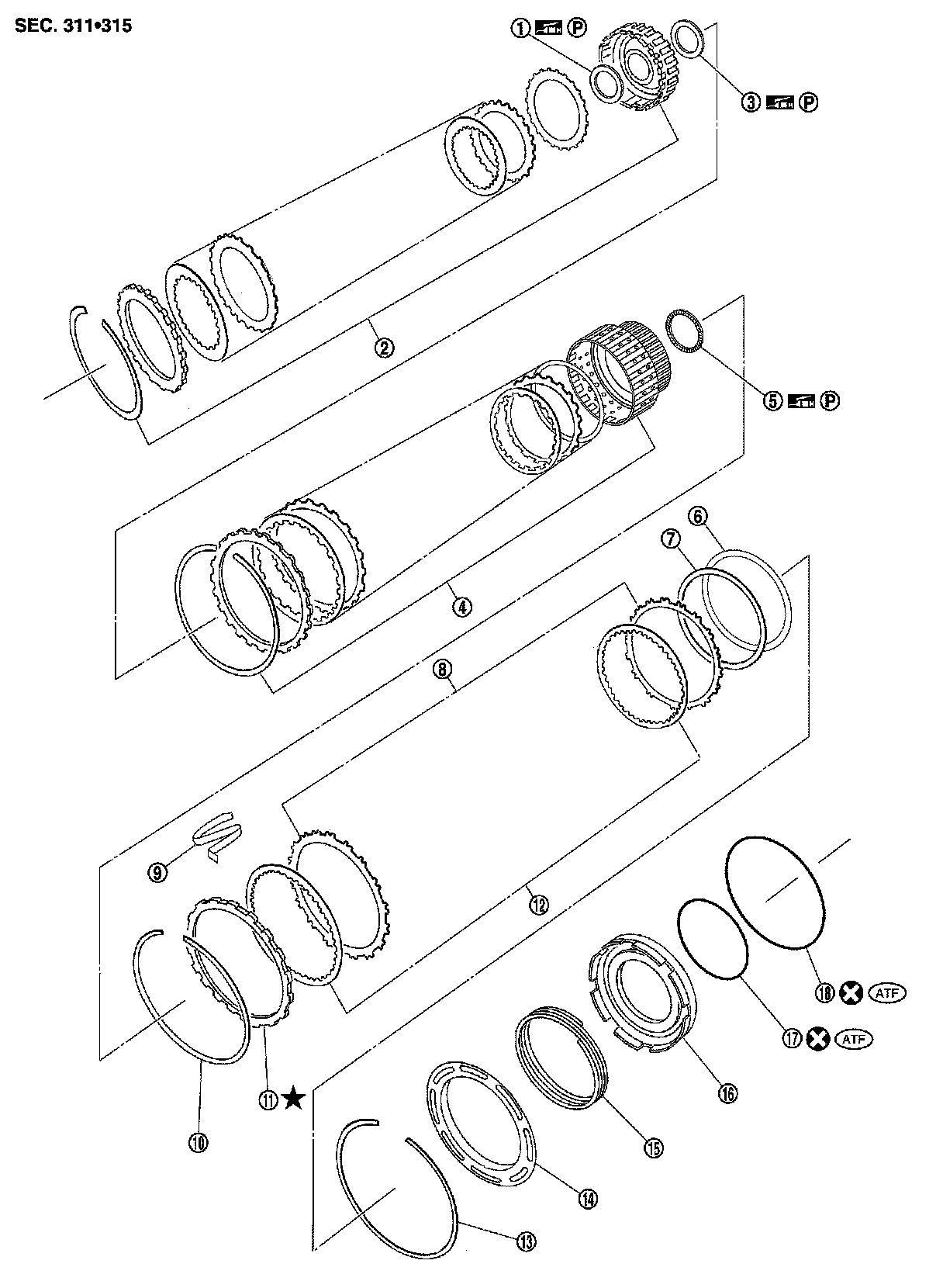

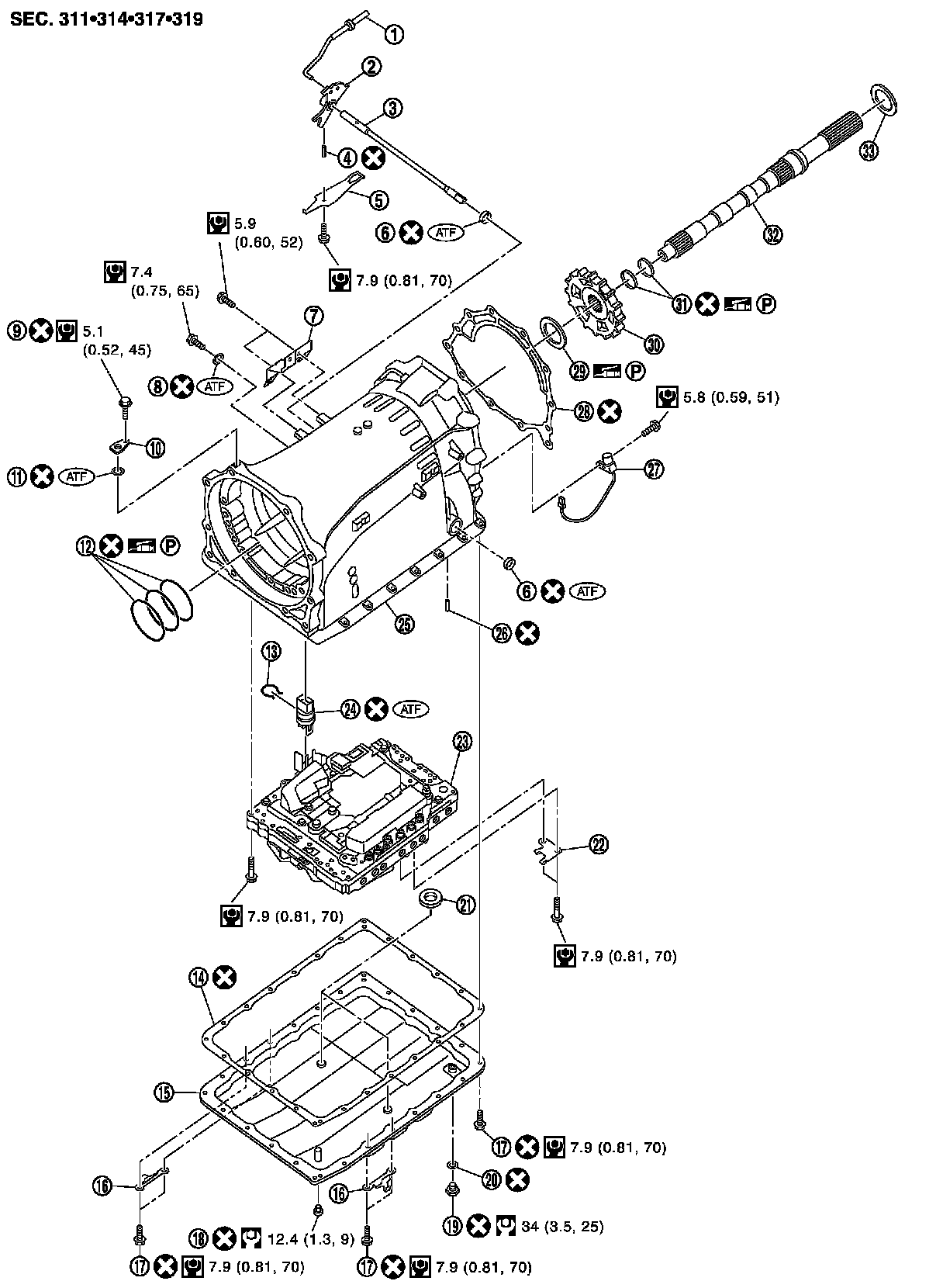

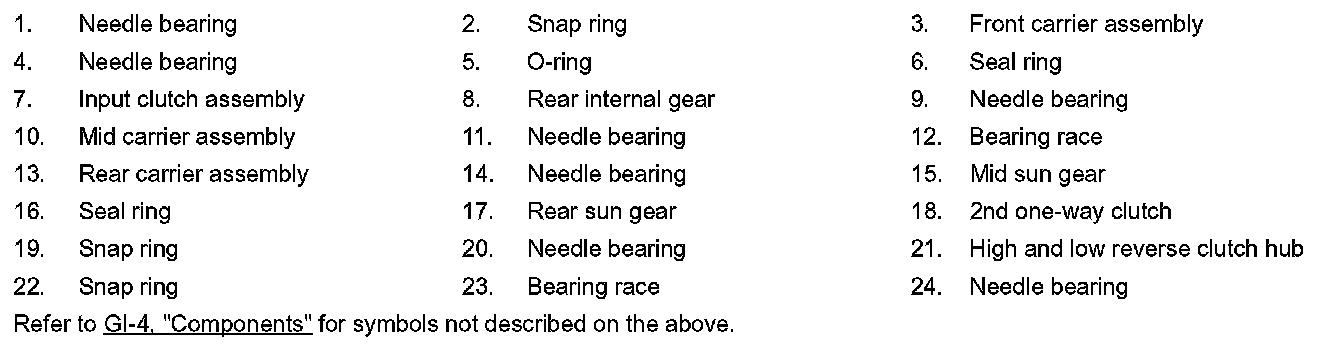

TRANSMISSION ASSEMBLY

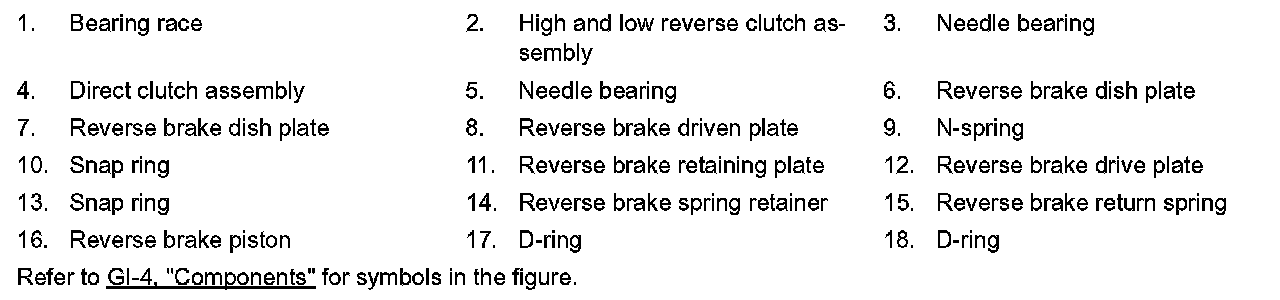

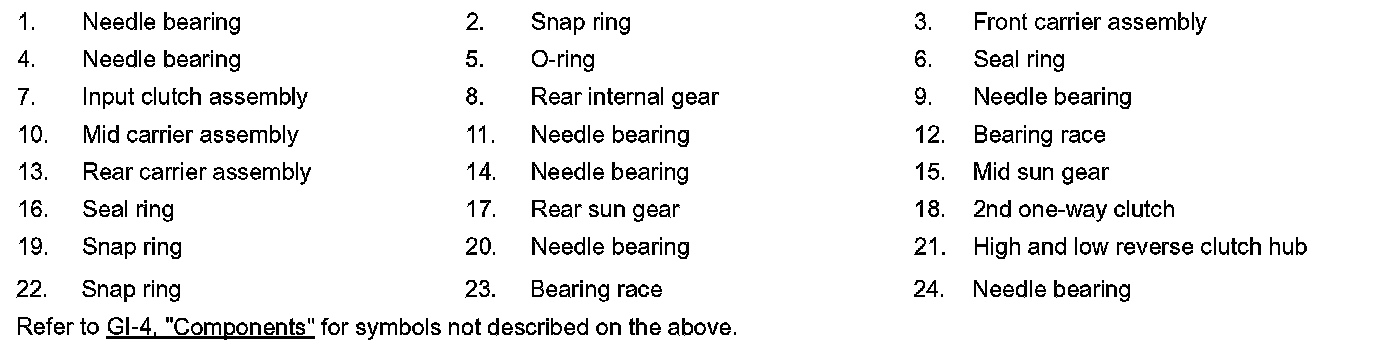

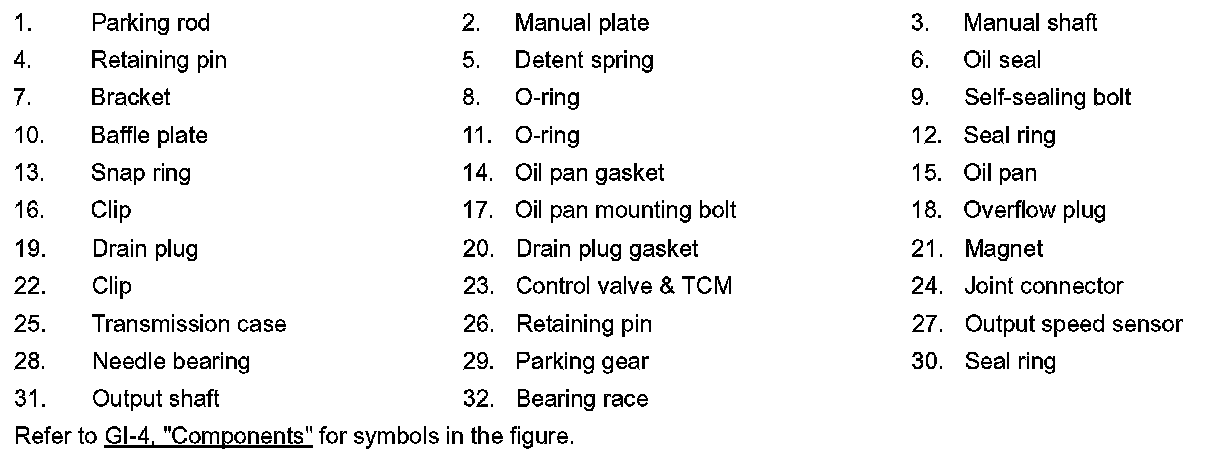

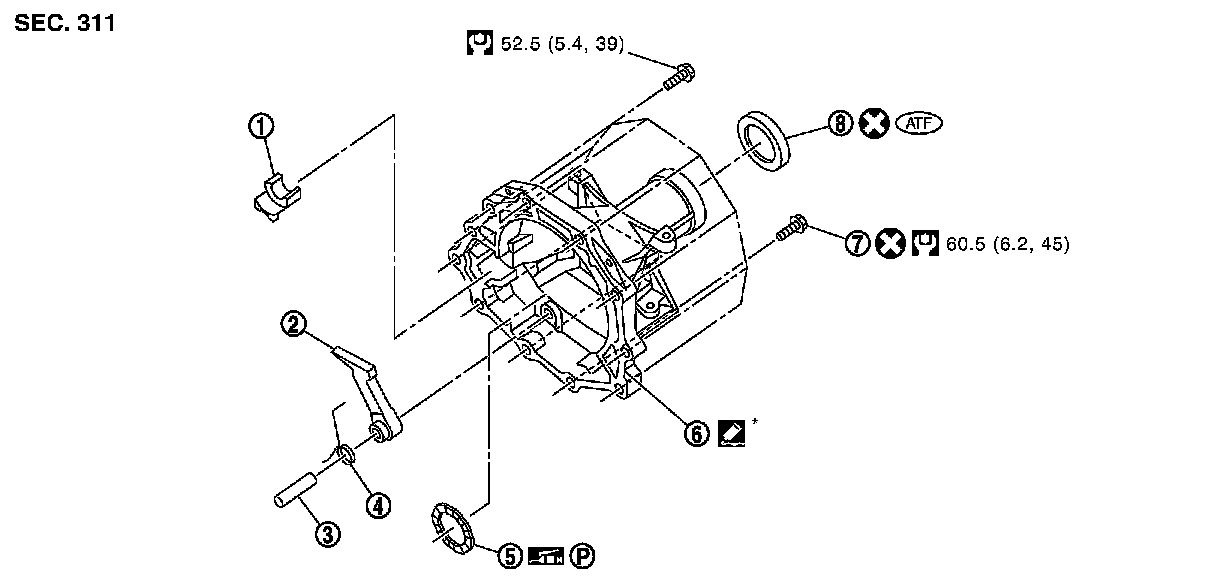

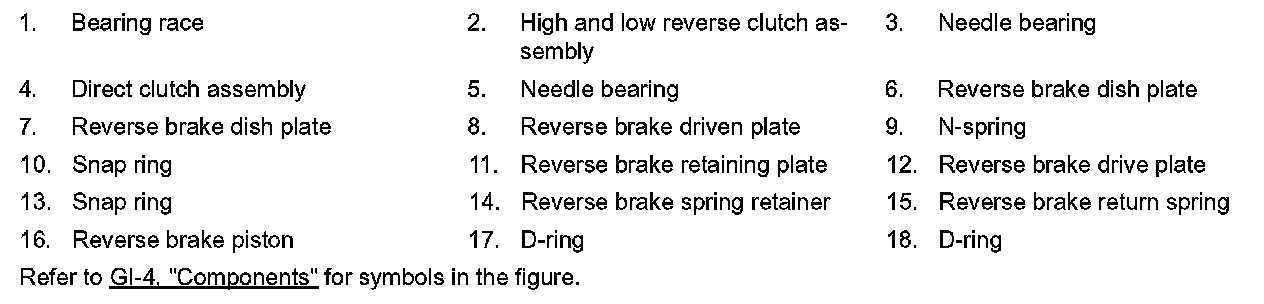

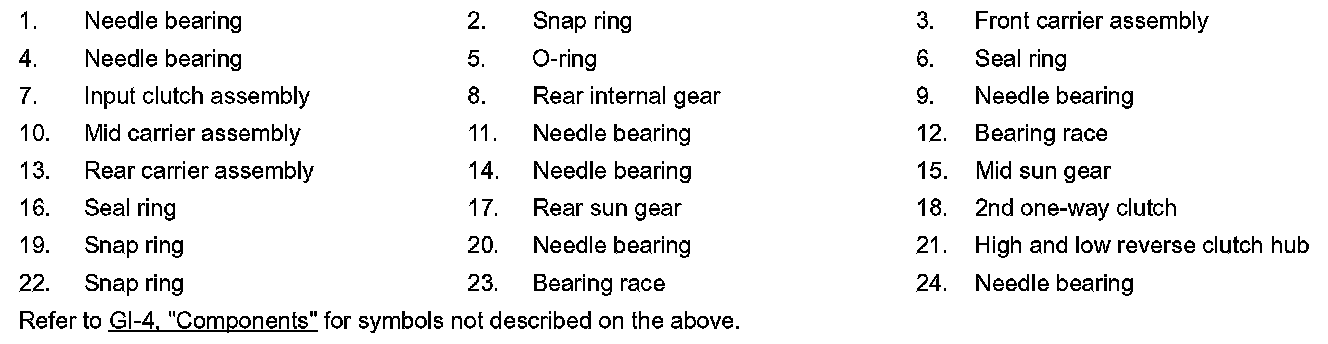

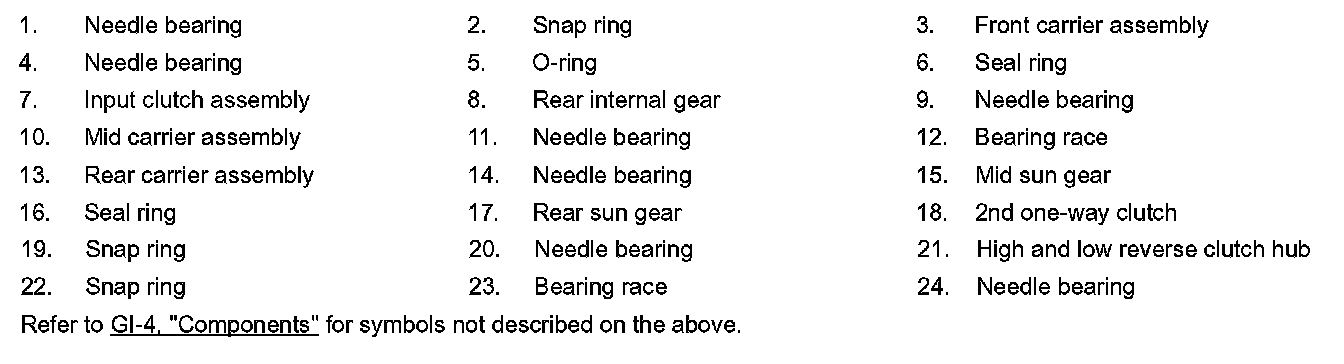

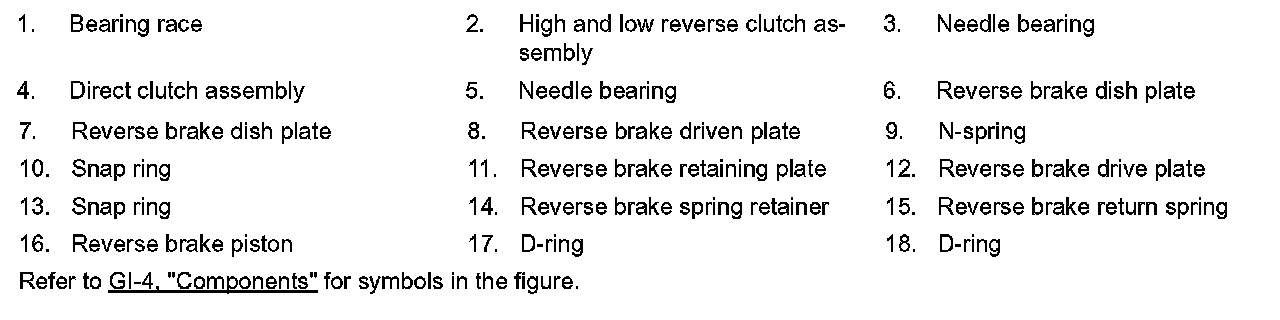

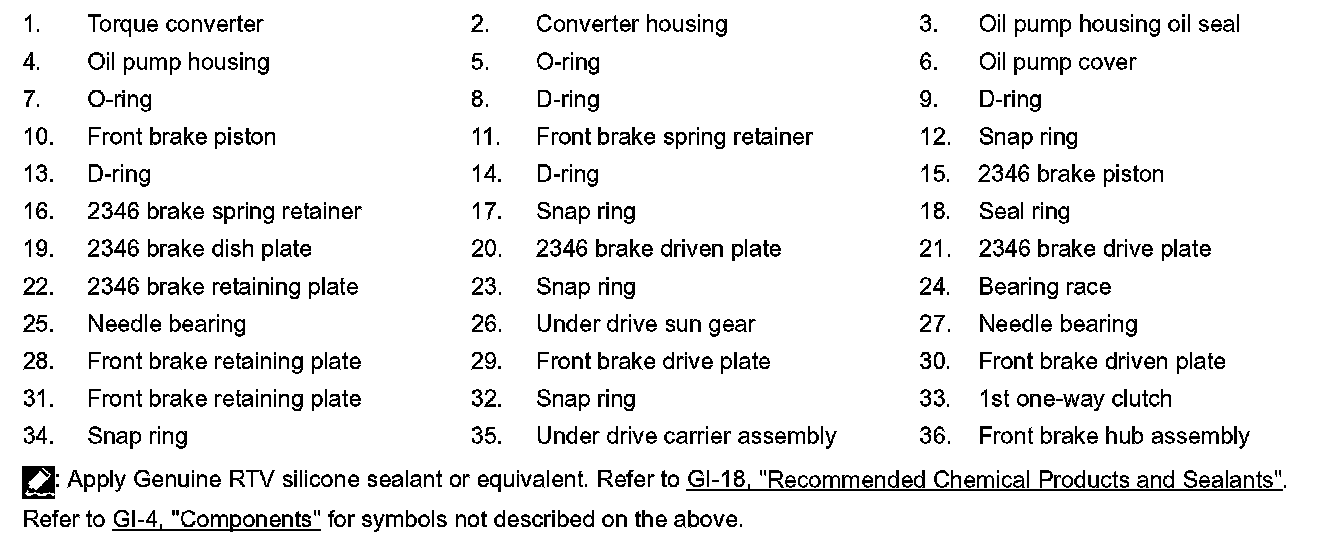

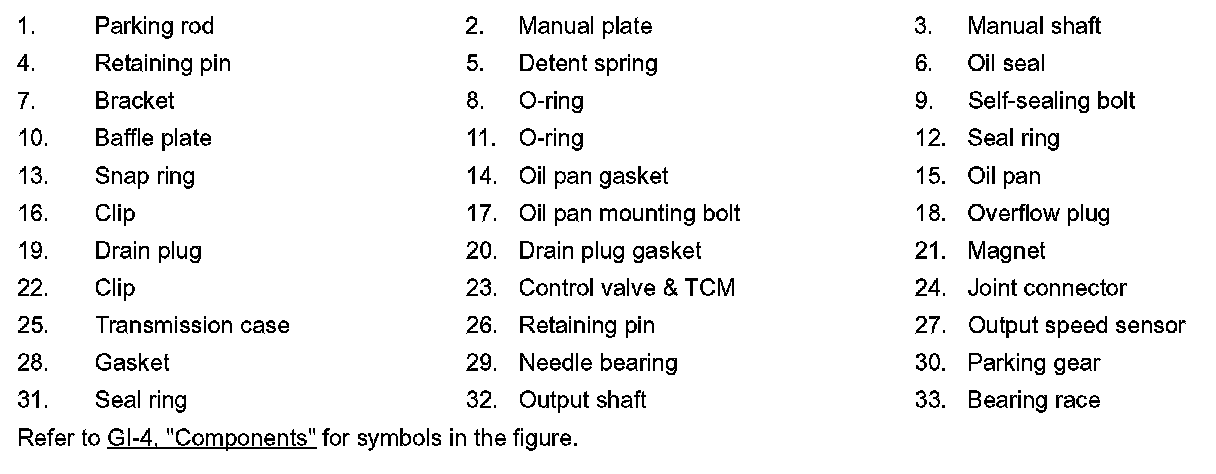

Exploded View


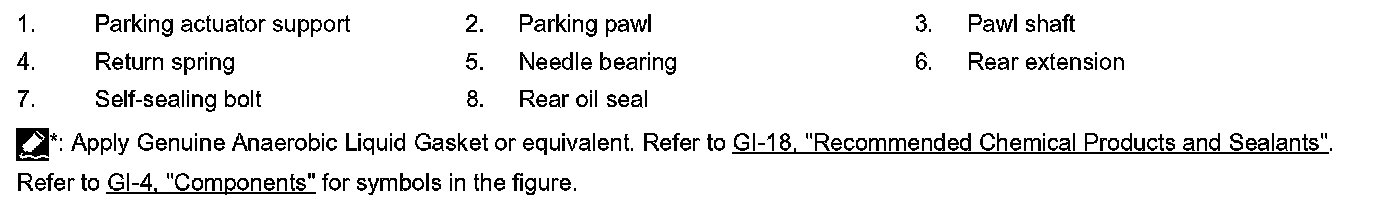

2WD MODELS










TYPE 1










TYPE 2











TYPE 1











TYPE 2































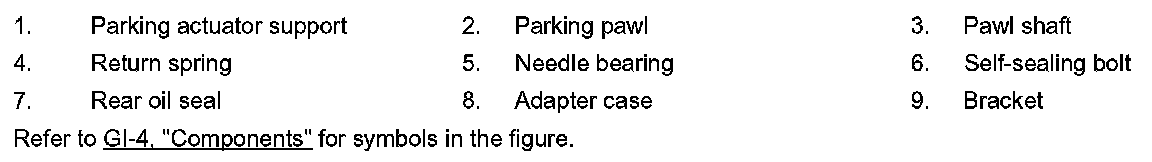

AWD MODELS











TYPE 1











TYPE 2










TYPE 1











TYPE 2
