4WAS Front Control Unit

4WAS FRONT CONTROL UNIT


Reference Value

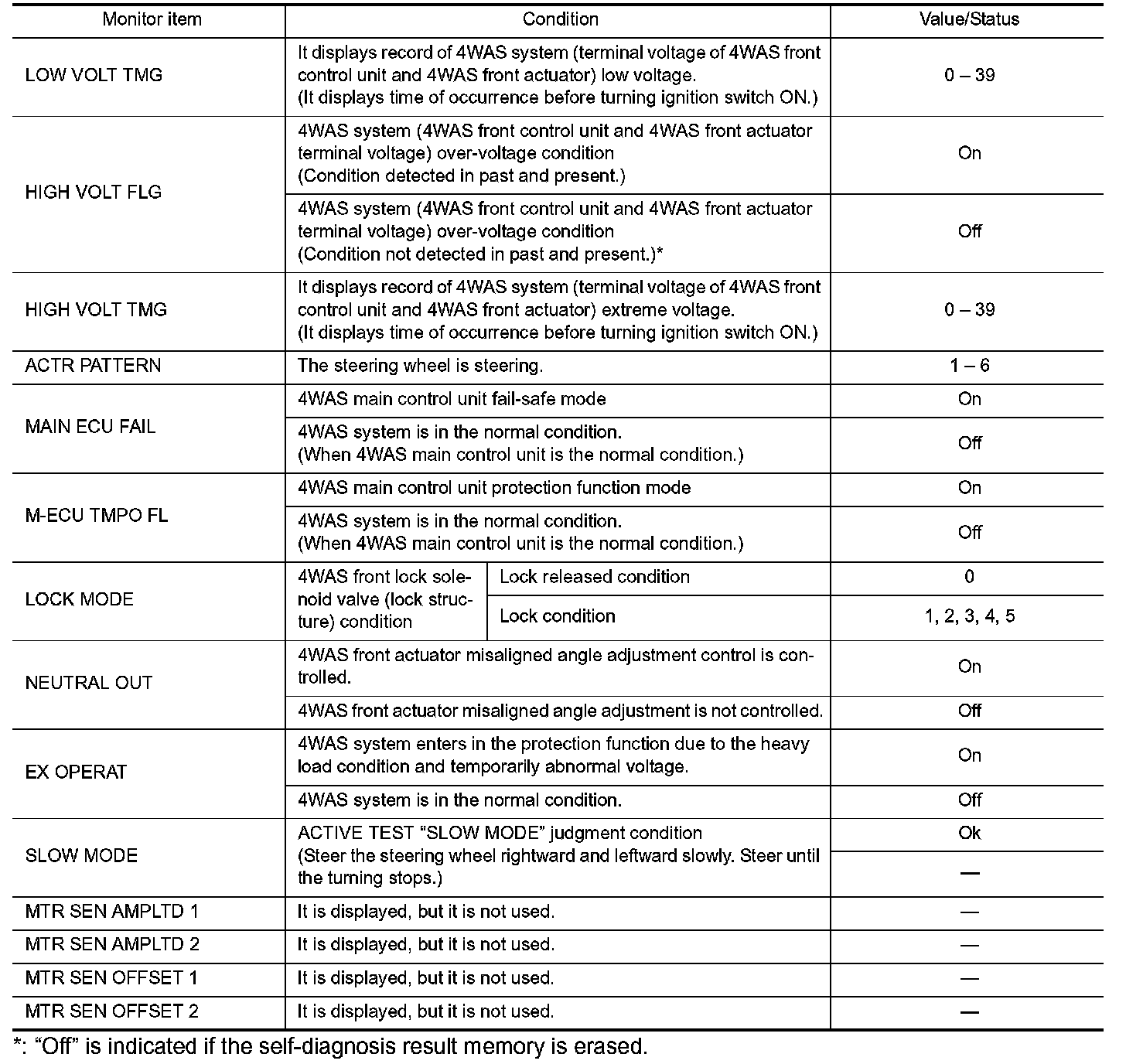

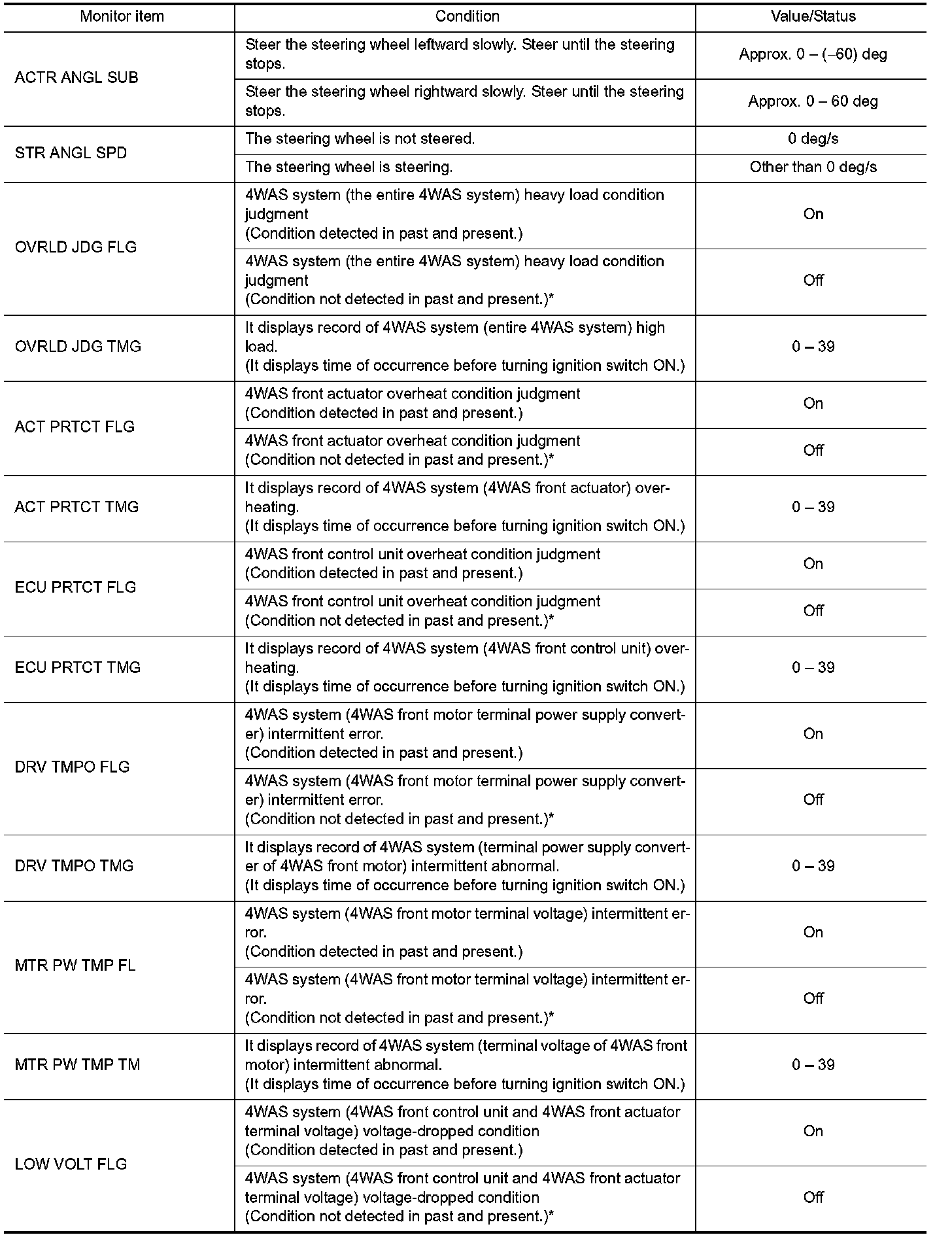

VALUES ON THE DIAGNOSIS TOOL















*: "Off" is indicated if the self-diagnosis result memory is erased.

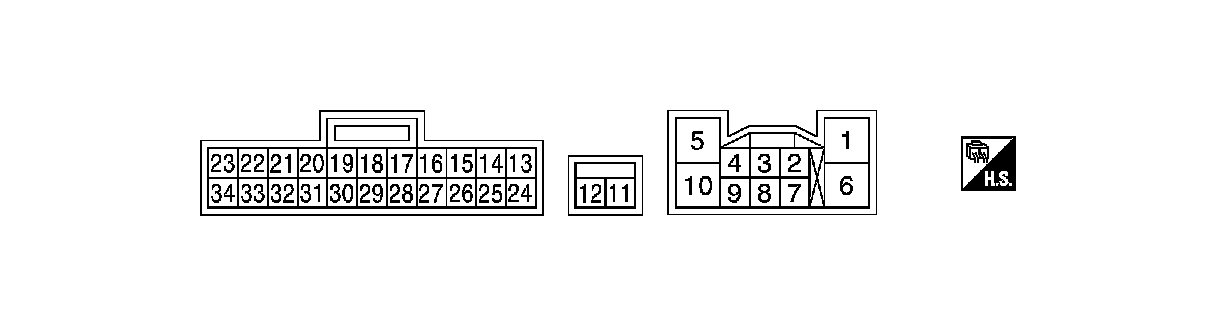

TERMINAL LAYOUT

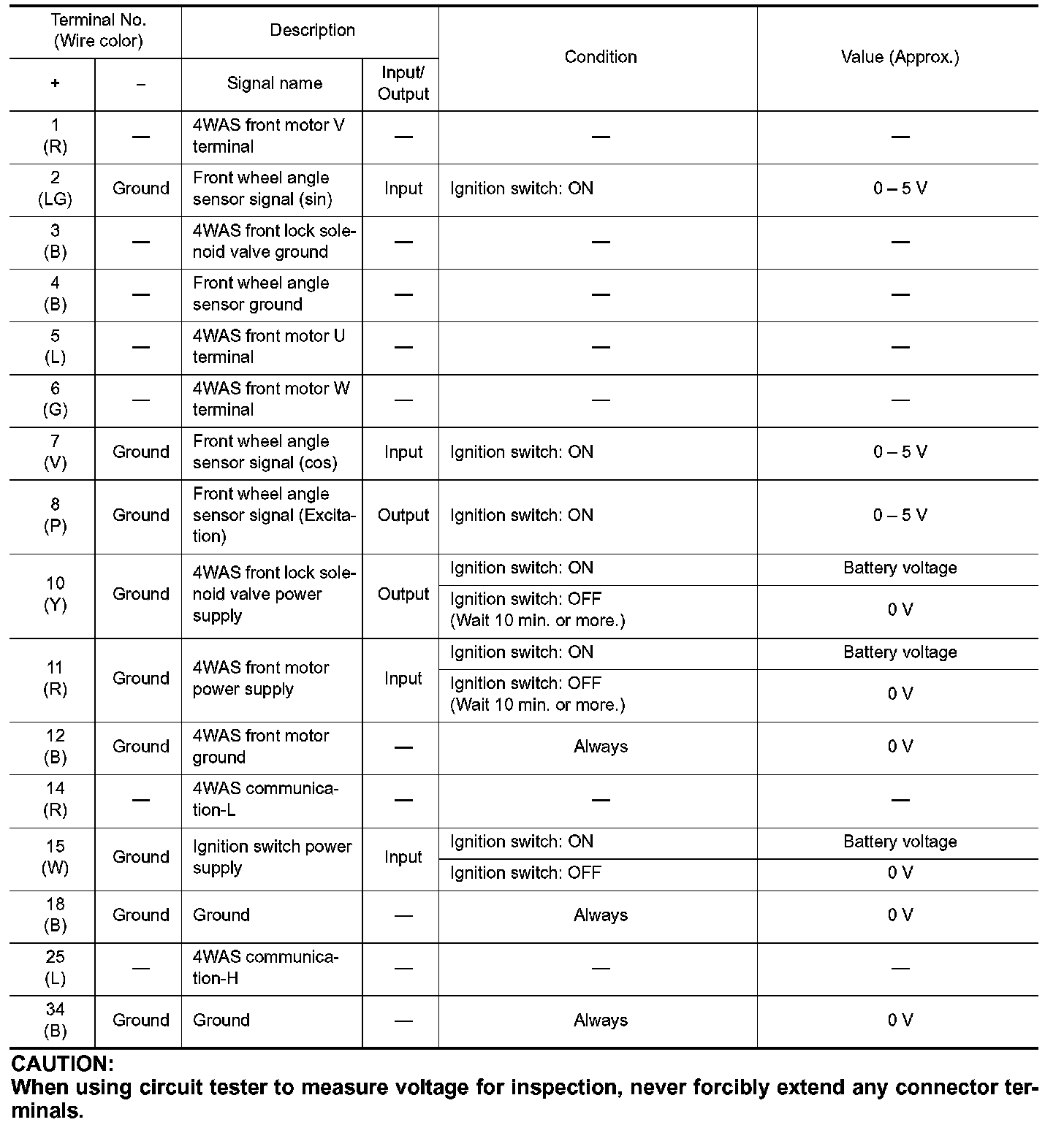

PHYSICAL VALUES






CAUTION:
When using circuit tester to measure voltage for inspection, never forcibly extend any connector terminals.
