Removal And Installation

STARTER MOTOR


VQ37VHR : Removal and Installation (AWD)


Removal
1. Disconnect the battery cable from the negative terminal. Removal And Installation.
2. Remove front undercover. Front Under Cover.
3. Remove road wheel and tire (front LH). Removal And Installation





4. Disconnect steering lower joint (1), and then remove it. Removal And Installation.
5. Remove terminal B nut (A).





6. Disconnect connector S (A).

Arrow: Vehicle Front

7. Remove starter motor mounting bolts (B), using power tools.
8. Remove exhaust mounting bracket. .

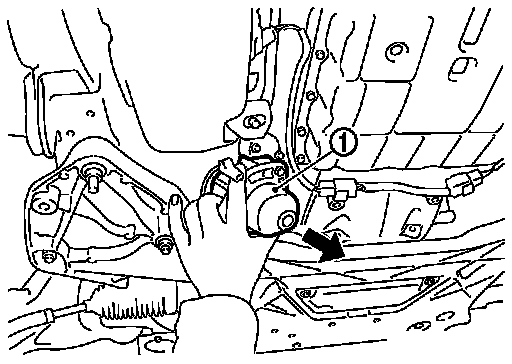

9. Remove starter motor (1) downward from the vehicle.

INSTALLATION
Note the following item, and then install in the reverse order of removal.

CAUTION:
Be sure to tighten terminal B nut carefully.
