Campaign P1218 - Power Window Switch Replacement: Overview
Reference: ITB11-052Date: August 31, 2011
VOLUNTARY SERVICE CAMPAIGN
2011 INFINITI M POWER WINDOW AUTO-UP OPERATION
CAMPAIGN ID# P1218
APPLIED VEHICLES: 2011 M37/56 (Y51)
Check Service Comm to confirm campaign eligibility
INTRODUCTION
Infiniti is conducting this voluntary service campaign on certain 2011 M37 and M56 vehicles. Due to a manufacturing irregularity of the power window switches, the power window auto function may stop working. If this should occur, the other power window functions will continue to work correctly. To remedy this potential condition, Infiniti will replace the power window switches at no charge for parts or labor.
IDENTIFICATION NUMBER
Infiniti has assigned identification number P1218 to this campaign. This number must appear on all communications and documentation of any nature dealing with this campaign.
DEALER RESPONSIBILITY
Dealers are to repair vehicles falling within range of this campaign that enter the service department. This includes vehicles purchased from private parties, vehicles presented by transient (tourists) owners, and vehicles in a dealer's inventory.
SERVICE PROCEDURE
1. Replace the power window switch on all 4 doors.
^ Refer to the Service Manual, section PWC, for replacement information.
2. Initialize each power window as follows:
a. Turn the ignition switch ON (keep the transmission in Park and the hand brake applied).
b. Operate the power window switch to fully open the window.
c. Pull UP and continue to pull UP on the power window switch to fully close the window.
d. Continue pulling the power window switch UP for 2 seconds after glass stops at fully closed position.
e. Check that auto-up function operates normally.
3. Check the Anti-Pinch function as follows:
a. Fully open the door window.
b. Hold a piece of wood in the window opening near the fully closed position.
c. Close the door window completely with the AUTO-UP function.
d. Check/confirm the glass lowers approximately 150 mm (5.9 in) after contacting the wood and then stops.
CAUTION:
Do not check Anti Pinch function with hands or other body parts because they may be pinched.

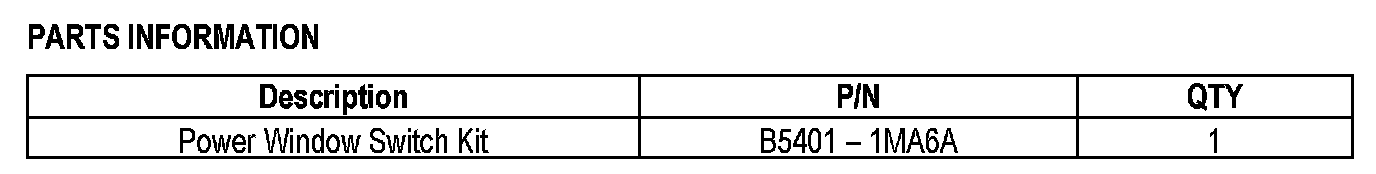

PARTS INFORMATION

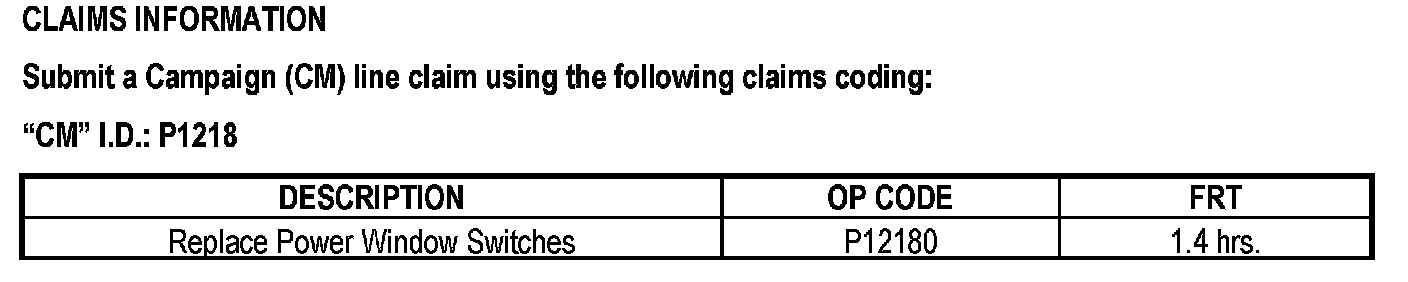

CLAIMS INFORMATION
