Blower Motor Switch: Description and Operation

VENTILATION SYSTEM


System Description


OUTLINE
Ventilation system is controlled by A/C auto amp. For details of automatic air conditioner system, .

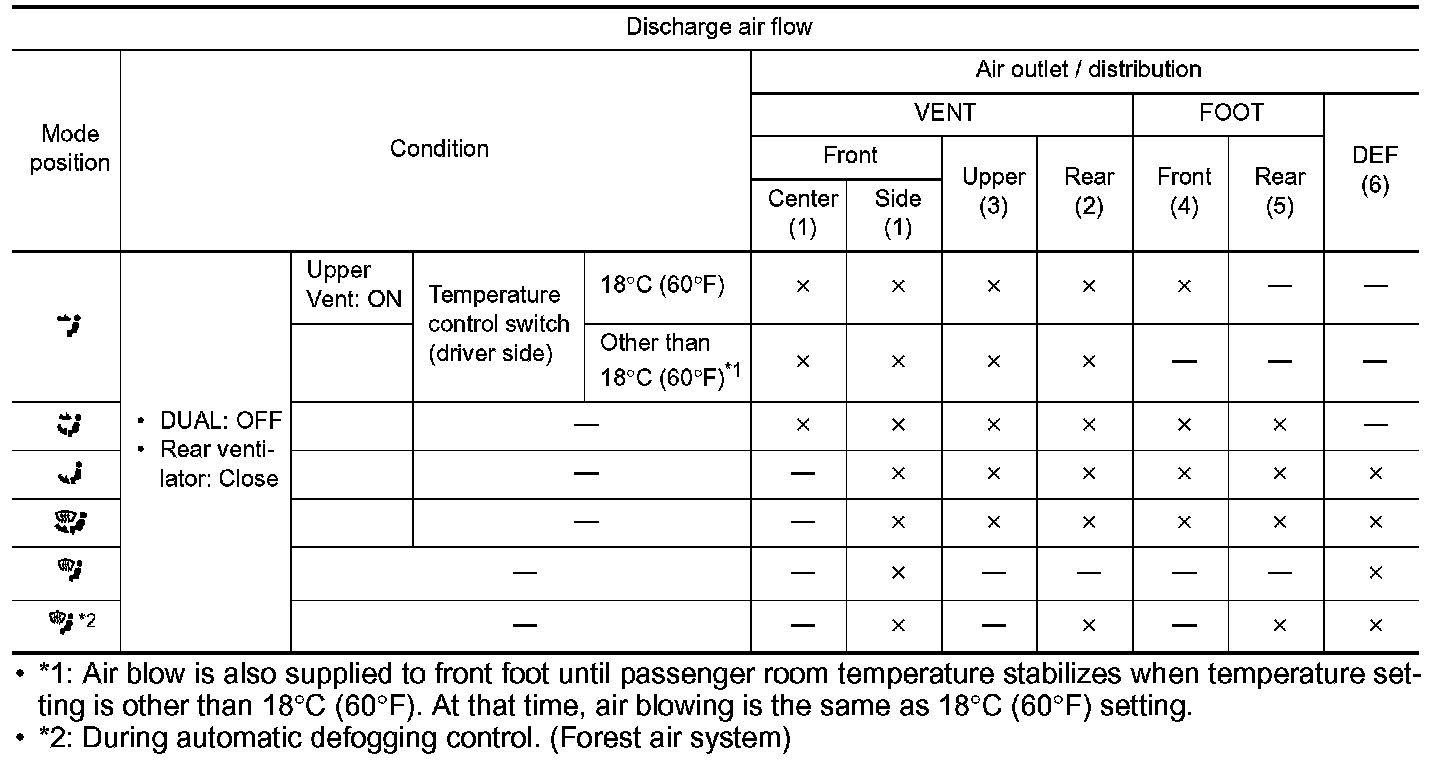

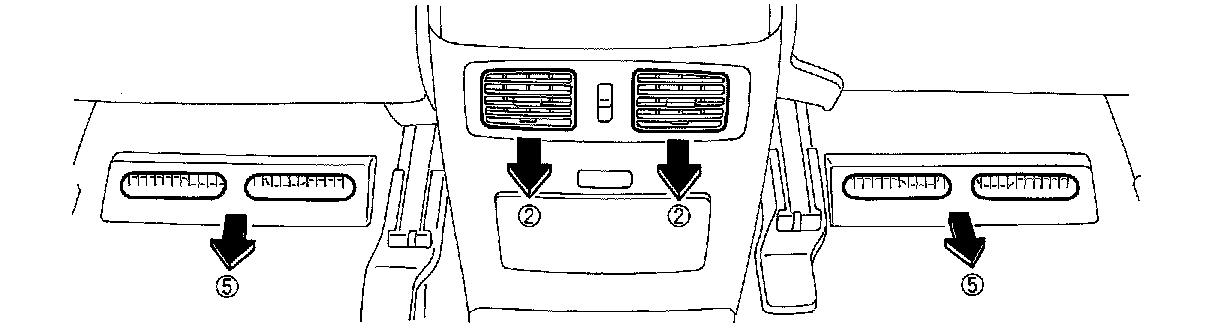

AIR FLOW

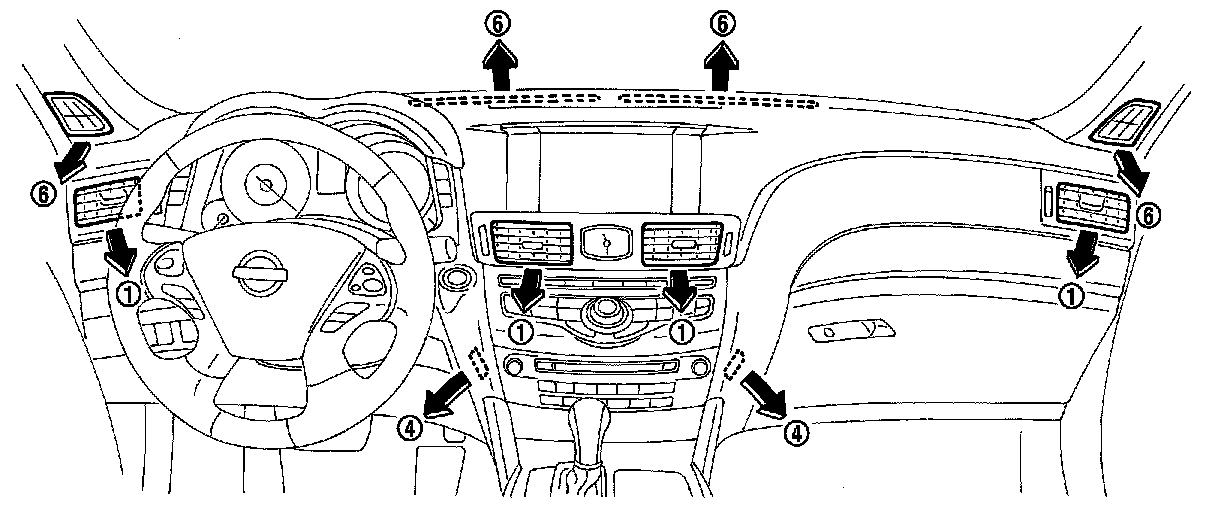

Front

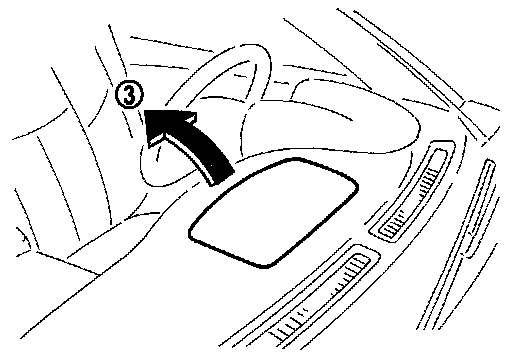

Upper










- *1: Air blow is also supplied to front foot until passenger room temperature stabilizes when temperature setting is other than 18�C (60�F). At that time, air blowing is the same as 18�C (60�F) setting.
- *2: During automatic defogging control. (Forest air system)
